Q Media press
When the cut dust of the media and other dusts accumulate between the media holder and the platen, it could
cause the risks that the transfer of the media could not be performed properly or such dusts stick to the nozzles
and this could interfere the proper drawings. You are recommended to clean it frequently.
Q Media sensor ("Cleaning the media sensor" P. 4-4 of the Operation Manual)
Two media sensors are provided: one above the platen on the rear surface of the equipment and another on the
bottom surface of the head. If the dusts and ink accumulate on the media sensor, it could cause false detection
of the media. Wipe off the sensors with soft cloth or cotton rods.
Cleaning the media sensor at the bottom surface
of the heads.
1 Move the carriage to the left.
• Move it with reference to Step 1, P.4-16 of the Operation
Manual.
2 Open the maintenance cover.
• Remove the 4 screws and open the maintenance cover.
3 Clean the media sensor.
• Wipe off the dusts and stuck ink with soft cloth or cotton
rods.
Media sensor on the head
For the cleaning of the media sensors, never use the solvent.
When the sensor is heavily stained, wipe off with a cloth soaked in the water-
diluted neutral detergent.

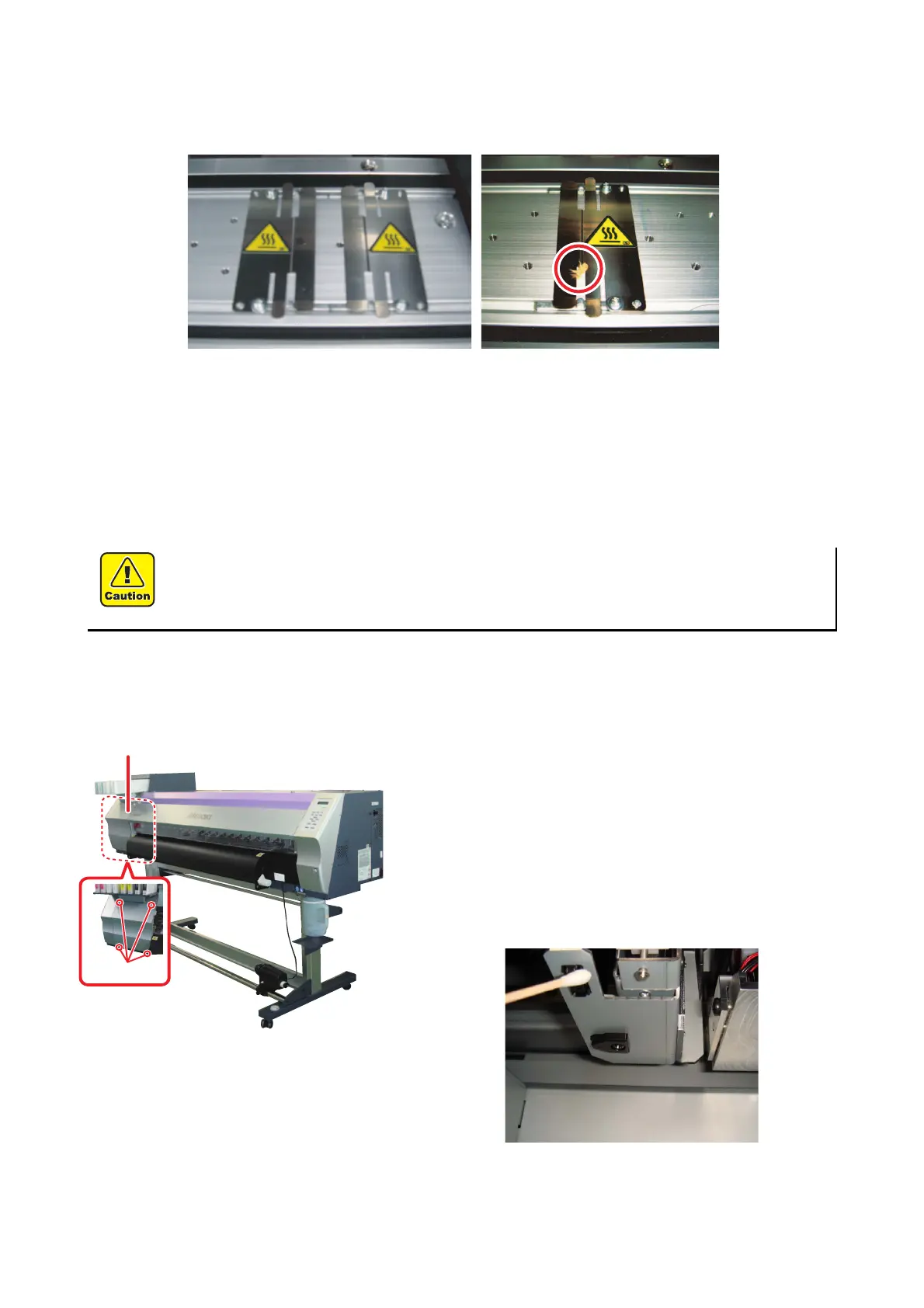

Media press Media press with dust
Maintenance
cover
Screws
