Mimosa Backhaul Mounting & Grounding
Copyright © 2014 Mimosa Page 61
Slide the Pole Mount over the top of the pole as shown in the diagram, rotate the mount around the pole as3.
needed, and then tighten the bolts on the opposite side of the mount to secure. If the top of the pole is
obstructed or inaccessible, disassemble the other side of the Pole Mount and then reassemble it around the
pole.

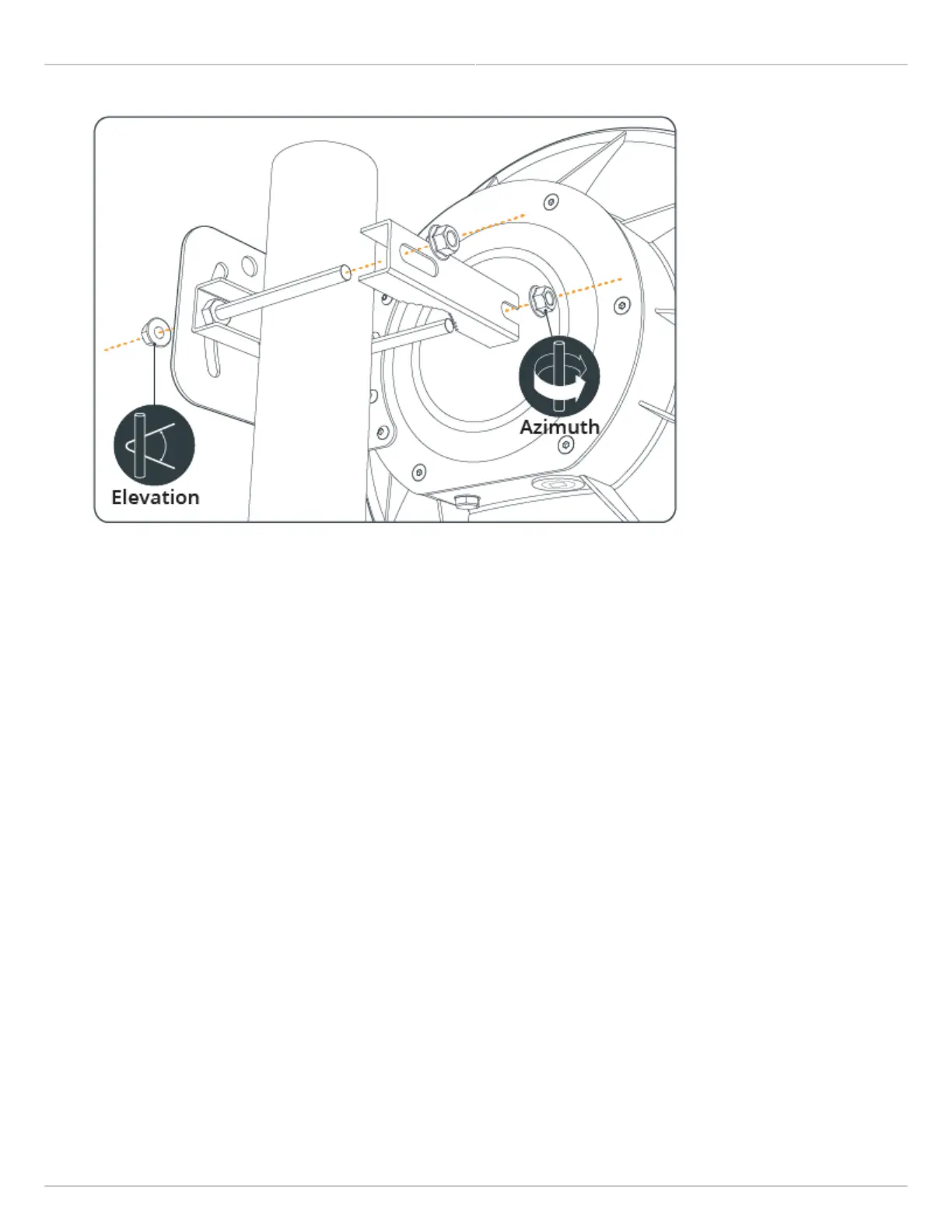

Aim the radio using physical Elevation and Azimuth movements, then check and tighten each of the bolts until4.
secure.
Attach a 6 mm
2
(10 AWG) ground wire with a maximum length of 1 m (3.3 feet) between the Bracket Assembly5.
of the B5 and a suitable grounding location on the tower or structure. The provided grounding screw is M5 x
6mm.
