Mimosa Backhaul Antenna Connections
Copyright © 2014 Mimosa Page 80

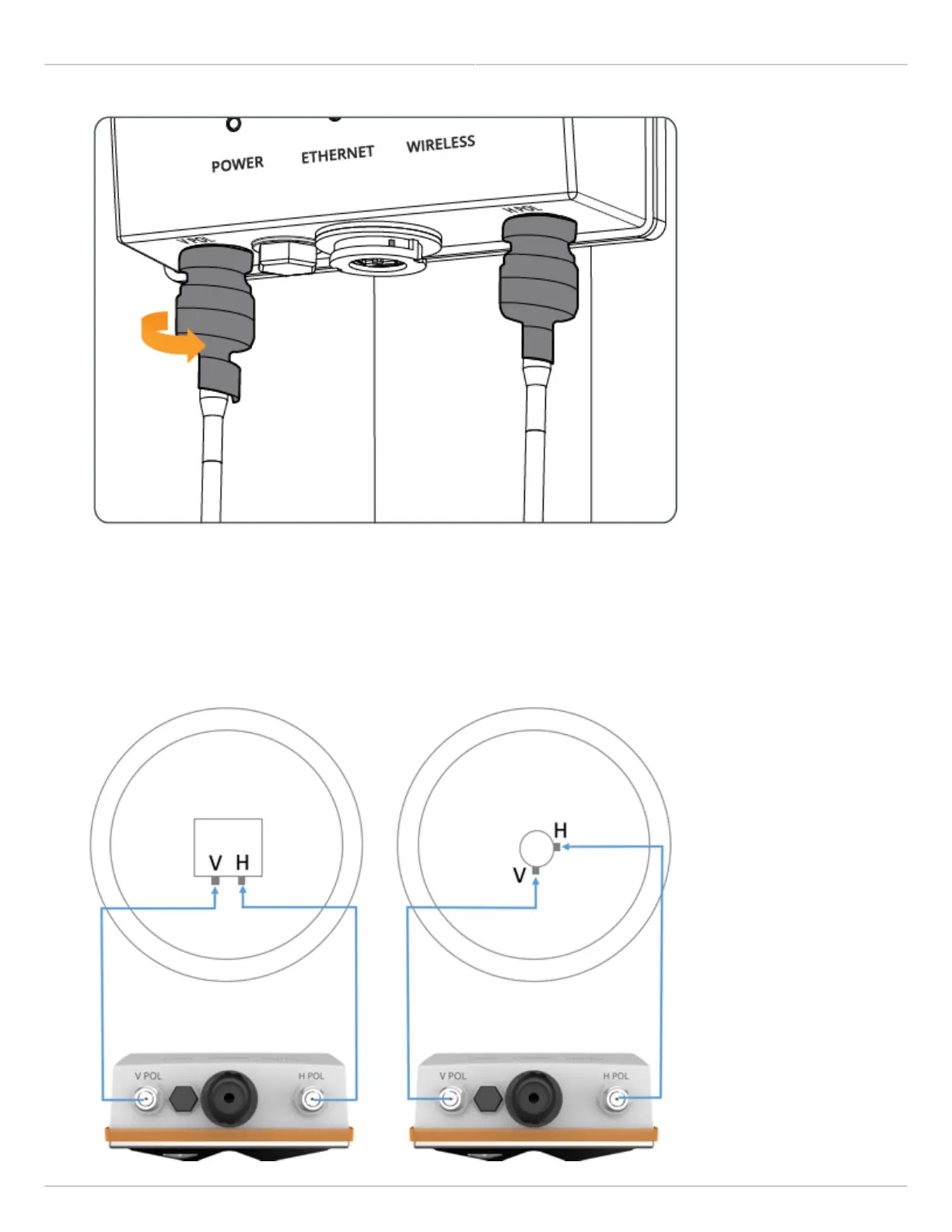

Connect the two coaxial cables to the antenna, ensuring that the horizontal and vertical polarizations are3.
connected between the radio and antenna in the same way on both sides of the link (H-H and V-V). Link
performance may be degraded if coaxial cables are swapped between polarizations on one side of the
link. Once secured mechanically, wrap the connectors with the provided Mastic tape in the clockwise direction
to protect against moisture ingress.
Example Antenna Connections
