2-3 Parts of the scanner

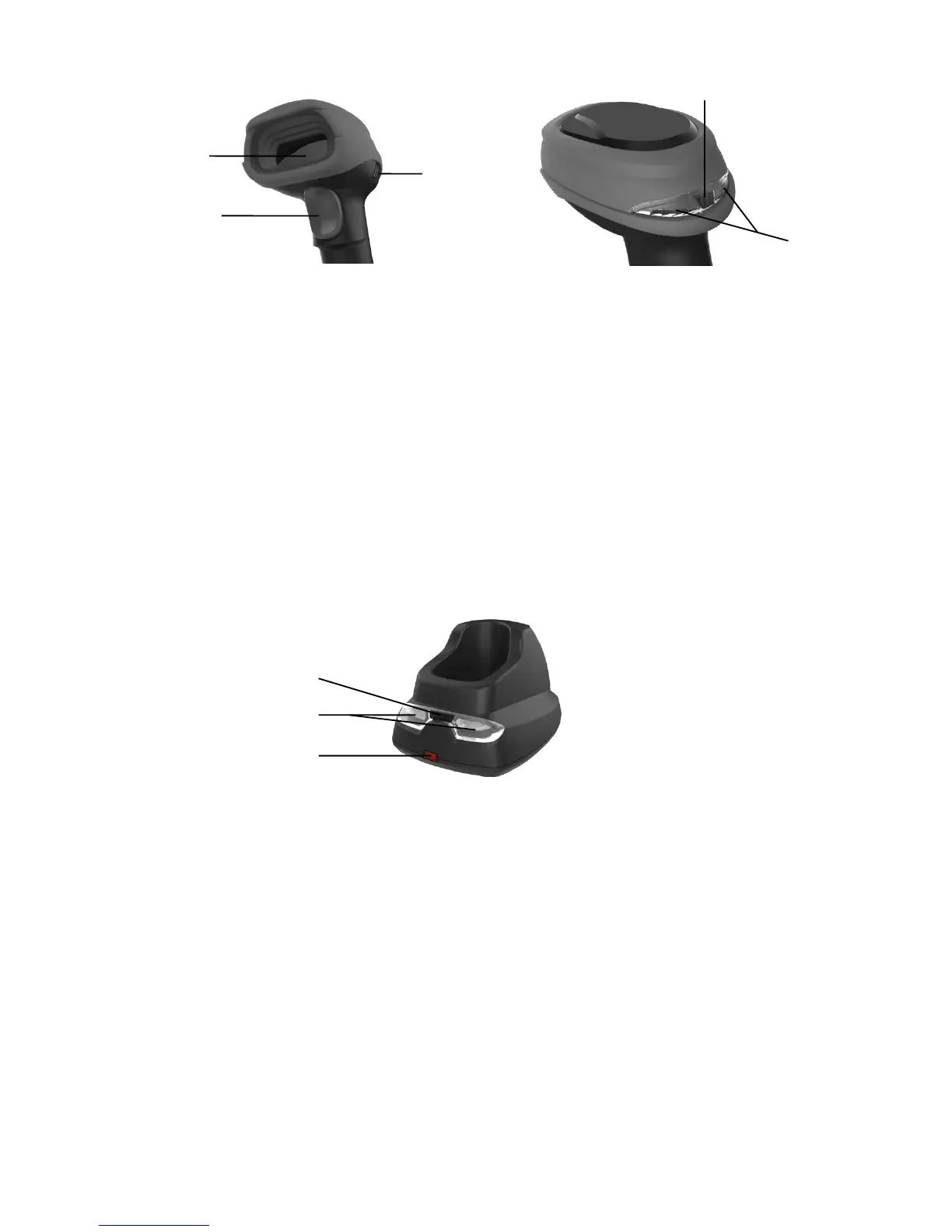

Figure 2-2 Handheld unit
① Exit window
② Trigger (Press to triggr / Long press 2 seconds to turn on)
③ Beeper
④ Power indicator (Blue LED)
⑤ Successful decoding indicator (Green LED) / Communication fail indicator (Red LED) / Charging
indicator (Red LED)
Figure 2-3 Cradle
⑥ Power indicator (Blue LED)
⑦ Communication indicator (Green LED)
⑧ Key (Long press 2 seconds to restore factory default setting of cradle)
