3-1 Example: Programming instruction
Note:
1) Only one parameter can be setup at each time.
2) During the process of programming, LED is lighting to indicate the programming correctness. LED
will go off if any incorrect programming operation performed.
3) After each successful programming, LED will go off and the scanner will beep twice.
4) Throughout the programming bar code menus, the factory default settings are indicated with
asterisks (*).
Two programming modes have been provided as bellows:

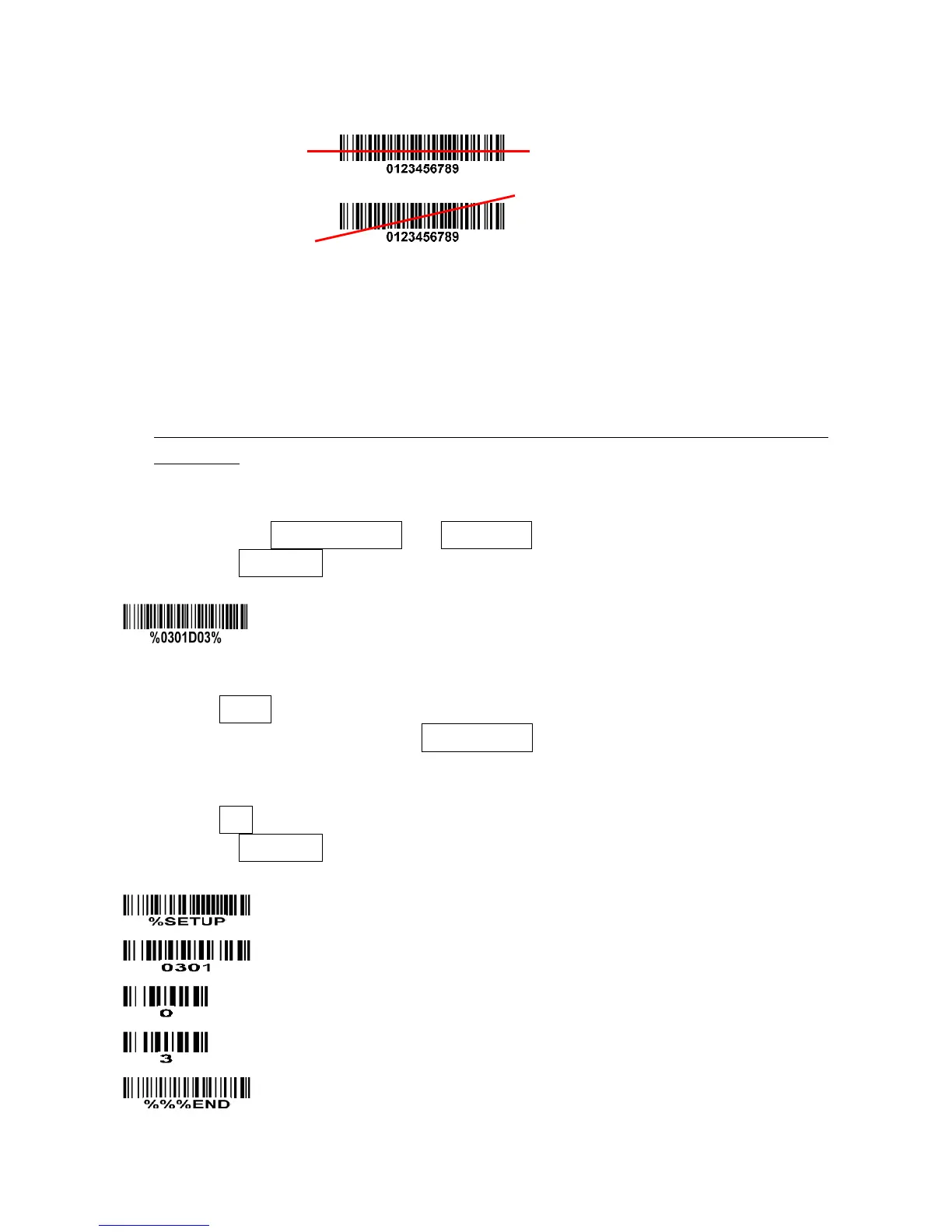

❶ Single-scan setting
Scan the appropriate Single-scan setting (e.g. %0101D00%) according to the user‘s demand.
Example: To set Flow control to be XON/XOFF.
Steps: Scan the following barcode.
❷ Multiple-scan setting
1) Scan the SETUP bar code on the parameter setting part.
2) Enter the option mode by scanning the Option bar code.
3) To the right of the option barcode, the necessary alphanumeric inputs are listed. See
12
Configuration alphanumeric entry barcode
.
4) Scan the END bar code, listed on the lower right hand corner of each parameter setting part.
Example: To set Flow control to be XON/XOFF.
Steps: Scan the following barcodes in order.
