Overview
1-22
No.
Name Function
<1> Transducer head Converts the electrical signal into an ultrasonic signal,
focusing the sound beams in a given direction;
meanwhile, it receives the reflected ultrasonic signal
and converts it into an electrical signal for transmission
over the cable. The lens on the surface is the acoustic
lens. Apply ultrasound gel on the acoustic lens for
correct operation.
<2> Needle-guided bracket
fix tabs and grooves
Provides mounting support of the needle-guided
bracket.
<3> Transducer cable Transmits electrical signals between the transducer
body and connector.
<4> Transducer connector Connects the transducer and cable to the ultrasonic
diagnostic system.
<5> Lock handle Locks the connector to the ultrasonic diagnostic system.
Tips:
The transducers’ structure marked <2> in the figure above may vary with the matched
needle-guided brackets.

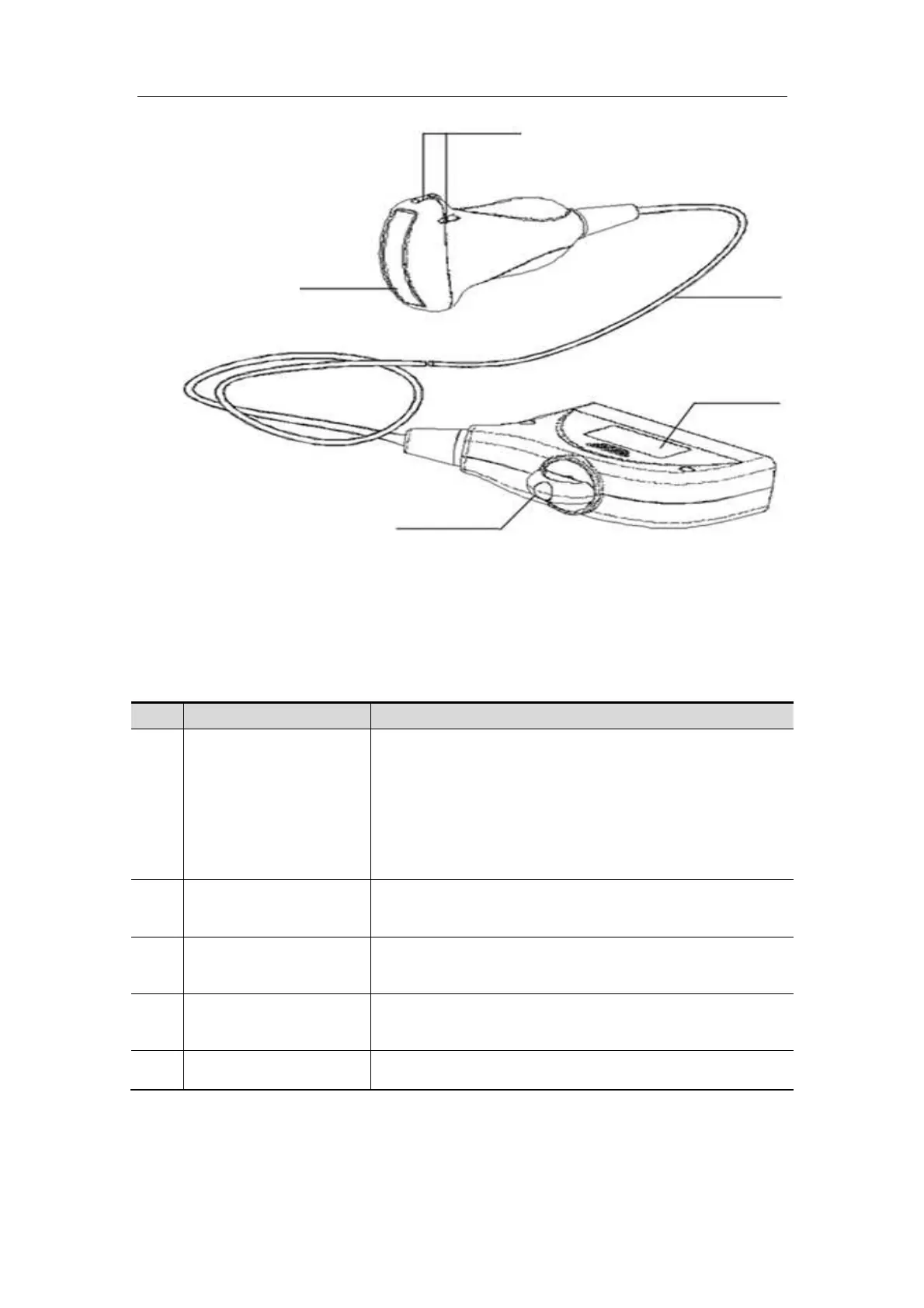

Biplanar transducer 6LB7:
<1>
<2>
<3>
<4>
