Overview
1-23

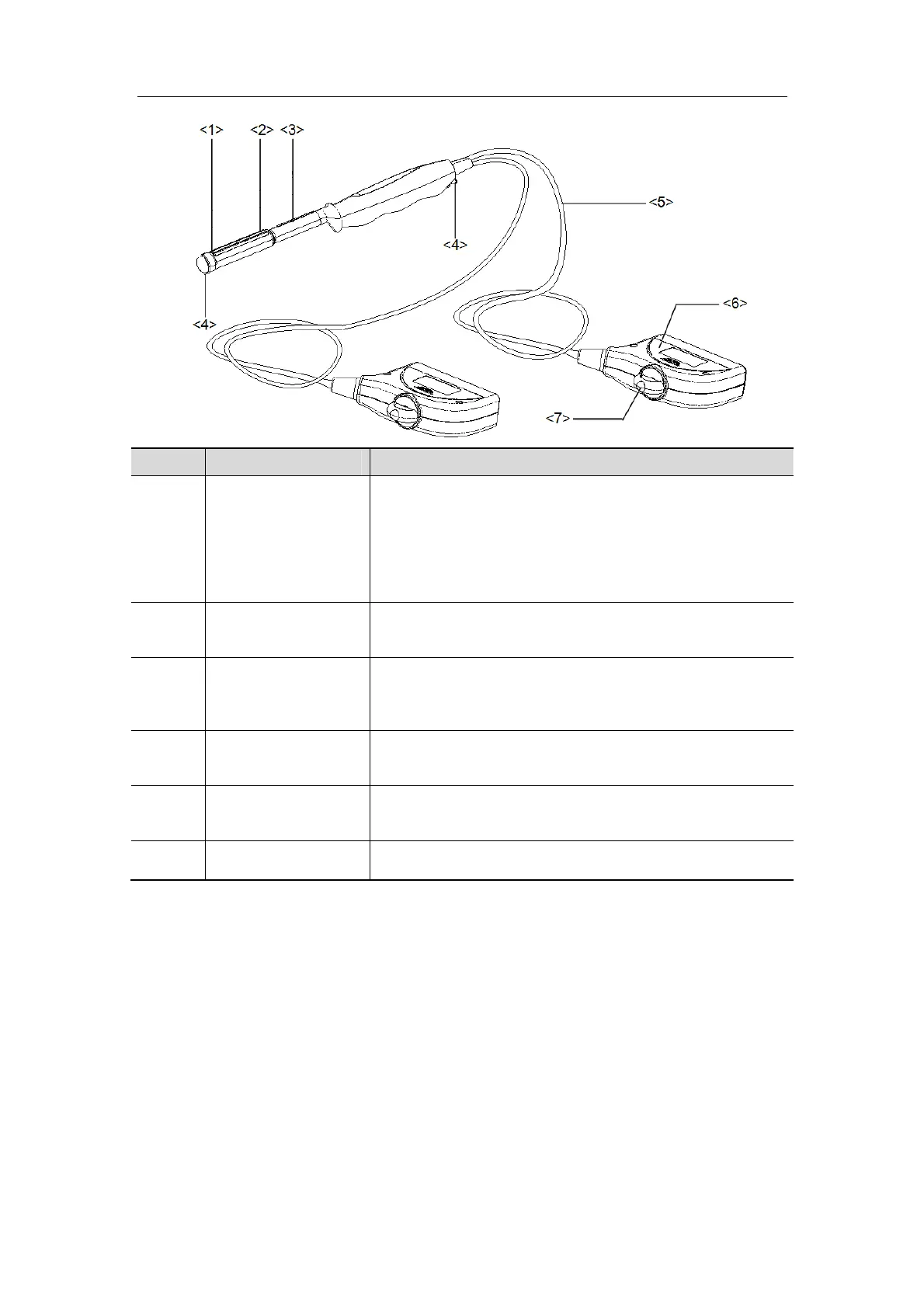

No. Name
Function
<1>
<2>
<1>Transducer head
(convex)
<2>Transducer head
(linear)
Converts the electrical signal into an ultrasonic signal,
focusing the sound beams in a given direction; meanwhile,
it receives the reflected ultrasonic signal and converts it
into an electrical signal for transmission over the cable.
The lens on the surface is the acoustic lens. Apply
ultrasound gel on the acoustic lens for correct operation.
<3>
Needle-guided
bracket fix tab
Supports mounting of the needle-guided bracket.
<4>
Water
injection/drainage
port
Provides an interface for injecting and draining water.
<5>
Cable
Transmits electrical signals between the transducer body
and connector.
<6>
Connector
Connects the transducer and cable to the ultrasonic
diagnostic system.
<7>
Lock handle
Locks the connector to the ultrasonic diagnostic system.
