Overview
1-24

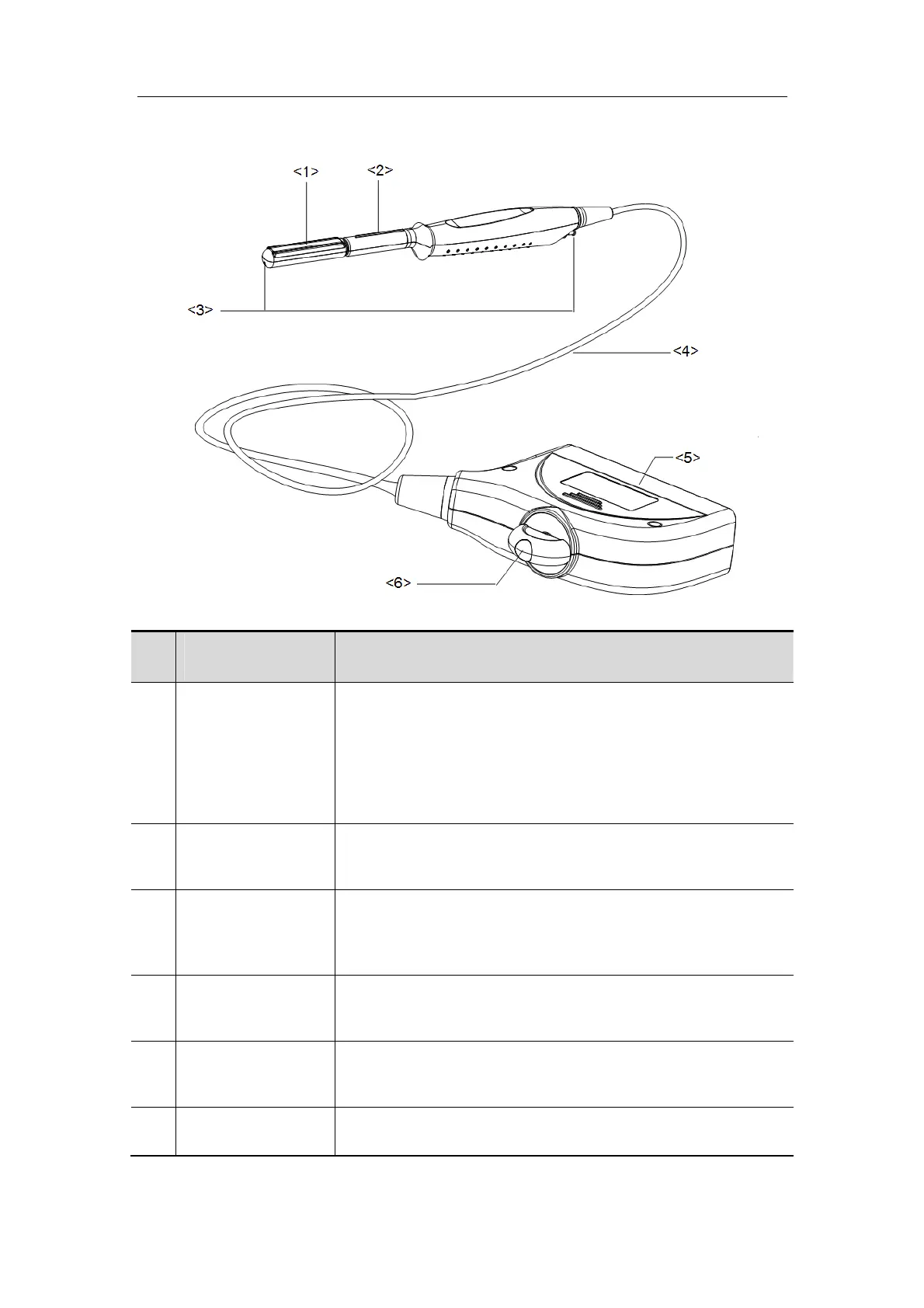

6LE7:
No.
Name Function
<1>
Transducer head
Converts the electrical signal into an ultrasonic signal,
focusing the sound beams in a given direction; meanwhile, it
receives the reflected ultrasonic signal and converts it into an
electrical signal for transmission over the cable. The lens on
the surface is the acoustic lens. Apply ultrasound gel on the
acoustic lens for correct operation.
<2>
Needle-guided
bracket fix tab
Mount the needle-guided bracket using this tab.
<3>
Water
injection/drainage
port
Used for inject/drain water
<4>
Cable
This transmits electrical signals between the transducer body
and connector.
<5>
Connector
This connects the transducer to the ultrasonic diagnostic
system.
<6>
Lock handle This locks the connector to the ultrasonic diagnostic system.
