Overview
1-25

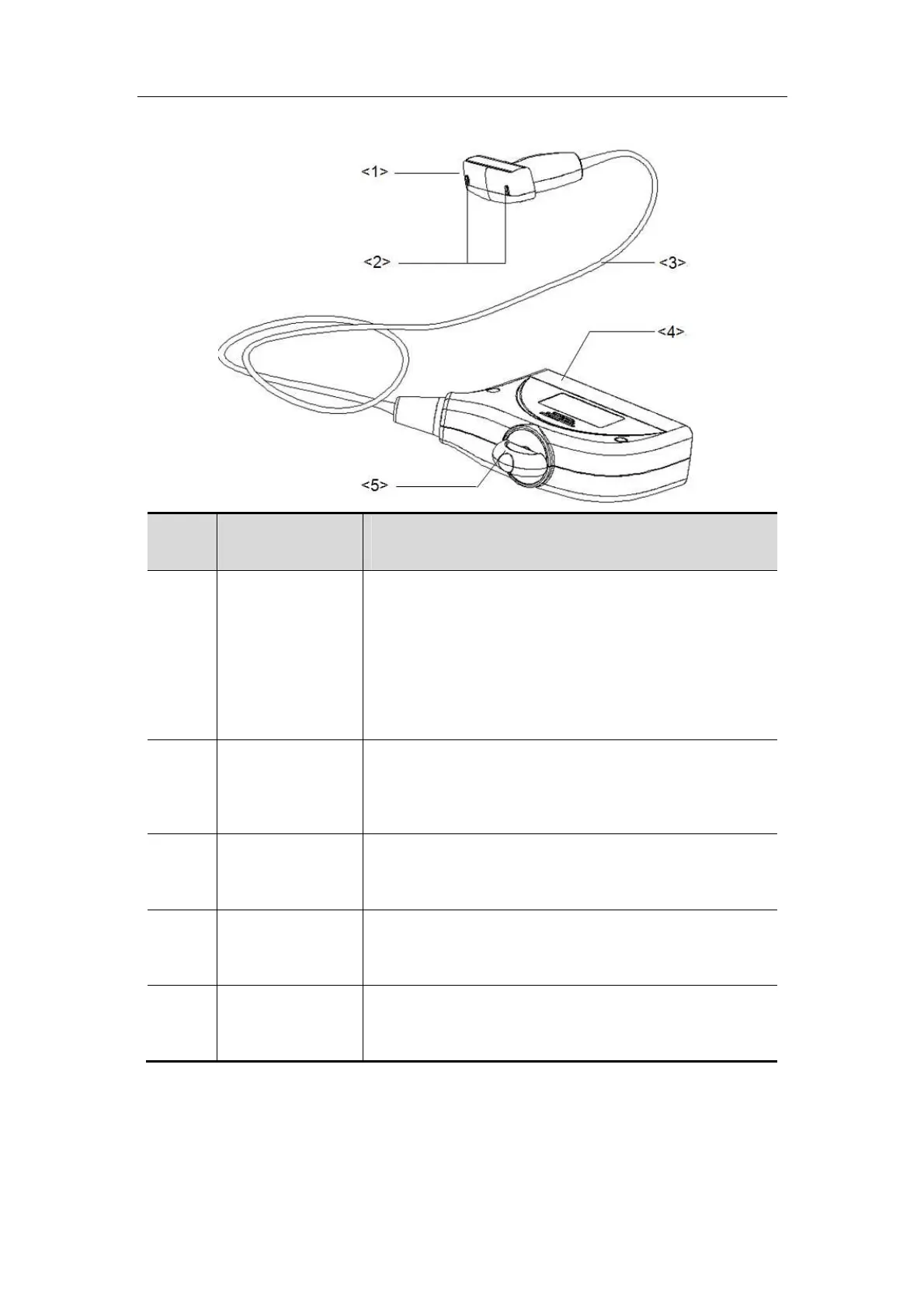

Intraoperative transducers 7LT4/7LT4s/75LT38EA/75LT40HA (Take 7LT4 as an example):
No. Name Function
<1> Transducer head
Converts the electrical signal into an ultrasonic signal,
focusing the sound beams in a given direction;
meanwhile, it receives the reflected ultrasonic signal
and converts it into an electrical signal for transmission
over the cable. The lens on the surface is the acoustic
lens. Apply ultrasound gel on the acoustic lens for
correct operation.
<2>
Needle-guided
bracket fix
grooves
Mounts the needle-guided bracket using these
grooves.
<3> Cable
Transmits electrical signals between the transducer
body and connector.
<4> Connector
Connects the transducer to the ultrasonic diagnostic
system.
<5>
Lock handle (not
for 7LT4s)
Locks the connector to the ultrasonic diagnostic
system.
