Mindray BeneHeart D2

14 - 2 Defibrillator/Monitor Operator’s Manual

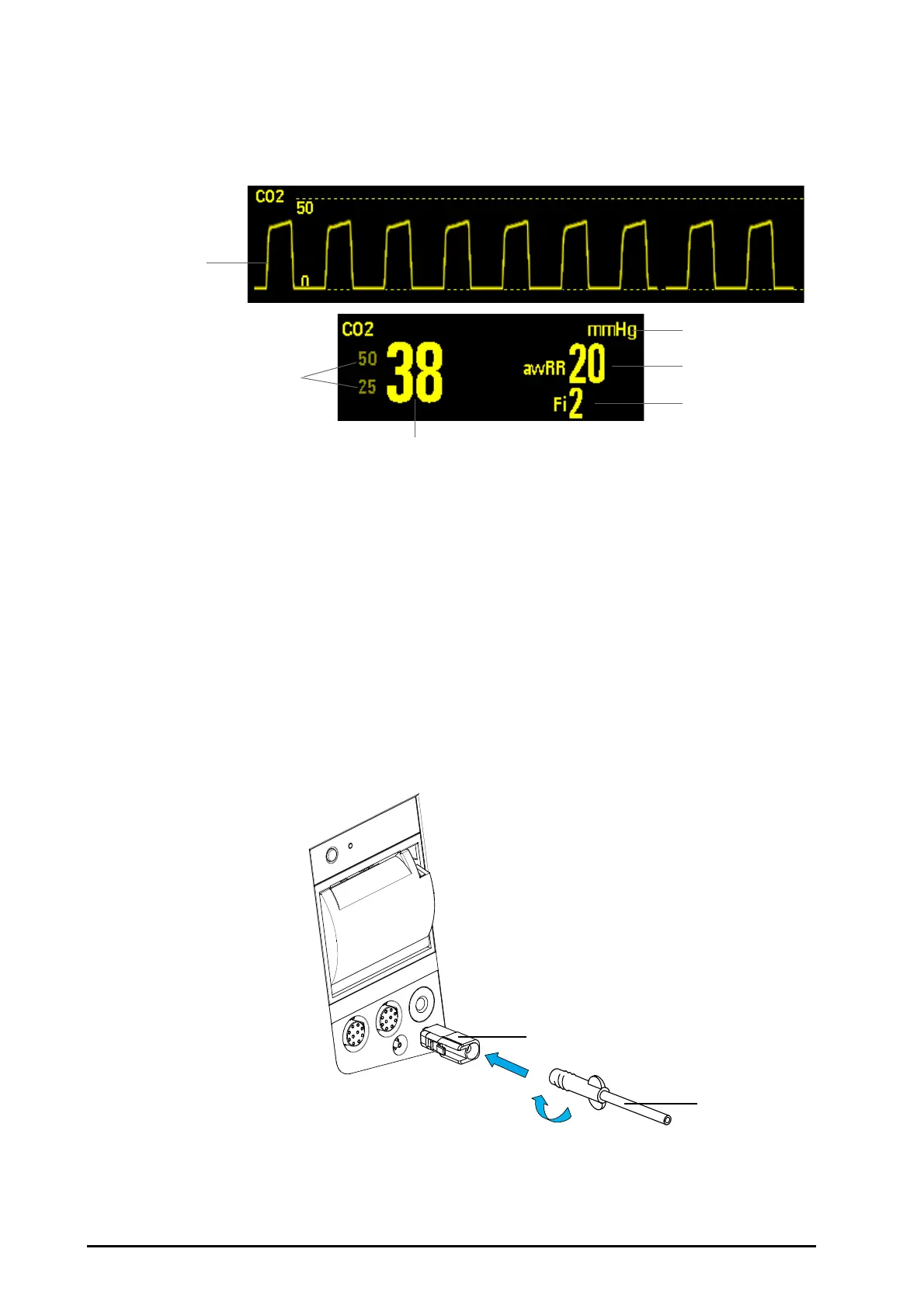

14.4 CO
2
Display
The CO
2
parameter and waveform areas provide FiCO
2
measurement, EtCO
2
measurement, awRR measurement,
and a CO
2
waveform.
14.5 Preparing for Measuring CO
2
14.5.1 Measuring CO
2
Using the CO
2
Module
1. Select an appropriate sampling line according to the patient category.
2. Connect the sampling line to the CO
2
adapter installed on the equipment.
(1) CO
2
waveform (2) CO
2
alarm limits
(3) End tidal CO
2
value (EtCO
2
): the highest CO
2
value measured during expiration.
(4) Fraction of inspired CO
2
(FiCO
2
): the lowest CO
2
value measured during inspiration.
(5) Airway respiration rate (awRR) (6) CO
2
unit
(2)
(4)
(3)
(5)
(6)
(1)
(1) CO
2
adapter (2) Sampling line
(1)
(2)
