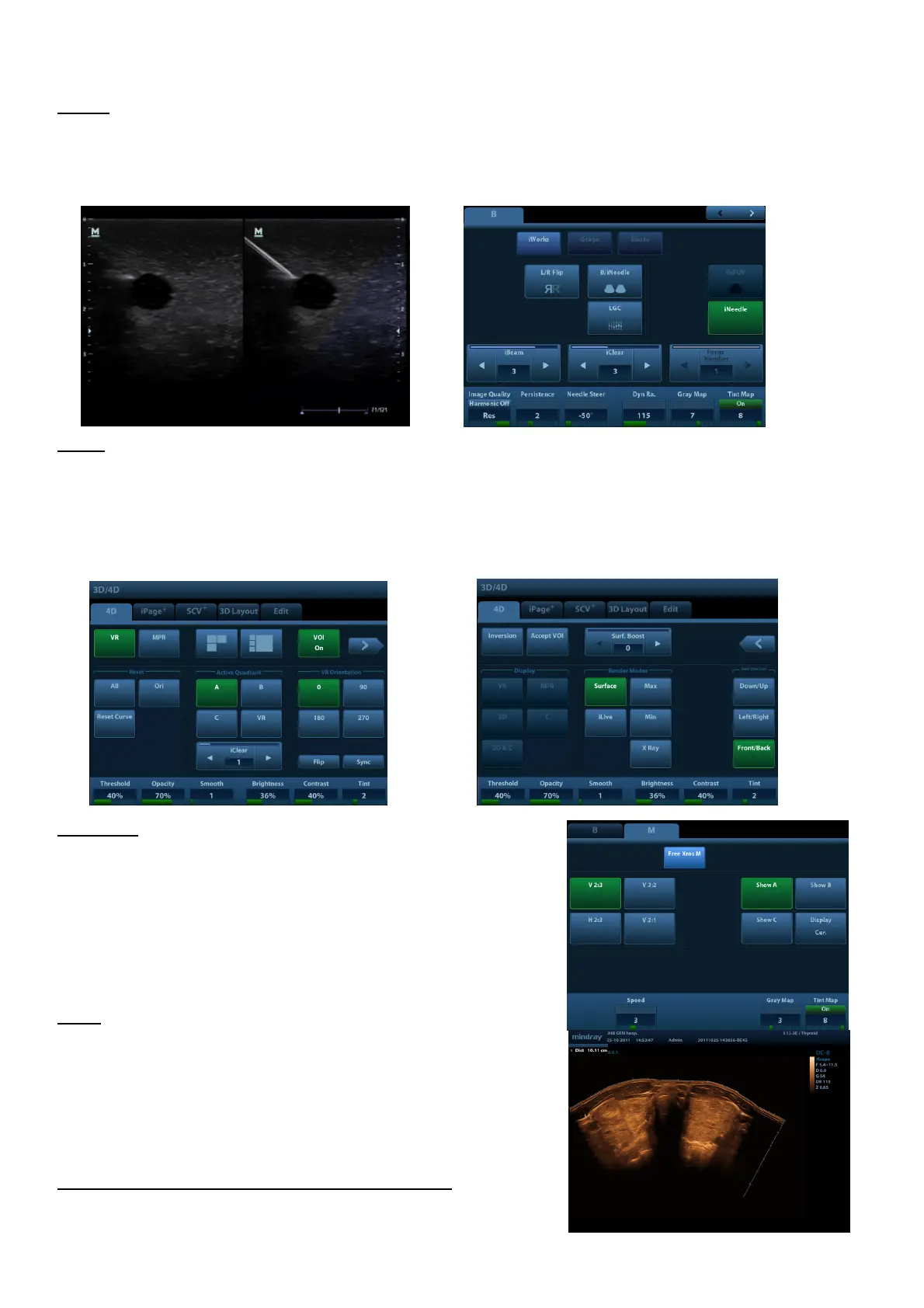

iNeedle
One button to show automatically the needle more clear with beam steer during the biopsy process.
1. Press [iNeedle] to enter the function mode via Touch screen, parameters will be displayed on the Touch screen.
2. Press [B/iNeedle] to switch B+iNeedle image or only iNeedle image displayed.
3. Press [Needle Steer] to adjust steer angle.
3D/ 4D
1. Press [Probe], select the volume probe and the exam mode via Touch screen.
2. Press [3D]/ [4D] to enter and adjust the ROI and curved VOI.
3. Press [Update] to enter the 4D image real-time status.
4. Rotate X/Y/Z knobs to adjust the axis of 3D/4D image.
5. Adjust rendering method/ layout/ parameters via Touch screen.
Free Xros M
1. In real-time B mode or M mode, adjust the probe and image to obtain the
desired plane, or select the B mode cine file to observe.
2. Click [Free Xros M] on the Touch screen to enter Free Xros M Mode.
3. Adjust the sampling line to obtain optimized images and necessary
information.
4. Move the [Trackball] to change the sample line position and rotate the
[Nav.] Knob to change the angle. Shift the different line with [Set] button.
iScape
1. Connect an appropriate iScape-compatible probe.
2. Press [iScape] to enter iScape mode.
3. Click [Start Capture] on [iScape] page tab on Touch screen or press [Update]
on the control panel to begin the capture.
4. Click [Stop Capture] on [iScape] page tab on Touch screen or press [Update]
on the control panel to stop.
Contrast Imaging (Not available in FDA and Canada region)
1. Select an appropriate probe, and perform 2D imaging to obtain the target
