Image Optimization 5-61

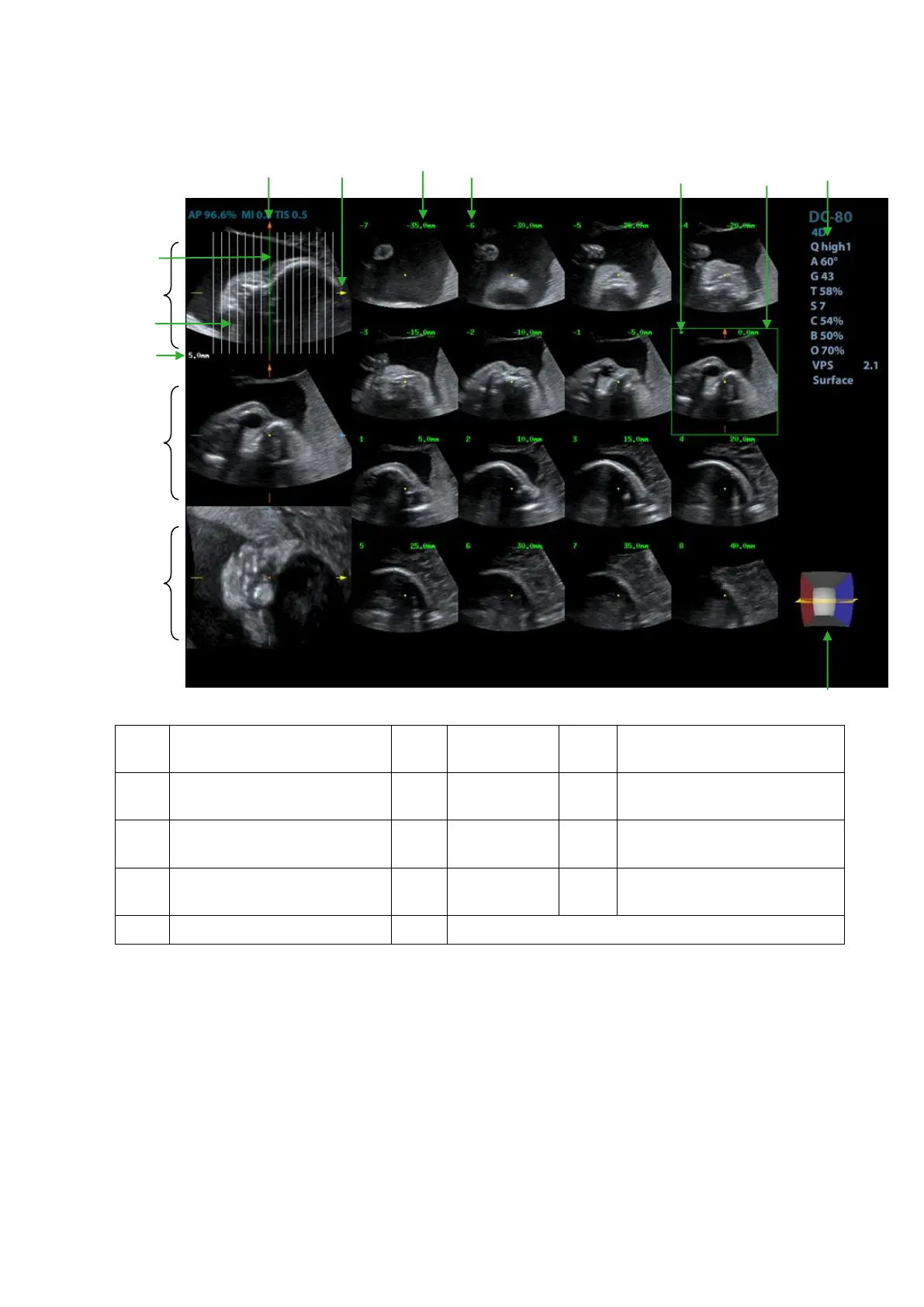

5.10.8.2 Basic Screen & Operation
<1>
A plane (the current
reference image)
<2>
B plane
<3>
C plane
<4>
Central slice line(Current
active slice)
<5>
Slice line
<6>
Space between two slice
lines
<7>
Y-axis
<8>
X-axis
<9>
Slice position (to the central
slice)
<10>
Slice order number
<11>
Central slice
mark
<12>
Active slice be highlighted in
green
<13>
Image parameter
<14>
Wire cage
 Layout
The system supports several types of displaying layout: 2*2, 3*3, 4*4 and 5*5, touch the
corresponding icon on the touch screen to select, and the selection [Slice Number] changes
accordingly.
 Reference image
Touch [A], [B], or [C] to select the reference image.
 Slice and slice line
 Central slice: the central slice line corresponding plane are the central slice, which is
marked with a green ―*‖ at the upper left corner of the image.
<2>
<1>
<3>
<4>
<5>
<6>
<7>
<8>
<9>
<10>
<11>
<12>
<13>
<14>
