10-2 Patient Data Management
The system can save FRM files as BMP, JPG, TIFF or DCM files, or save CIN files as AVI,
DCM files.
PC-compatible formats:
Screen file (BMP)
Single-frame file format, used to save the current screen, non-compressed format;
JPG: Single frame export format.
TIFF: Single frame export format.
Multi-medium file (AVI)
Multi-frame export format.
DICOM file (DCM)
DICOM standard files format, single-frame or multi-frame format, used to record patient
information and images; you can only open DCM files to view rather than to edit.
10.2.3 Image Storage Preset
Set image size

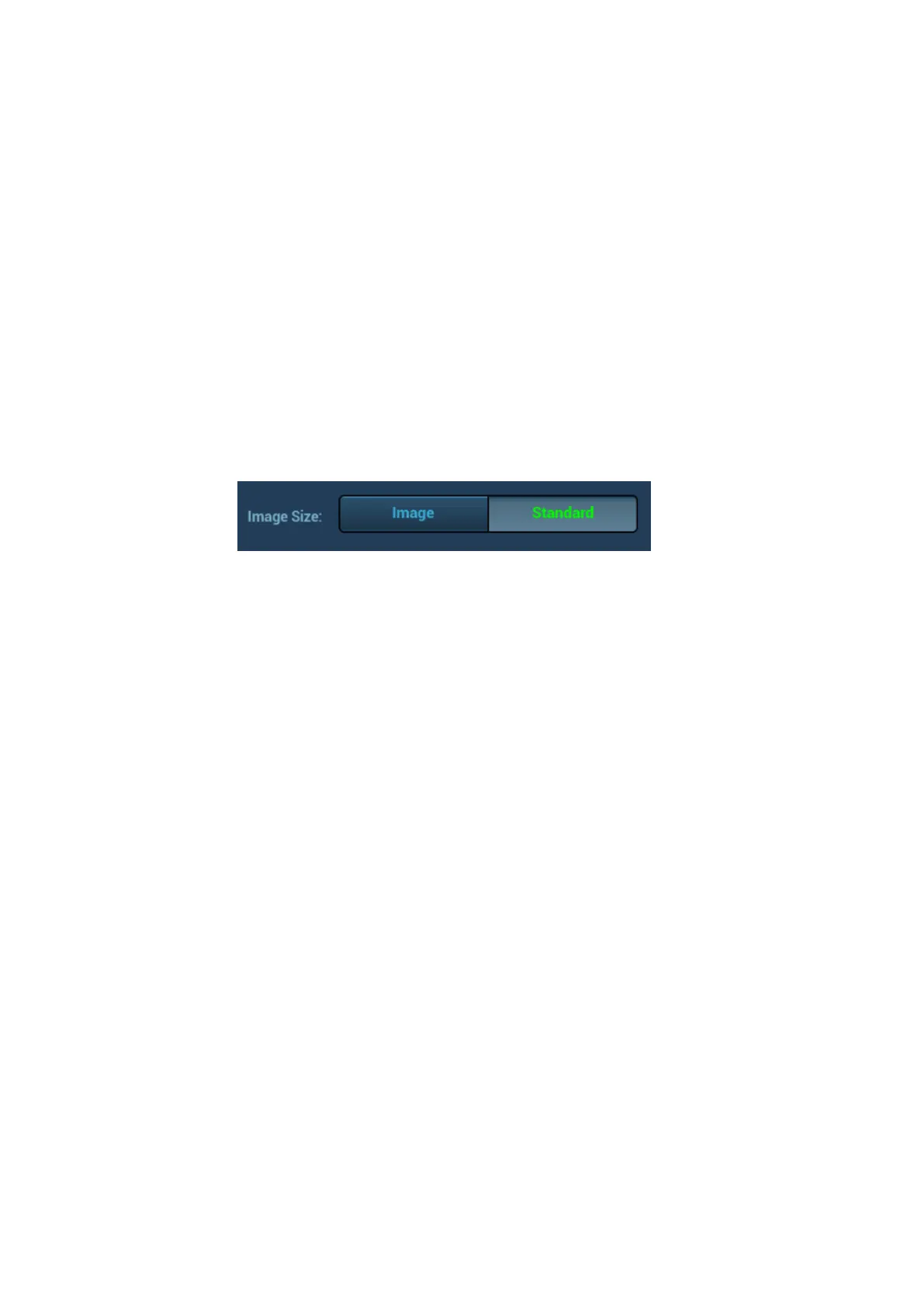

You can set the image size via ―[Setup] →[System]→ [Image]‖:
Set cine saving length (clip length)
For details, please refer to ―6 Display & Cine Review‖.
Set send/ print image after end exam
Open ―[Setup]→[System]→[General]‖, check ―Sending/ printing after End Exam‖ in exam
setting area. Then every time you press <End Exam>, the system will send images of the
exam to the connected default DICOM server.
10.2.4 Quickly Saving Images to the System
To save a single-frame image to the system quickly:
1. Set the user-defined key through the path: [Setup]→ [System]→ [Key Config]. Select a key in
the Key Function field on the left side and select ―Save Image to hard drive‖ in the Output page
of Function field on the right side.
2. Press the user-defined key to save the image.
In the image screen, the image is saved in the FRM format.
When a dialog box is displayed on the current screen, save the screen in the BMP format.
To save cineloop image to the system quickly:
1. Set the user-defined key through the path: [Setup]→ [System]→ [Key Config]. Select a key in
the Key Function field on the left side and select ―Save Clip (Retrospective) to hard drive‖ or
―Save Clip (Prospective) to hard drive‖ in the Output page of Function field on the right side.
2. Press the user-defined key to save the image.
Press the user-defined key to save the cine file in the default file directory in the CIN format.
The thumbnail of the image will appear in the thumbnail area on the right side of the screen.
When you move the cursor onto the thumbnail, its filename with suffix will be displayed.
You can set clip saving length in the path: [Setup]-[System]-[General].
