Mindray DC-80 EXP User Manual

13-16 Probes and Biopsy
 NGB-007/NGB-035

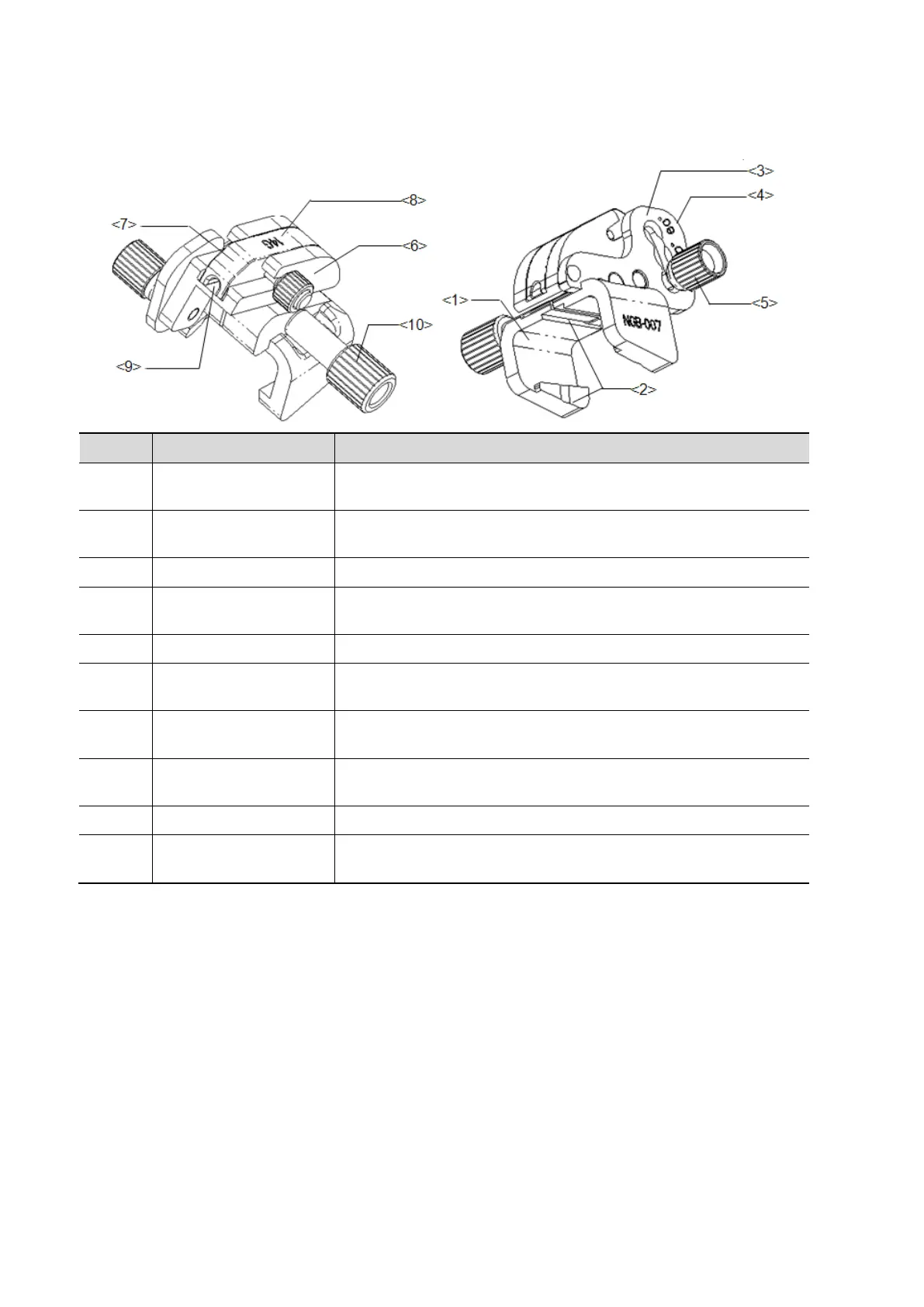

Metal/needle detachable needle-guided bracket:
No.
Name
Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
<2>
Groove and tab of the
needle-guided bracket
Respectively matched with the tab and groove of the probe.
<3>
Angle adjusting base
There are 3 types of angles available to be adjusted.
<4>
Angle shift sign
(40°,50°,60°)
Matched with the biopsy angle (40°, 50°, and 60°) .
<5>
Angle pinch nut
Used for fixing the angle lock at a chosen angle.
<6>
Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used.
<7>
Guiding block
Used for installing biopsy needle; there are five specifications
of guiding blocks for different biopsy needles.
<8>
Specification of
guiding block (14G)
Matched with the corresponding biopsy needle (14G).
<9>
Needle guide hole
Used for installing the biopsy needle.
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the probe.

Mindray DC-80 EXP Specifications

General

Touchscreen	Yes
Transducer Ports	4
Power Supply	100-240V AC, 50/60 Hz
Imaging Modes	Color Doppler, Power Doppler
Operating System	Windows
Storage	1 TB HDD
Connectivity	DICOM, Ethernet, USB
Applications	General Imaging, Cardiology, Vascular, Pediatrics
Weight	85 kg
