Probes and Biopsy 13-29

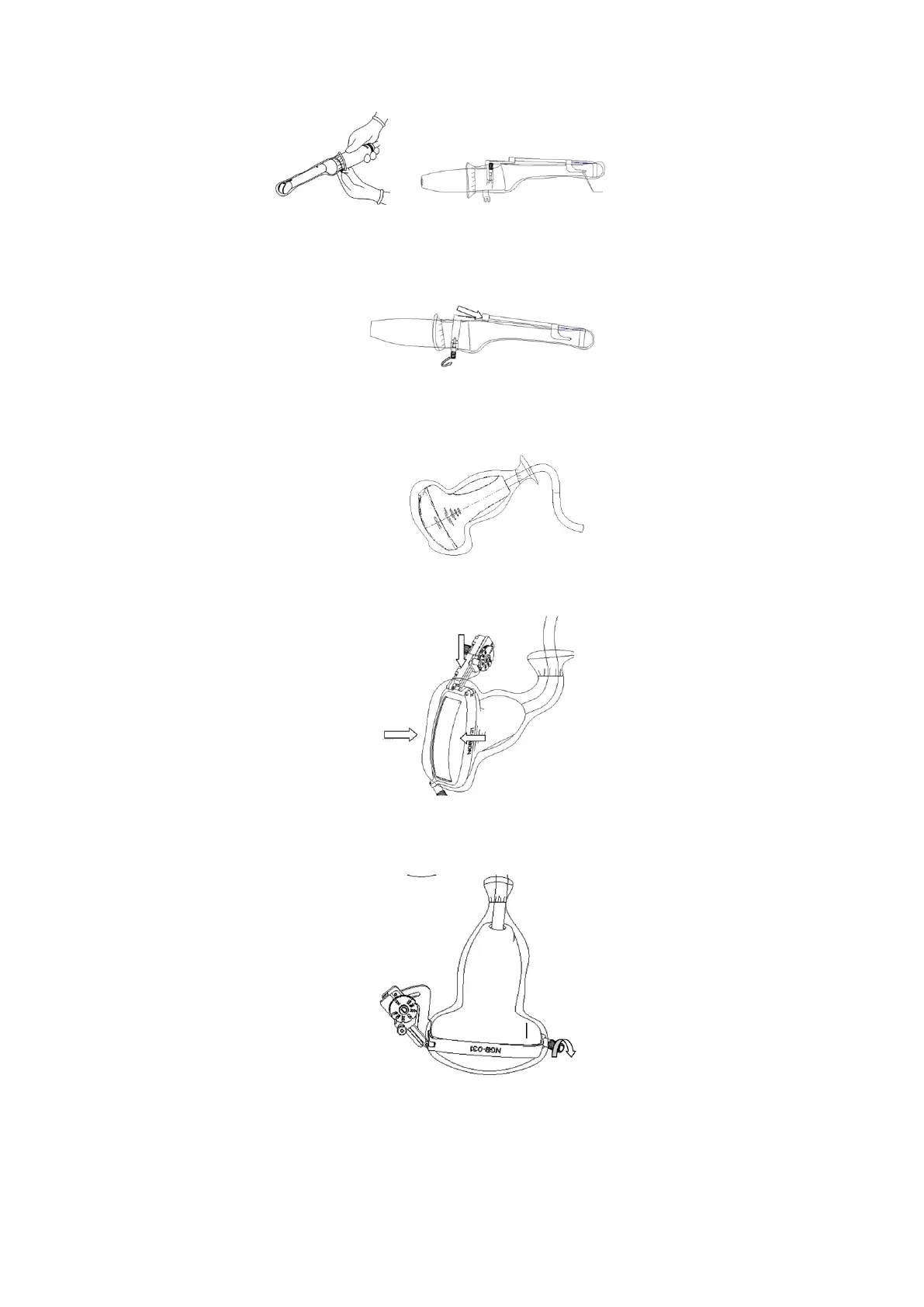

(2) Open the clamp. Insert the front clamp to the front groove.
(3) Push the biopsy forward (arrow’s direction) until the locating pole inserting into the
location hole. Turn the lower clamp against the intra-cavity probe. Tighten the nut to lock
the biopsy (arrow’s direction).
NGB-031
(1) Put on the sterile probe sheath.
(2) Select a proper needle-guided bracket, and match the locating groove with the tab of the
probe. Mount the bracket onto the probe.
(3) Tighten the pinch nut of the needle-guided bracket (following the arrow’s direction) to
confirm that the needle-guided bracket is properly installed on the probe.
(4) Adjust the dial scale to the required needle type shift.
