13-34 Probes and Biopsy
NGB-007/NGB-035

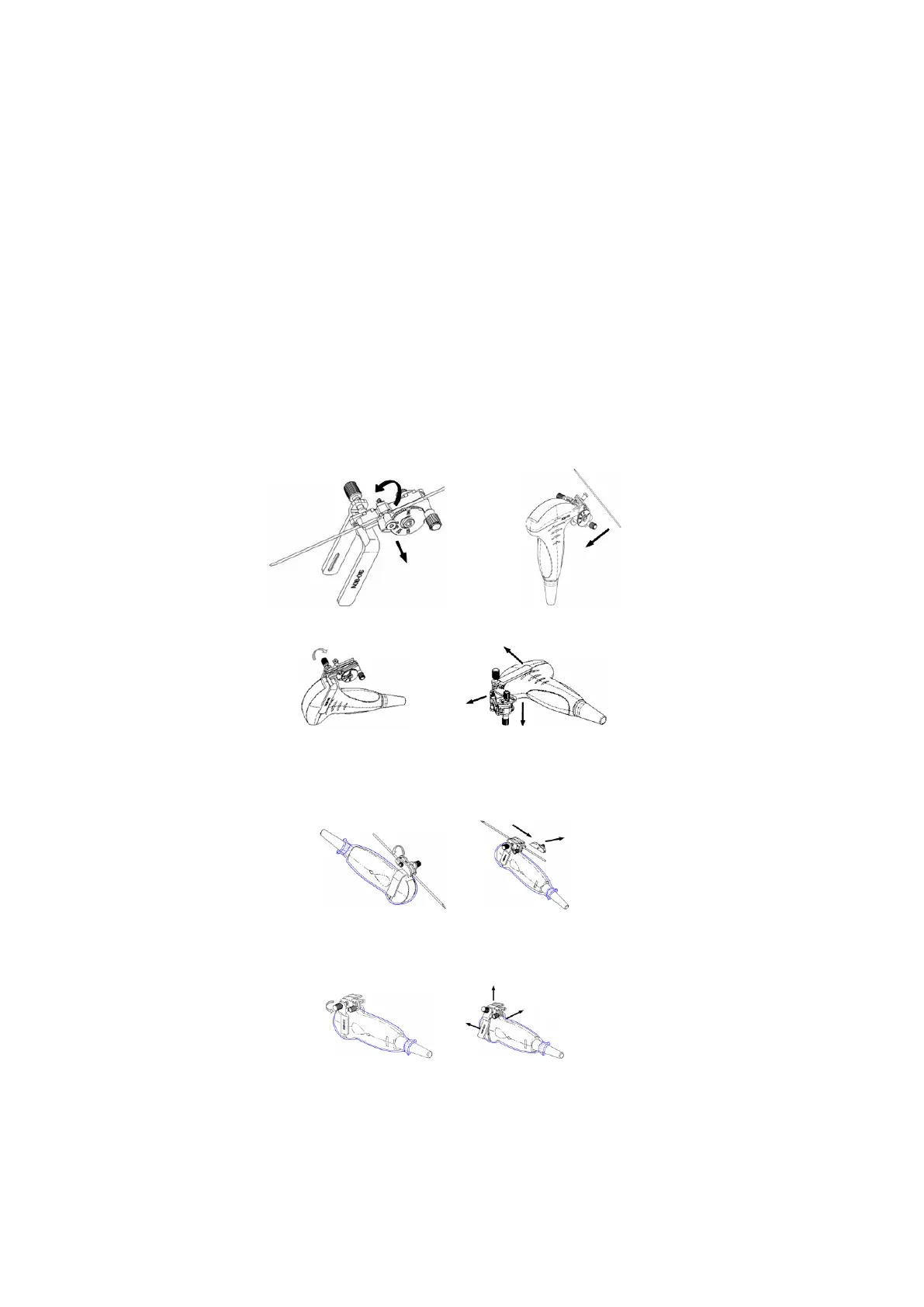

Metal needle-guided bracket:
(1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the needle.
(3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from the probe.
Plastic needle-guided bracket:
(1) Remove the guiding block slightly along the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the needle.
(3) Remove the support of needle-guided bracket from the probe.
NGB-011
Hold the probe and the needle-guided bracket, and then open the grip knob of the needle-
guided bracket.
NGB-015/NGB-019/NGB-022/NGB-023
(1) Pull the lock pin and open up the V-shaped cover to expose the needle.
(2) Separate the bracket and the transducer from the needle.
(3) Screw the pinch nut to release the needle-guided bracket.
(4) Separate the bracket and the transducer.
NGB-018
(1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the transducer from the needle.
(3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from the
transducer.
NGB-020/NGB-040
(1) Pull the lock pin out and open up the V-shaped cover to expose the needle.
