Probes and Biopsy 13-35

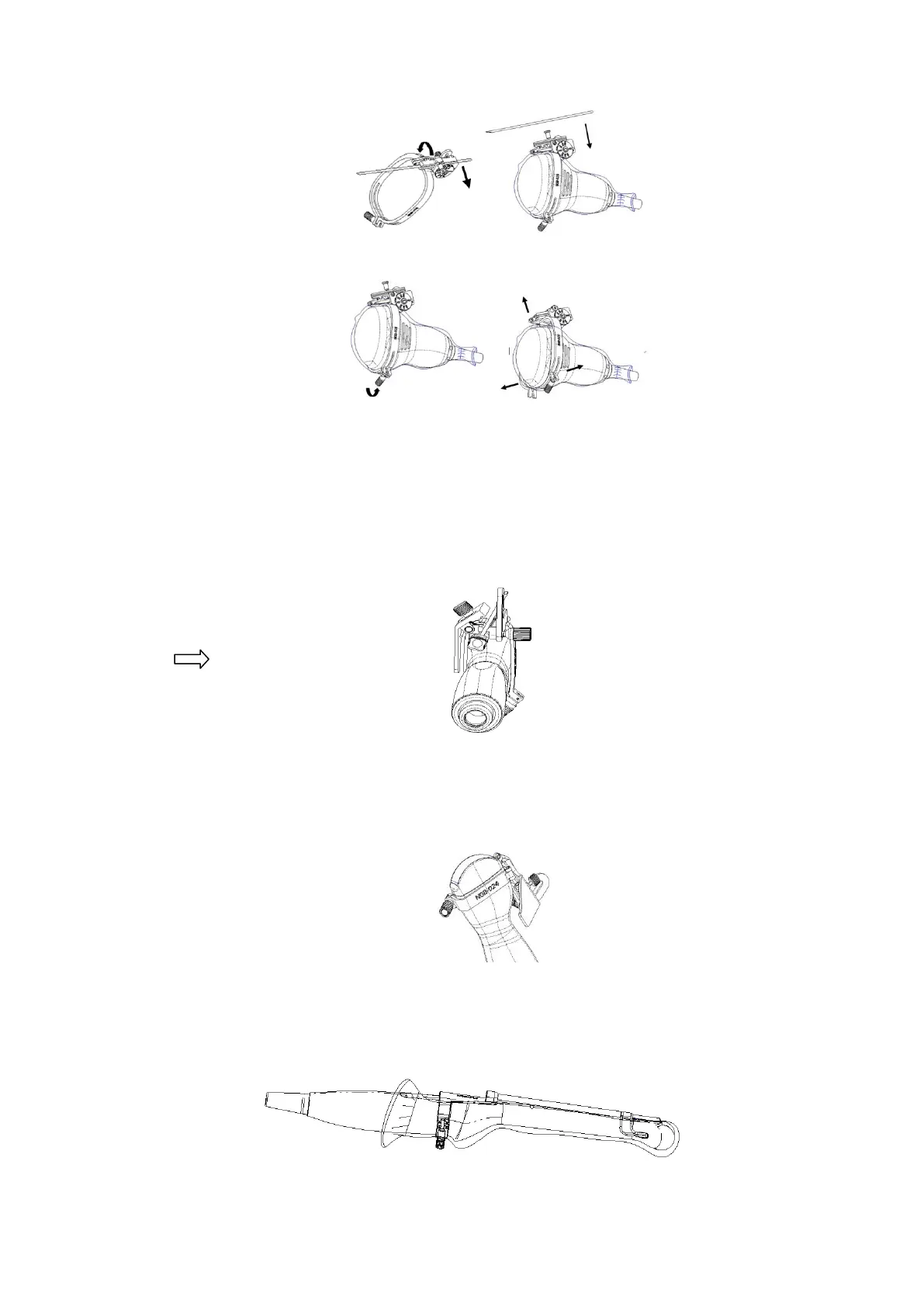

(2) Separate the bracket and the transducer from the needle.
(3) Screw the pinch nut to release the needle-guided bracket.
(4) Separate the transducer and the needle-guided bracket.
NGB-021
Hold the transducer in the left hand, unscrew the locking nut with the right hand to loose the
retaining clamp. Raise the needle-guided bracket to separate the locating clamp/ bulge from the
locating grooves.
NGB-024
(1) Hold the transducer. Press the biopsy needle to separate the needle from pressure
position of the needle.
(2) Separate the bracket and the transducer from the needle.
(3) Rotate the clamping nuts of the needle guided-bracket on right and left side (following the
direction of the arrow). The needle guided-bracket is separate from the transducer. Hold
the transducer and take out the bracket.
NGB-025
Hold the prober in the left hand; unscrew the locking nut with the right hand to loose the clamp
(arrow’s direction).Lift the biopsy up (towards arrow’s direction). The locating pole, front clamp, the
locating hole and the front clamp become loose.
