Mindray DC-80 EXP User Manual

B-4 Ultrasound Gel Warmer

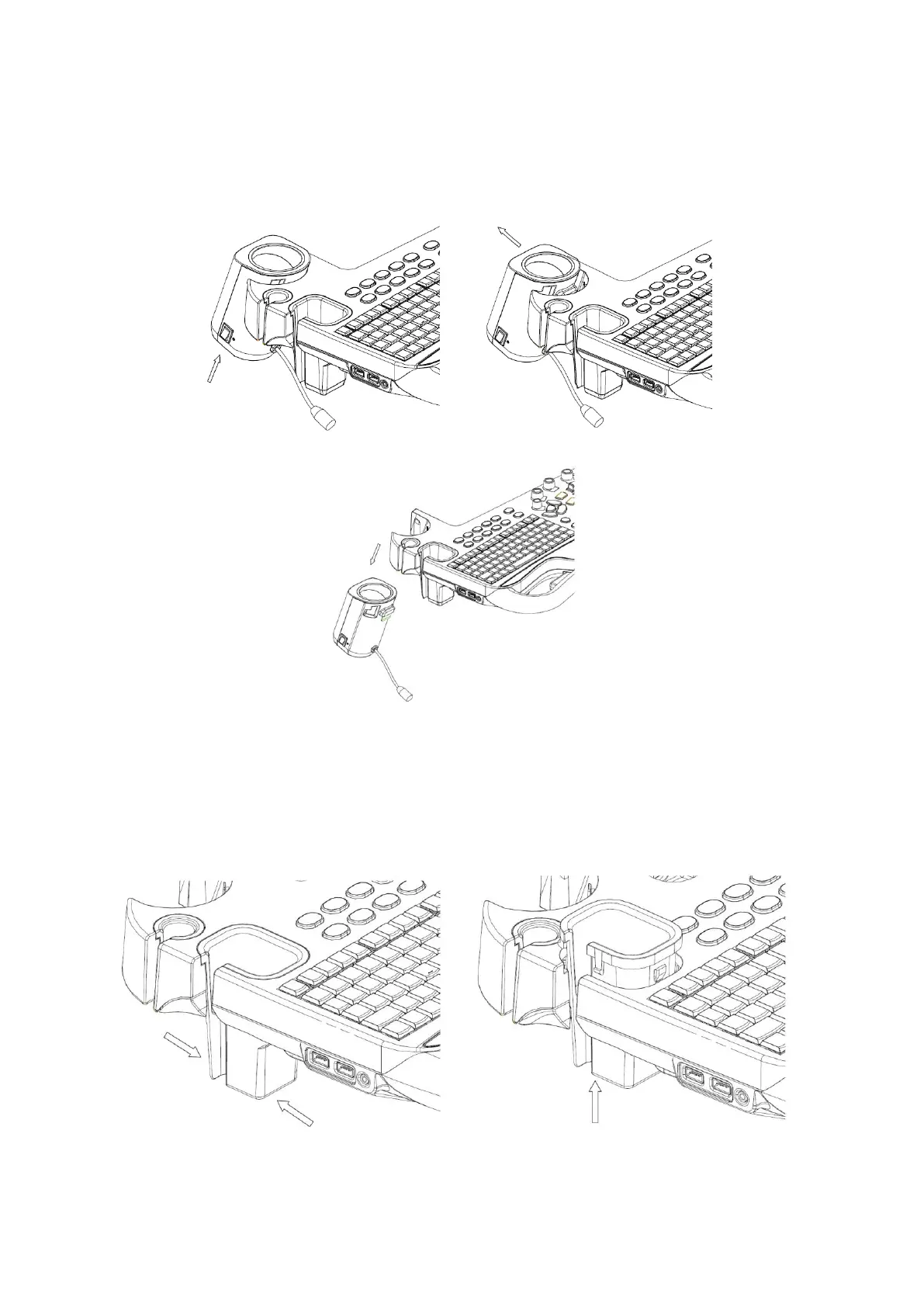

B.6 Remove the Warmer
1. Pull out the power cable from the control panel jack.
2. Push the warmer as per the arrow direction.
3. Remove the warmer as shown in the following figure.
B.7 Mount/Remove Probe Holder
To install the gel warmer, you have to remove the probe holder first.
B.7.1 Remove the Holder
Push towards the arrow direction on the bottom and lift upwards to remove the holder.

Mindray DC-80 EXP Specifications

General

Touchscreen	Yes
Transducer Ports	4
Power Supply	100-240V AC, 50/60 Hz
Imaging Modes	Color Doppler, Power Doppler
Operating System	Windows
Storage	1 TB HDD
Connectivity	DICOM, Ethernet, USB
Applications	General Imaging, Cardiology, Vascular, Pediatrics
Weight	85 kg
