Mindray DC-80 EXP User Manual

Barcode Reader E-3

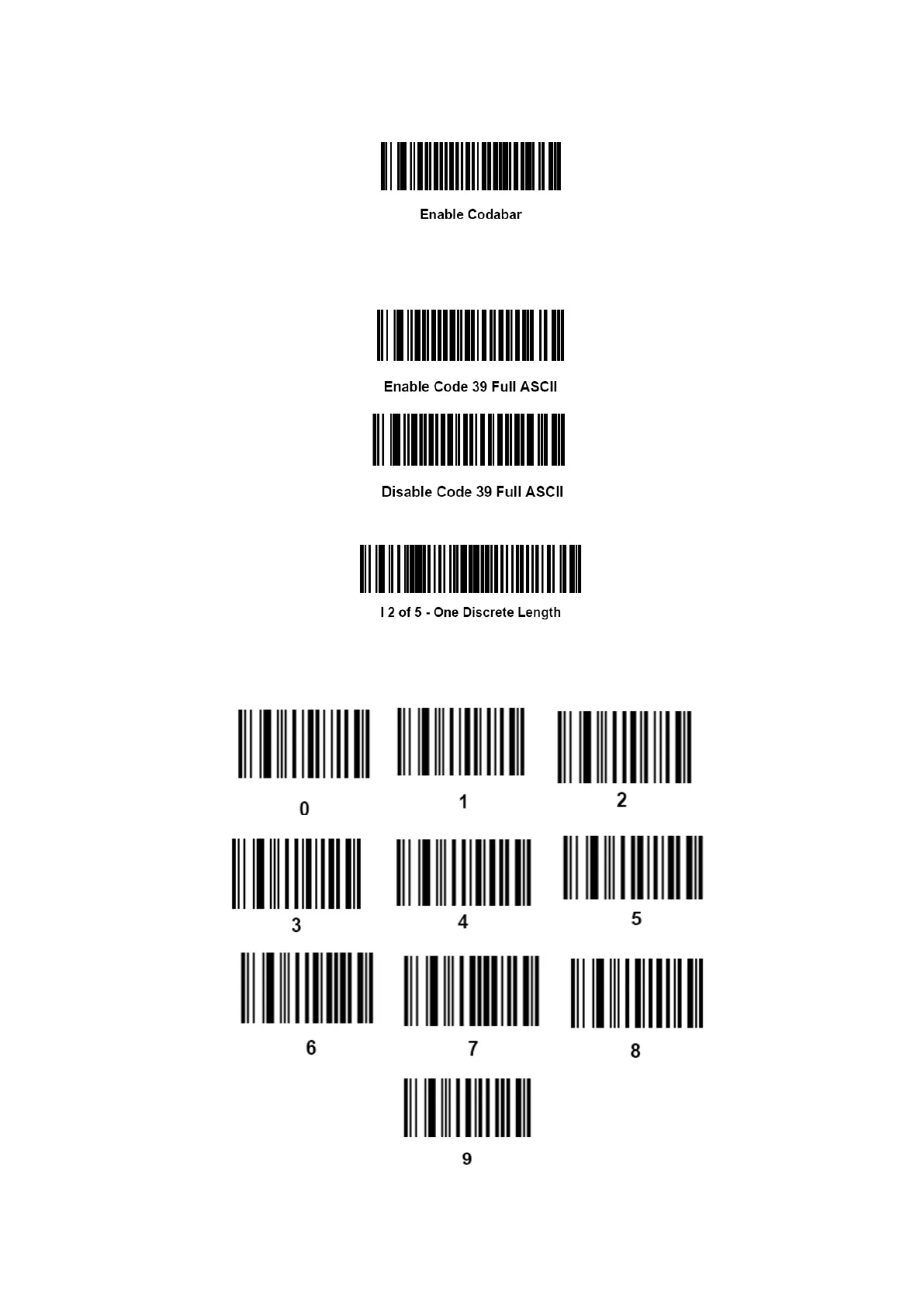

To enable Codebar, scan the appropriate barcode below.
 code 39 full ASCII scanning:
Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set.
To enable or disable Code 39 Full ASCII, scan the appropriate barcode below.
 I 2 of 5 symbols setting:
Select this option to decode only I 2 of 5 symbols containing a selected length. Select the length using
the numeric barcodes below. For example, to decode only I 2 of 5 symbols with 8 characters, scan I 2
of 5 - One Discrete Length, then scan 0 followed by 8.

Mindray DC-80 EXP Specifications

General

Touchscreen	Yes
Transducer Ports	4
Power Supply	100-240V AC, 50/60 Hz
Imaging Modes	Color Doppler, Power Doppler
Operating System	Windows
Storage	1 TB HDD
Connectivity	DICOM, Ethernet, USB
Applications	General Imaging, Cardiology, Vascular, Pediatrics
Weight	85 kg
