Mindray DC-80 EXP User Manual

Barcode Reader E-5
E.1.5 Scanning in Hands-Free Mode

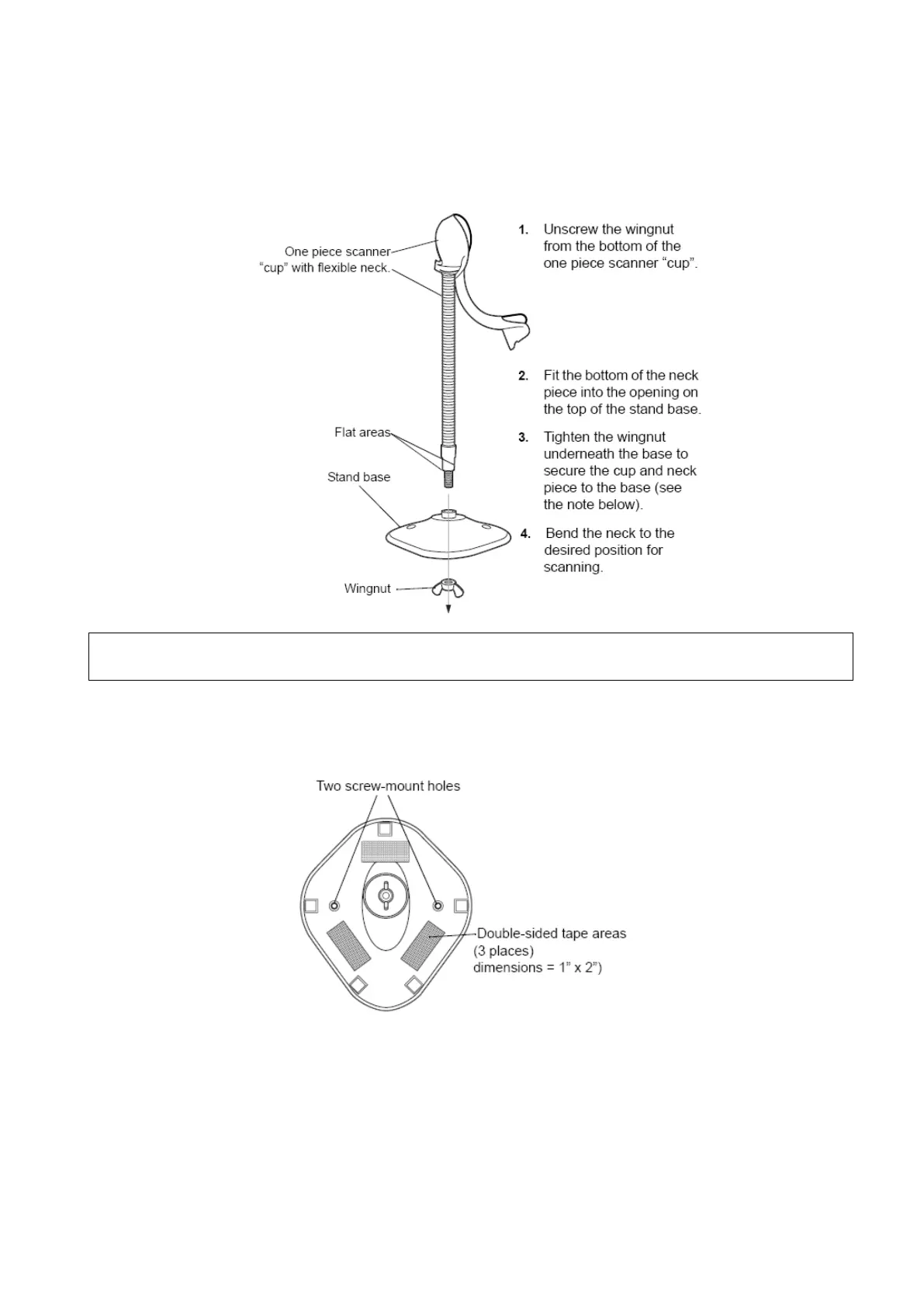

Assembling the Intellistand
NOTE:
Before tightening the wingnut under the base, ensure that the flat areas on the flexible neck
fit securely in the grooves in the base.
Mounting the Stand (optional)
You can attach the base of the reader’s stand to a flat surface using two screws or double-sided tape
(not provided).
 Screw Mount
1. Position the assembled base on a flat surface.
2. Screw one #10 wood screw into each screw-mount hole until the base of the stand is secure
 Tape Mount
1. Peel the paper liner off one side of each piece of tape and place the sticky surface over each of the
three rectangular tape holders.

Mindray DC-80 EXP Specifications

General

Touchscreen	Yes
Transducer Ports	4
Power Supply	100-240V AC, 50/60 Hz
Imaging Modes	Color Doppler, Power Doppler
Operating System	Windows
Storage	1 TB HDD
Connectivity	DICOM, Ethernet, USB
Applications	General Imaging, Cardiology, Vascular, Pediatrics
Weight	85 kg
