Mindray DC-80 EXP User Manual

E-6 Barcode Reader
2. Peel the paper liner off the exposed sides of each piece of tape and press the stand on a flat
surface until it is secure.

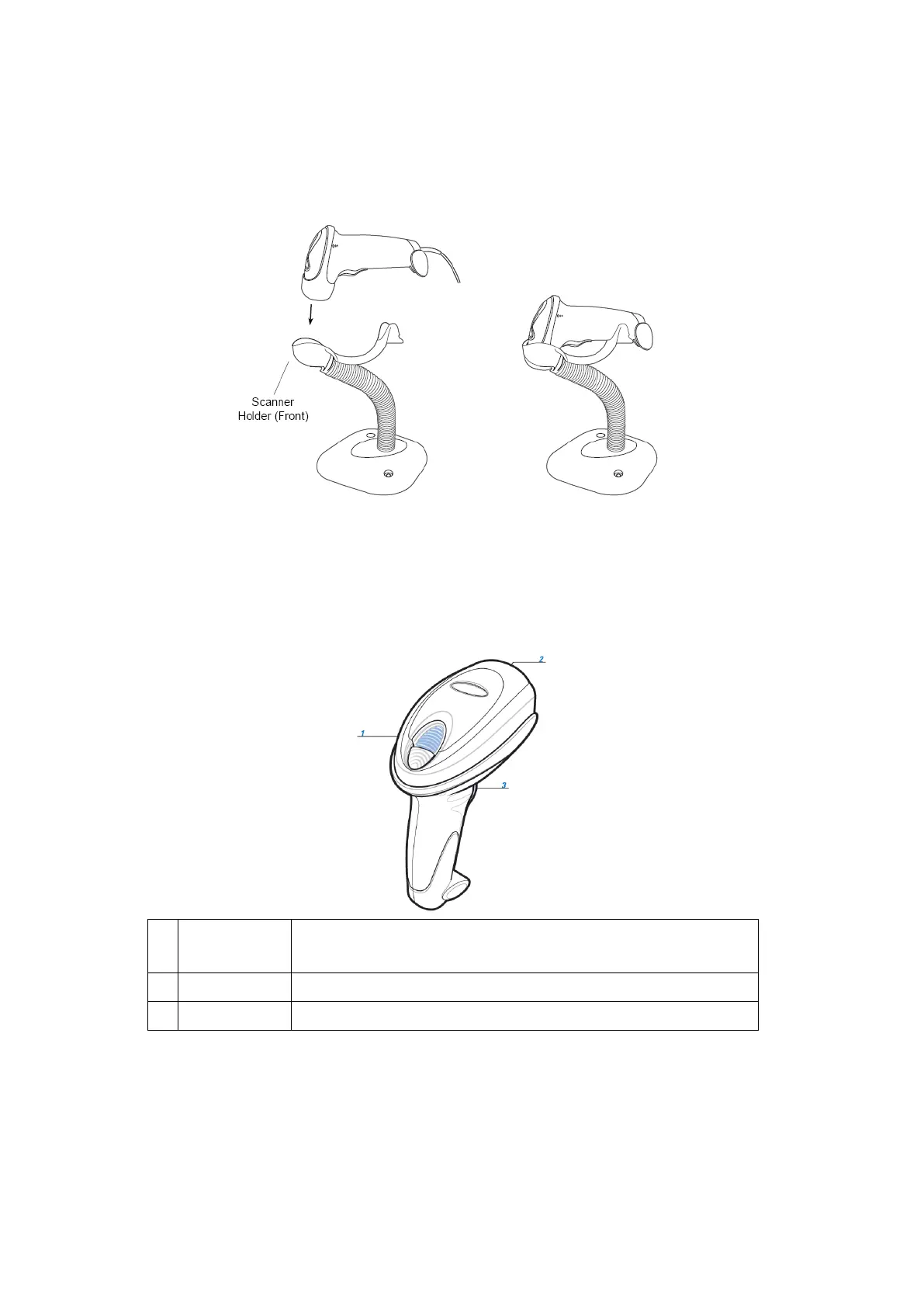

Scanning in Hands-Free Mode
When the reader is seated in the stand’s ―cup‖, the reader’s built-in sensor places the reader in hands-
free mode. When you remove the reader from the stand it operates in its normal hand-held mode.
E.2 2D Barcode Reader (Take DS6707 as an
example)
E.2.1 Overview
1.
LED
Green: A barcode was successfully decoded.
Red: A data transmission error or reader malfunction occurred.
2.
Scan window
Scan the barcode.
3.
Trigger
Press to decode
E.2.2 Setting Up the Digital Imager Reader
E.2.2.1 Installing the Interface Cable
1. Plug the interface cable modular connector into the cable interface port on the bottom of the reader
handle and ensure the connector is properly secure.
2. Connect the other end of the interface cable to the host
