5.14.4 Review/WMS Mode
Review/WMS mode is used by cardiologist to evaluate clips for cardiac wall motion abnormalities.
Different views, from different stages, will be selected to display to compare in a wide variety of
combinations. The most common workflow is to compare ―same views‖ but at ―different stages‖ of
the exam (Example: PSLA view, Rest stage compared to PSLA view, Post exercise stage).
5.14.4.1 Review Mode
1. Select [Review/WMS].

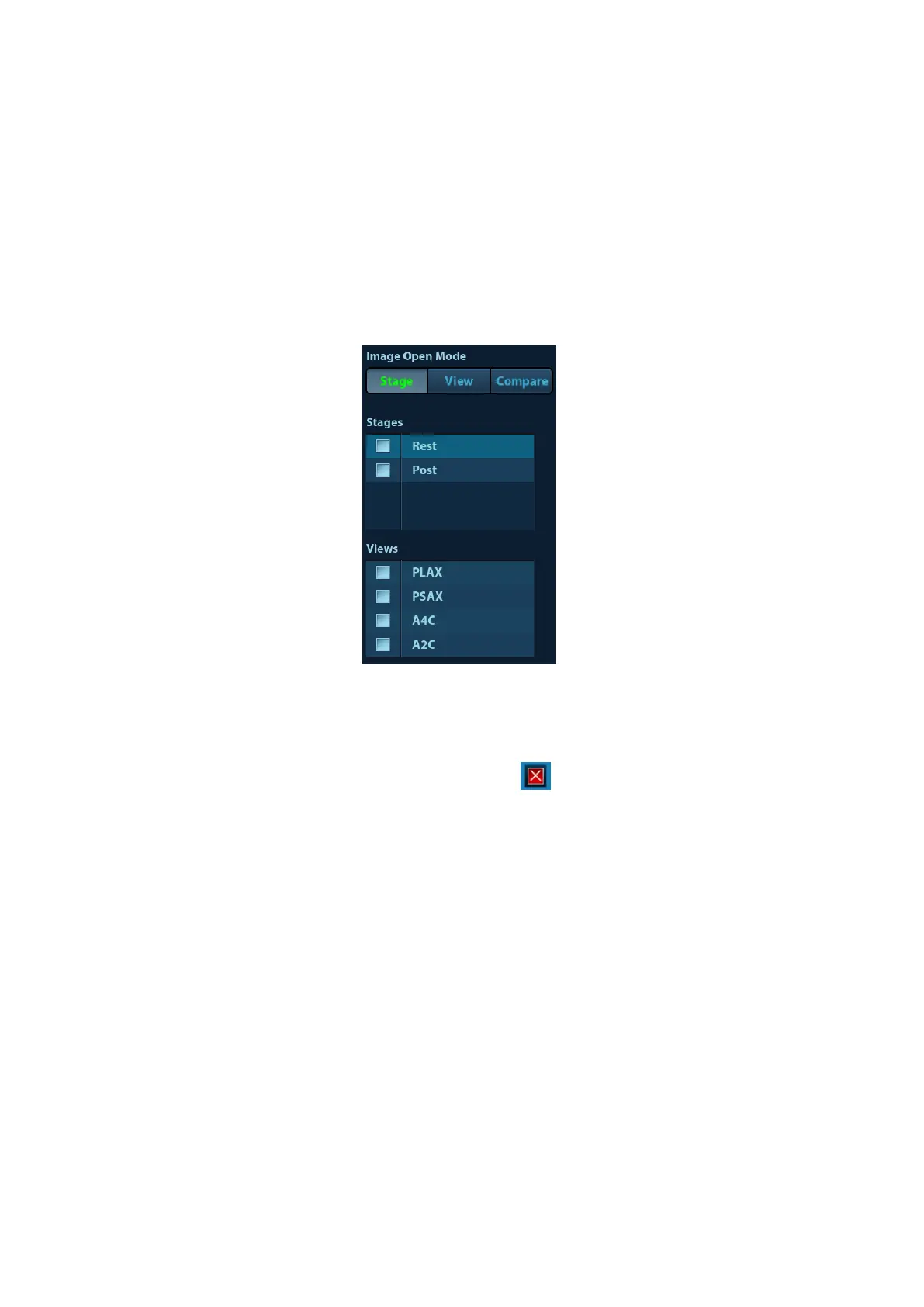

2. Select the label of the phase or view on the right part of the screen.
The system displays all loops that represent the selected phase or view.
To display phases for the selected view(s)
1. To exclude a phase or view from display, select the box to the left of each required phase
and/or view.
The system inserts a red X into each selected box, like .
2. Select [Display Selected] on the touch screen.
The system displays the selected phases for each selected view side by side.
To display all views for a specific phase:
Select the phase label (for example, Rest).
To display all phases for a specific view:
Select the view label (for example, Long Axis).
The system displays all phases for the selected view.
To display a loop in full-screen format:
1. Double-click the loop to display in full-screen format.
2. Double-click the loop again to display the loop in its initial size, select the loop again.
5.14.4.2 Wall Motion Scoring
The WMS-Report lists user-assigned wall motion scores and associated data.
The Wall Motion Score (WMS) measurement is an application prepared for assisting in stress echo
semi-quantitative evaluations of abnormalities with left ventricular wall motion or changes in wall
thickness. The left ventricle is divided into segments to score each segment to evaluate the degree
