Part I Service Scenarios
Update 116

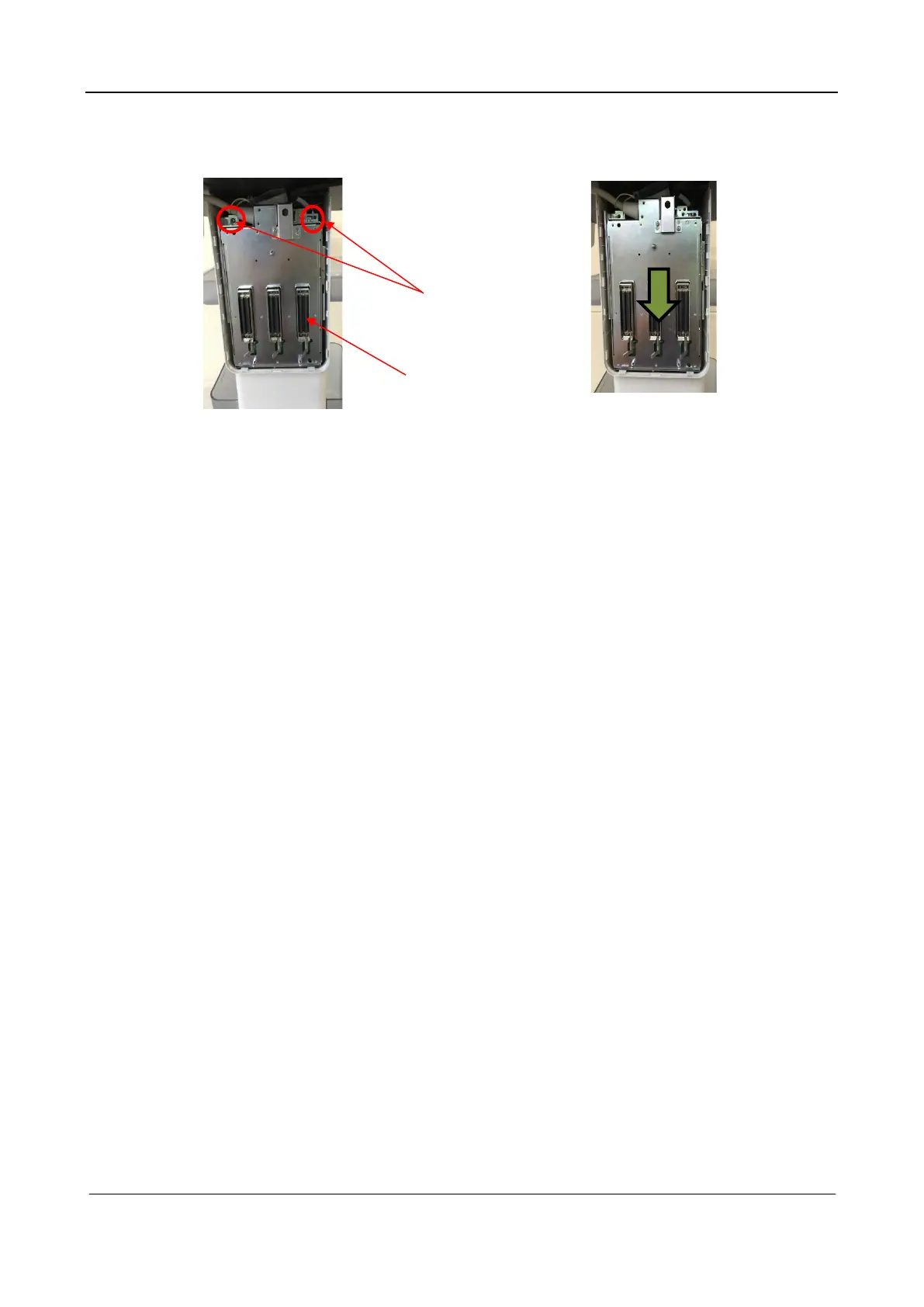

Snap the probe extender into the mounting slot and use a flathead screwdriver (applicable to M4
recessed panhead screws) to tighten the two M4X12 cross recessed panhead screws on the probe
extender.
3. Push the cover plate of the probe extender towards the fasteners.
4.4 Upgrading the Probe and Biopsy Bracket
For details about the information, PN, and warranty number of the probe and puncture trestle supported
by this product, see Part II General Information: 3 Probe and Needle-guided Bracket.
M4X12 cross
recessed panhead
screw (2 pcs)
Extender
