Part II General Information

Field Replaceable Unit 172

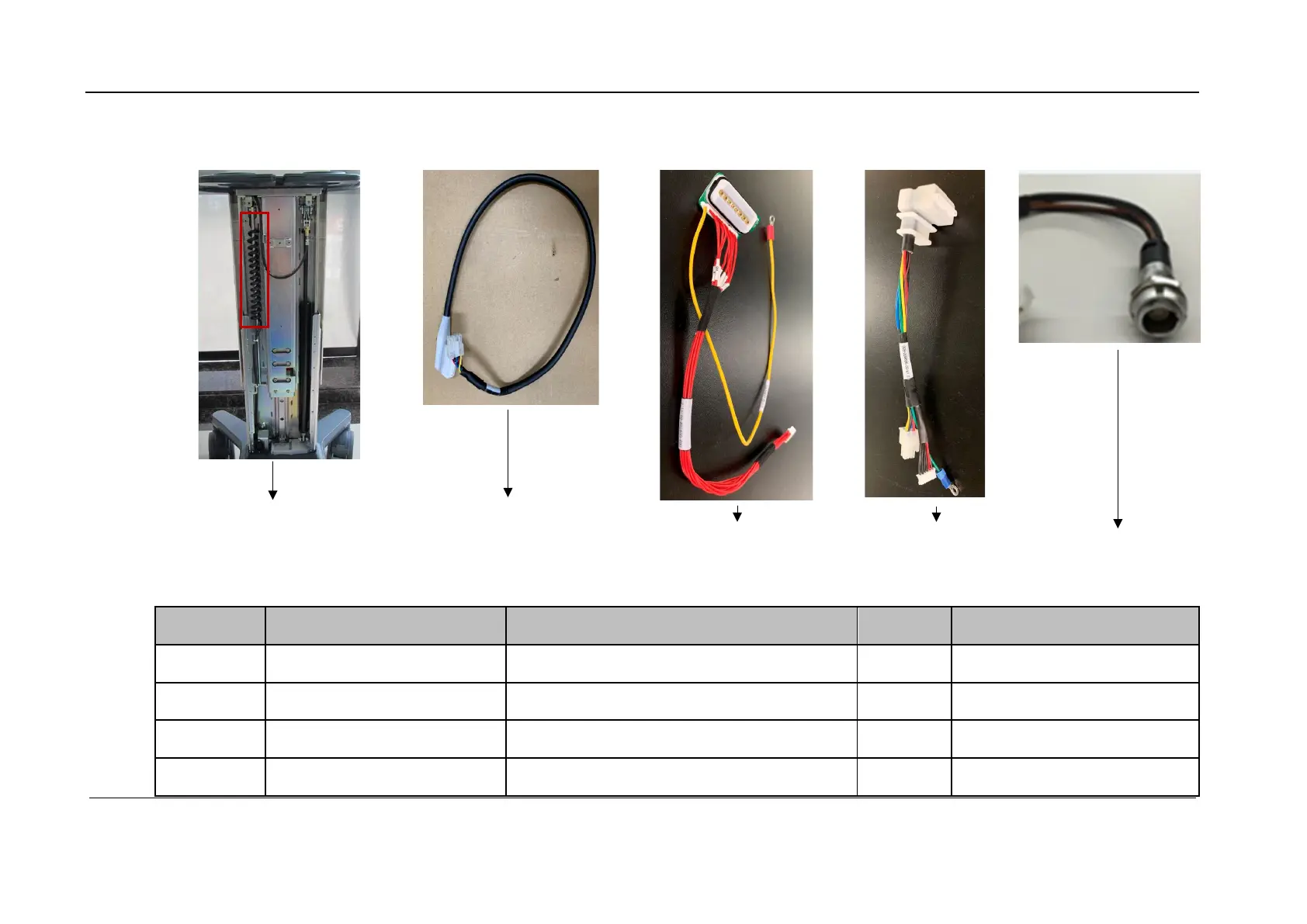

4.2.6 MT3 Mobile Trolley Cable (F0)

No. Order Number Part Name Qty. Remark

F1 009-009403-00 Power Supply Spring Cable(FRU) 1

F2 115-068066-00 DC Input Cable With Magnetic connector(FRU) 1

F3 115-068079-00 Power cable to Battery Pack (FRU) 1

F4 115-068080-00 Battery Pack Output Cable(FRU) 1

F3 F4
