Part II General Information

Structure and Assembly/Disassembly 187

10. Hard disk drive

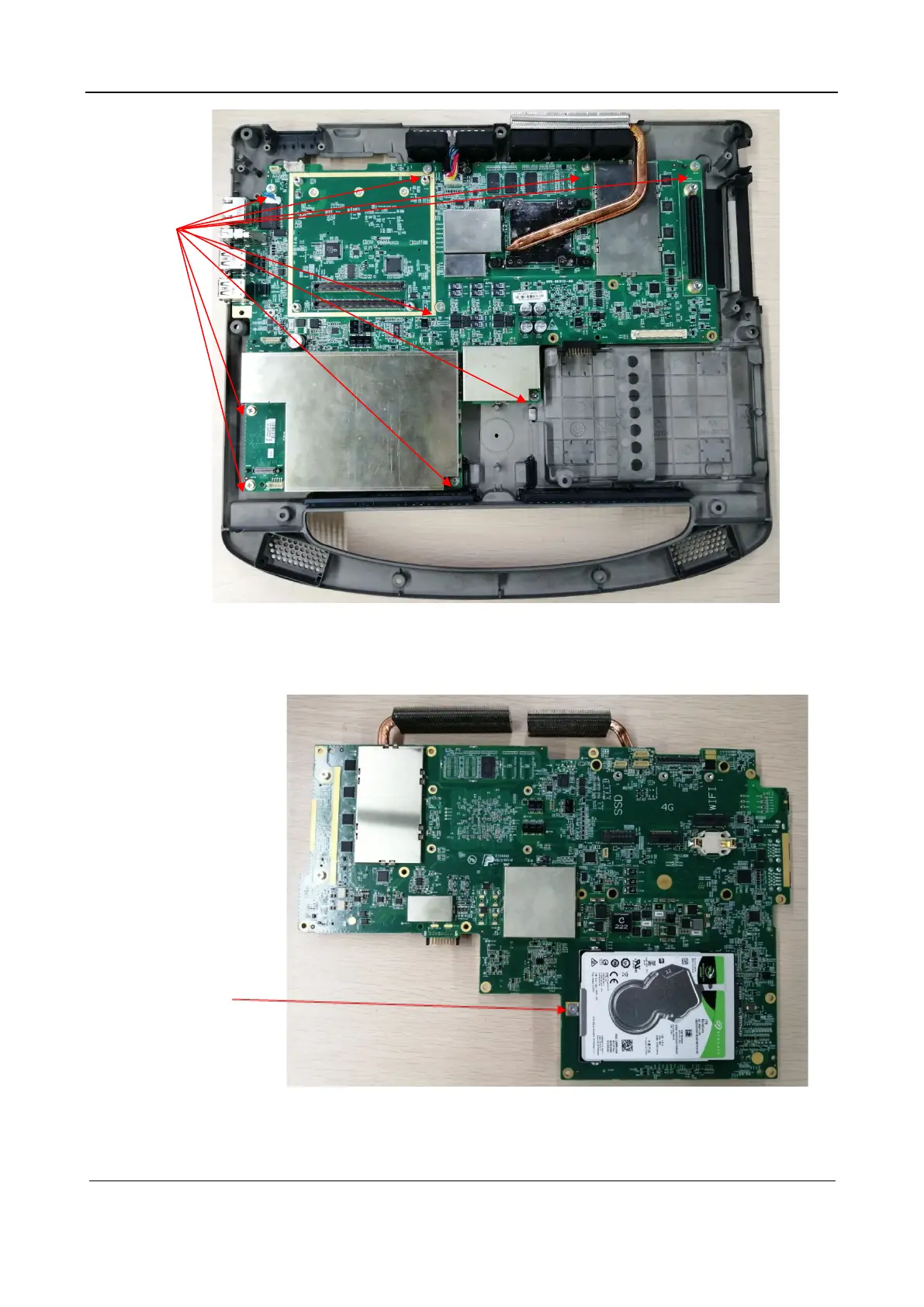

Use a screwdriver to remove the M3X5 cross recessed flathead screw and take off the hard disk

drive.

11. Fan

a Use a screwdriver to remove the M3X5 cross recessed flathead screw and take off the cable

crimp.

M3X5 cross recessed

flathead screw

M3X5 cross recessed

flathead screw
