Part II General Information
Structure and Assembly/Disassembly 212

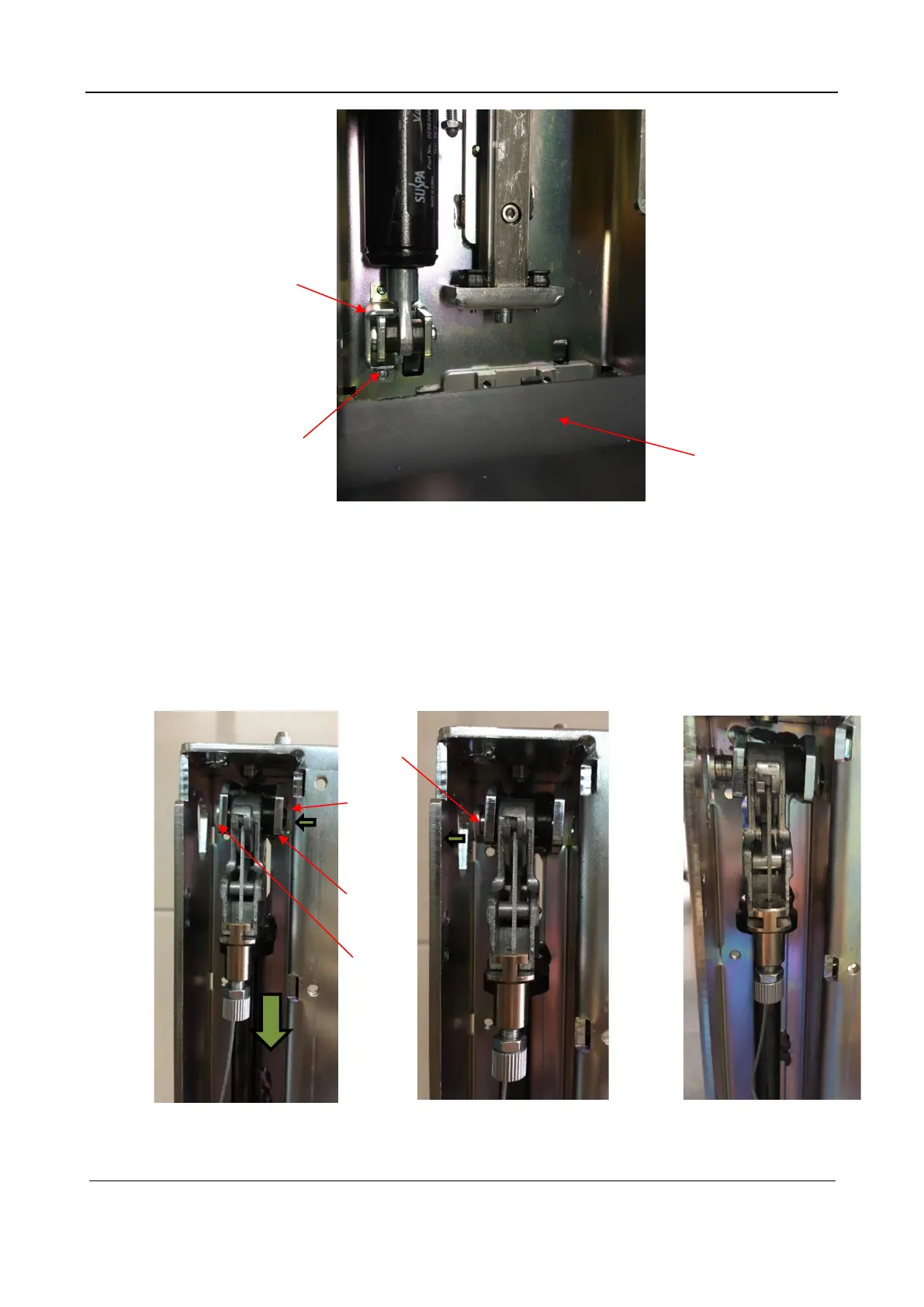

d Remove the upper gas spring pin.
Pull the guy-wire to press down the gas spring and ensure that the gas spring is lower than the
highest point by 10–20 cm.
Use a flathead screwdriver to pry the pin part exceeding the fixing block from the tail of the
pin, until the tail of the pin totally enters into the right hole on the fixing block. At this time, a
slot appears at the pin head.
Continue to pry the pin from this slot by using the flathead screwdriver until the pin falls off
the right hole on the fixing block (no need to fall off the fixing block).
e Remove the lower gas spring pin.
M3X8 cross
recessed panhead
screw (1 pcs)
Lower positioning
plate
Upper cover of
the base
Fixing block
Pin tail
Pin head
Slot of the
pin head
1
2
3
