8-26 Field Replaceable Unit

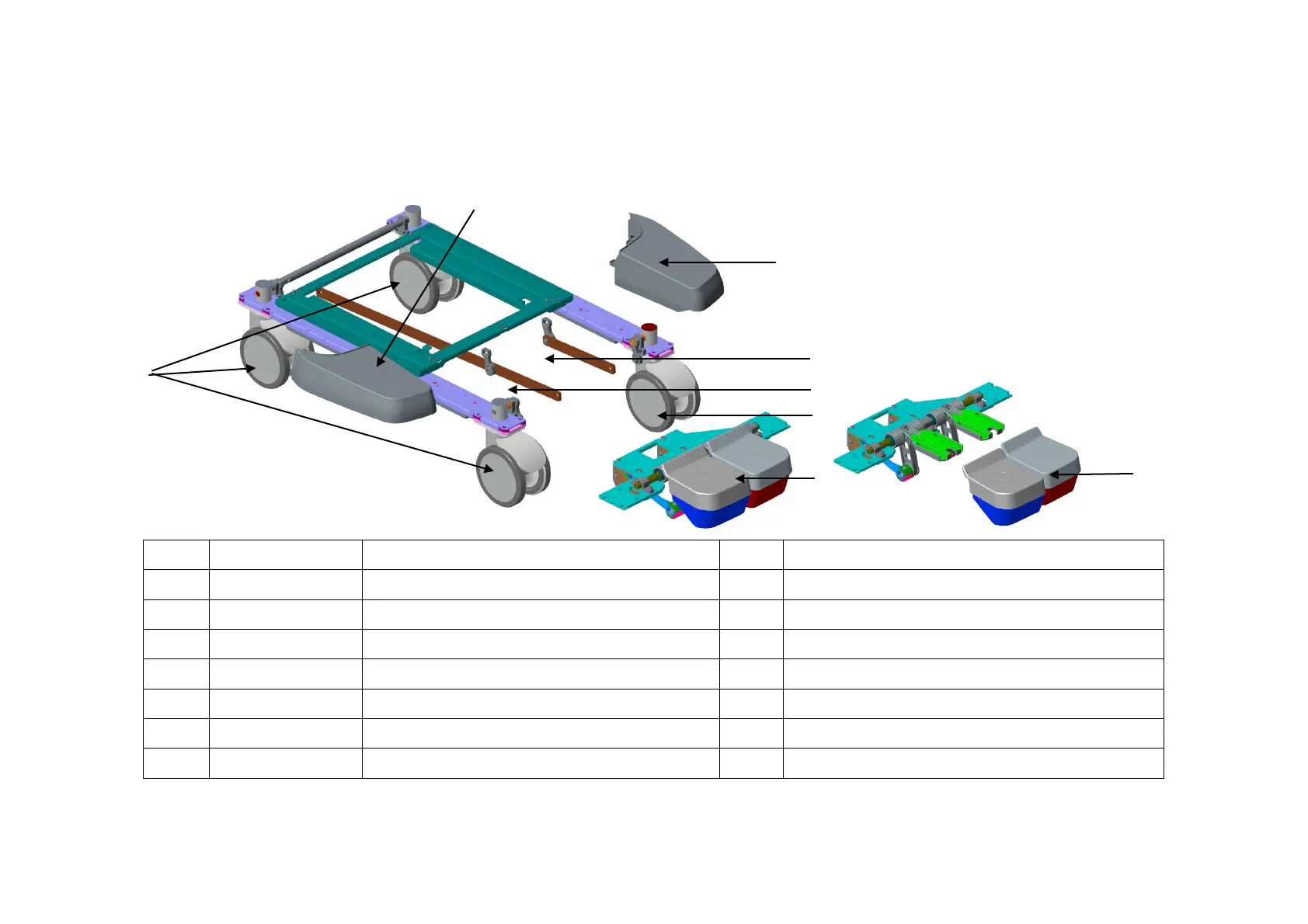

8.2.6 Base Assembly (F0)

No.

Order Number

Part Name

Qty.

Remark

043-005034-00

left pedal cover

043-005035-00

right pedal cover

115-030157-00

Right brake rod assembly

115-030158-00

Left brake rod assembly

F5 034-000416-00 Straight line Caster 1

F6 034-000415-00 Full lock Caster 1

F7 115-033610-02 Central brake assembly(V2.0/FRU) 1

F7-1
