Mindray Nuewa R9 Elite

Structure and Assembly/Disassembly 9-57

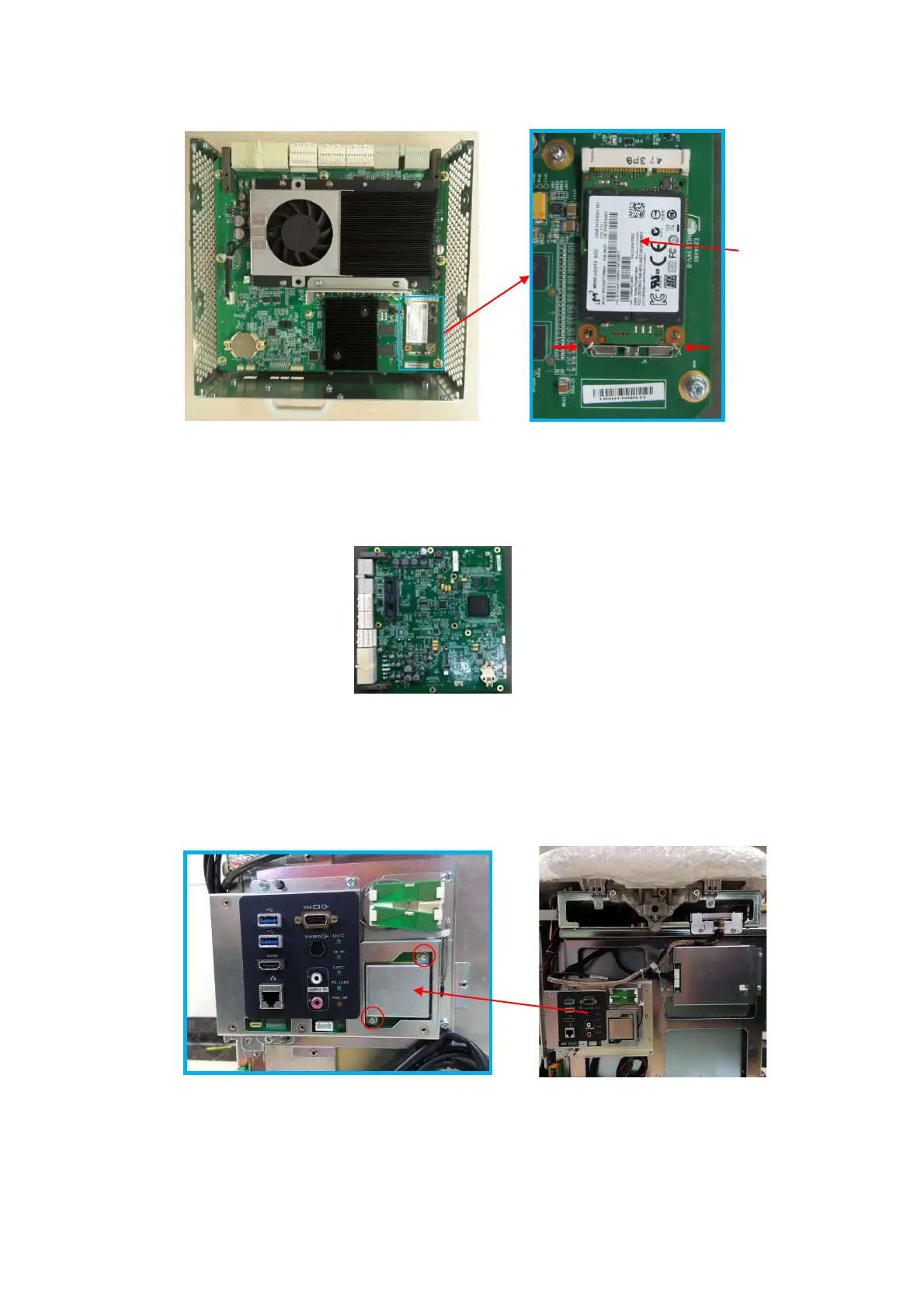

9.3.25.6 PC Carrier Board
1. See Chapter 9.3.25, 9.3.25.2, 9.3.25.3, 9.3.25.4 and 9.3.25.6 for details.
2. The rest (including button battery) is PC carrier board (FRU)
9.3.26 Wireless Net Adapter
1. See 9.3.16 for details.
2. Unscrew 2 M3 X 8 cross panhead screws from the shield cover of the wireless net adaptor with
the screwdriver (M3, M4) to remove the shield cover.
3. Unplug 2 cable connectors from the wireless net adaptor.
SSD
PC carrier board
(FRU)
