9-56 Structure and Assembly/Disassembly
9.3.25.4 CPU Module

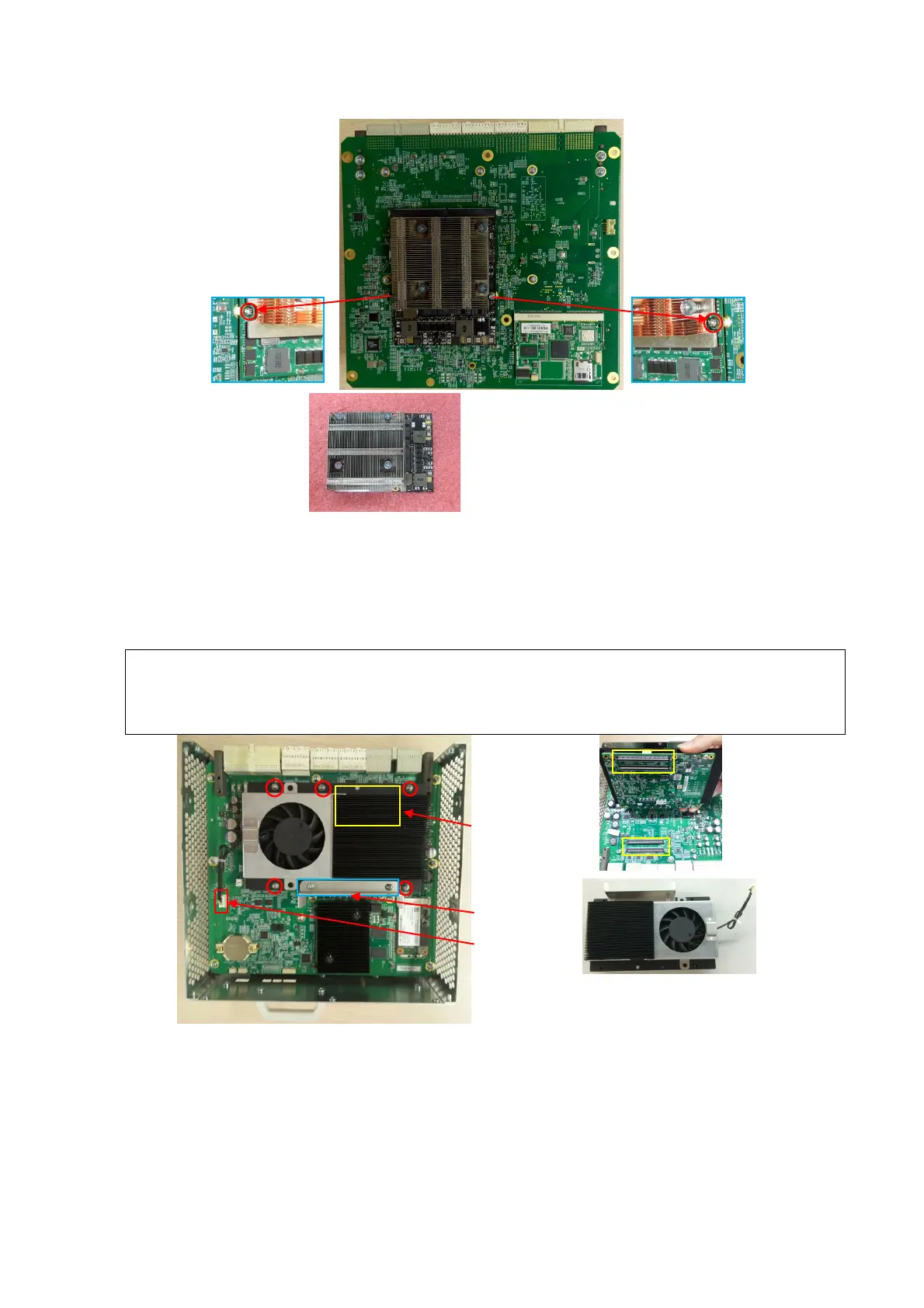

1. See Chapter 9.3.25 for details.
2. Unplug fan cable. Unscrew 5 M2.5 X 20 cross panhead screws with screwdriver (M3, M4) to
remove CPU module. Pull the fan cable of the CPU module (FRU) from PC main board
assembly.
Note:
Pry the edge where the metal is in the CPU assembly as shown in the figure. Lift it
upward after one socket becomes loosen. Align the pin with the socket, and the screw
holes when installing reversely. Press the yellow square to plug the CPU assembly into
the slot.
9.3.25.5 SSD
1. See Chapter 9.3.25 for details.
2. Press the clip to remove the SSD towards the arrow’ direction.
GPU module (FRU)
Pry the edge
Flexible area
Fan cable
GPU module (FRU)
