Structure and Assembly/Disassembly 9-61
3. Unscrew 11 M4 X12 cross panhead screws with the screwdriver (M3, M4) and pull the probe
board assembly (FRU).
9.3.31 Electronics Assembly on the Base
The disassembly tool: cross-headed screwdriver (M3, M4), inner hexagonal wrench, diagonal
cutting pliers,
anti-electrostatic glove
1. See 9.3.16, 9.3.17, 9.3.18, 9.3.19, 9.3.20 and 9.3.22 for details.
2. Cut 2 tie cables CHS-3X150 and one tie cable CHS-4X100 with the diagonal cutting pliers.

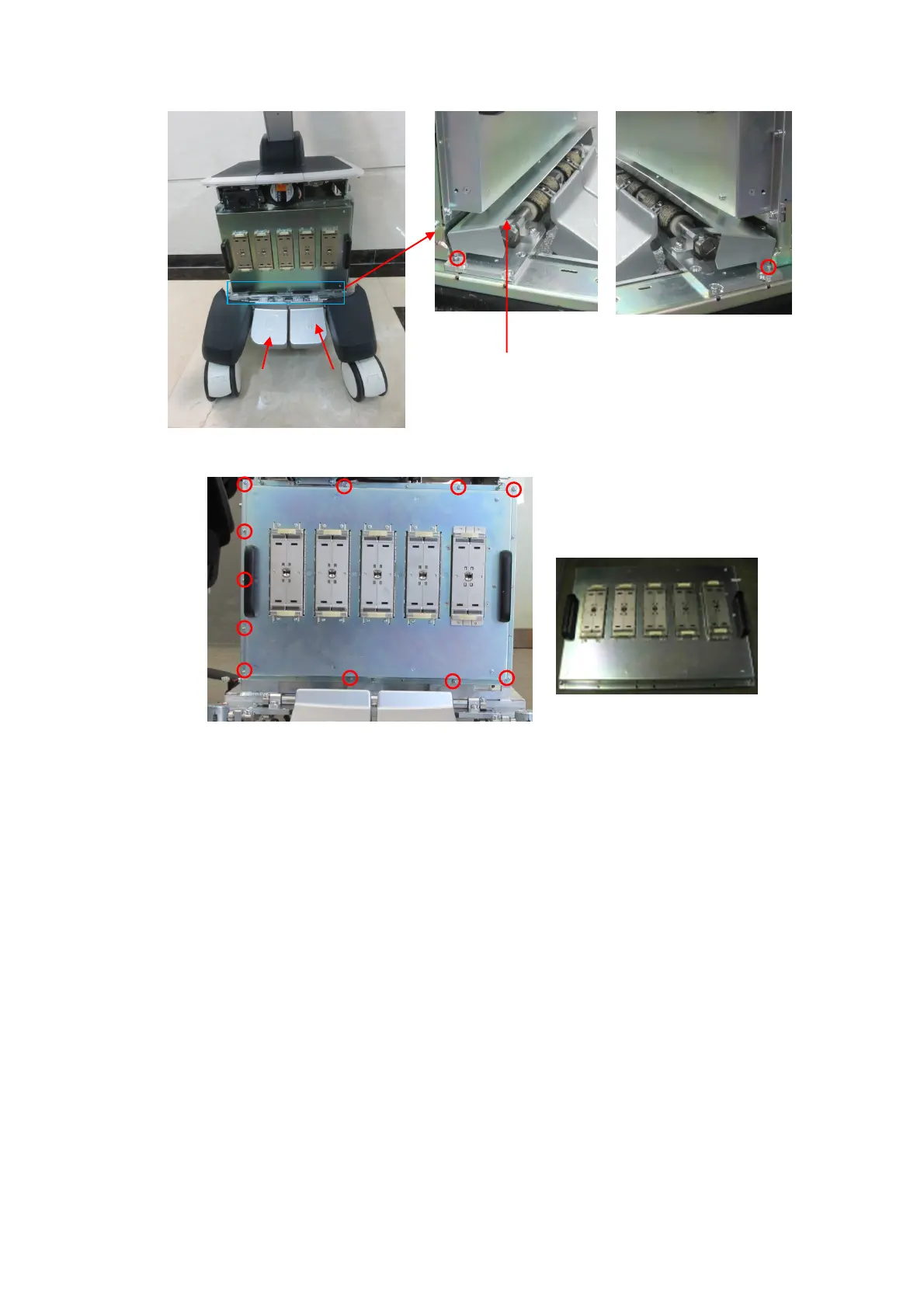

Probe board assembly
(FRU)
Protective board
Brake pedal
W
alking pedal
