Mindray Nuewa R9 Elite User Manual

Structure and Assembly/Disassembly 9-5

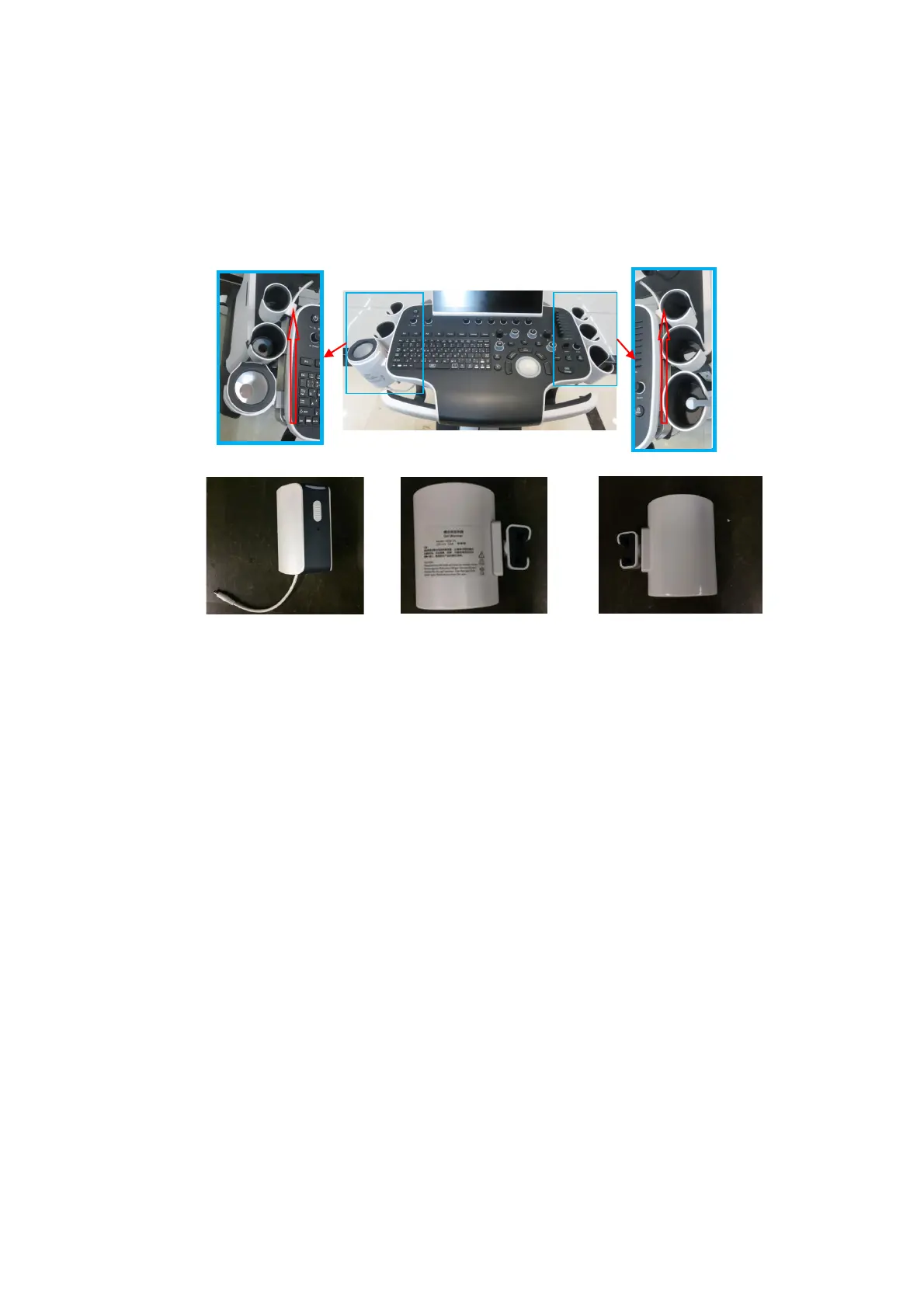

9.3.1 Large/Small Probe Holders, Left Bracket of Coupling
Gel Heating cup, Intracavitary Probe Holder
1. Remove the probe holder in the order of 4D probe, large probe holder, coupling gel heating cup
and small probe holder along the arrow’s direction.
2. Unscrew 2 M4 X 12 cross panhead screws with screwdriver (M3, M4) to remove intracavitary
probe bracket.
Small probe holder
L
arge probe
holder
L
eft bracket of
the
coupling gel
heating cup
Small probe
holder
Large probe
holder
4D probe
holder
Coupling gel heating
cup 12V 12W
Left bracket of the
coupling gel heating cup
Right bracket of the
c
oupling gel heating cup

Mindray Nuewa R9 Elite Specifications

General

Brand	Mindray
Model	Nuewa R9 Elite
Category	Diagnostic Equipment
Language	English
