Structure and Assembly/Disassembly 9-29

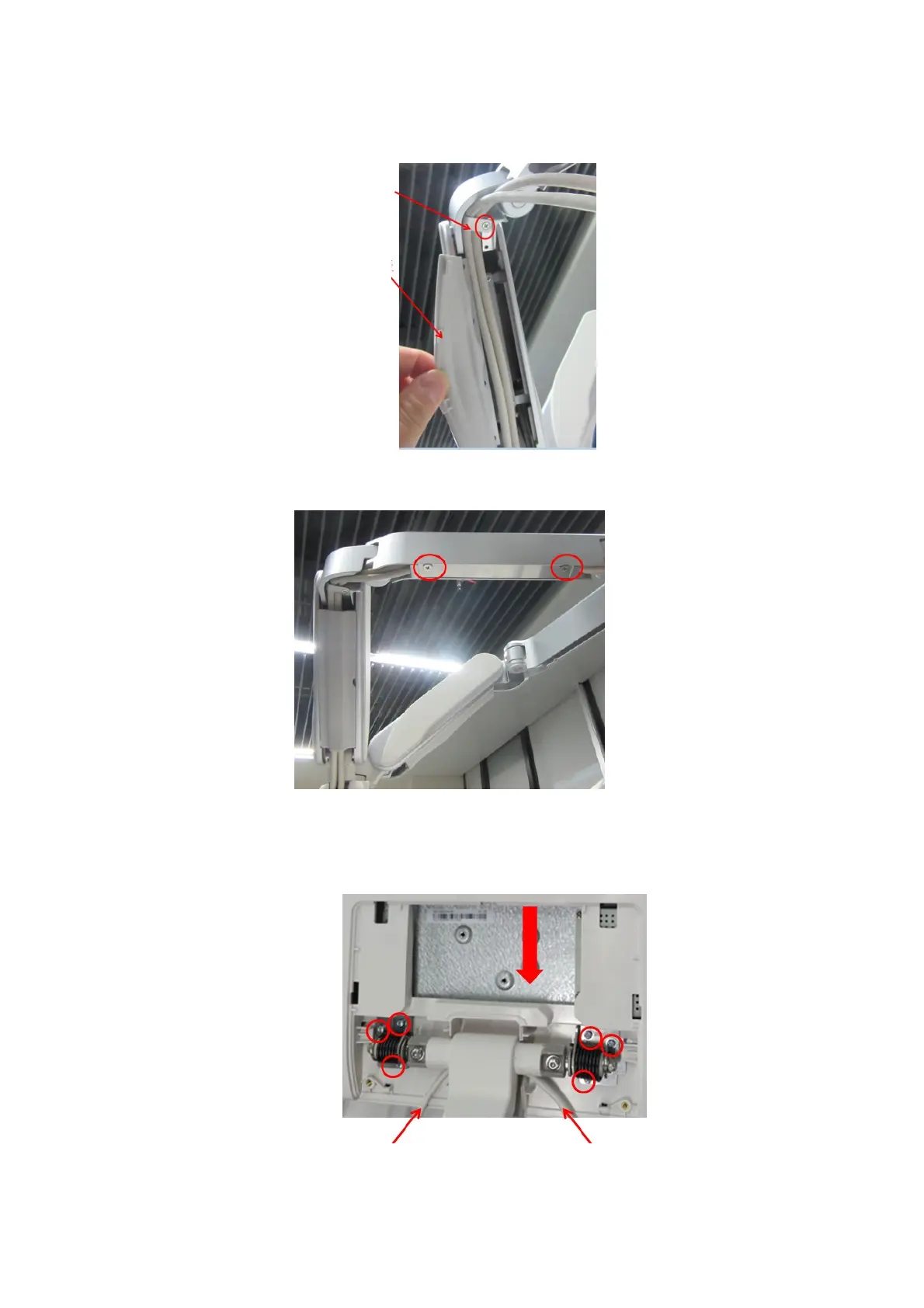

4. Open the bottom decorative cover of the left lifting arm as shown in the figure, tidy the display
signal line and power cord, and fasten the crimping plate with the M3x8 countersunk screw.
5. After tidying the display power cord and signal line, fasten the lower cover of the support arm to
the left floating arm with two M3x8 screws.
6. Hold the display in the direction shown in the figure so that the damper shaft is inserted in the
two mount holes and two mount strips on the rear cover of the display to hook the display. Then
use six M4x12 cross panhead screws to fix it and route the signal line on the left and the power
cord on the right.
Crimping
plate
Bottom
decorative
Signal line
Power cord
To Next Page
