Mindray Nuewa R9 Elite User Manual

Structure and Assembly/Disassembly 9-65

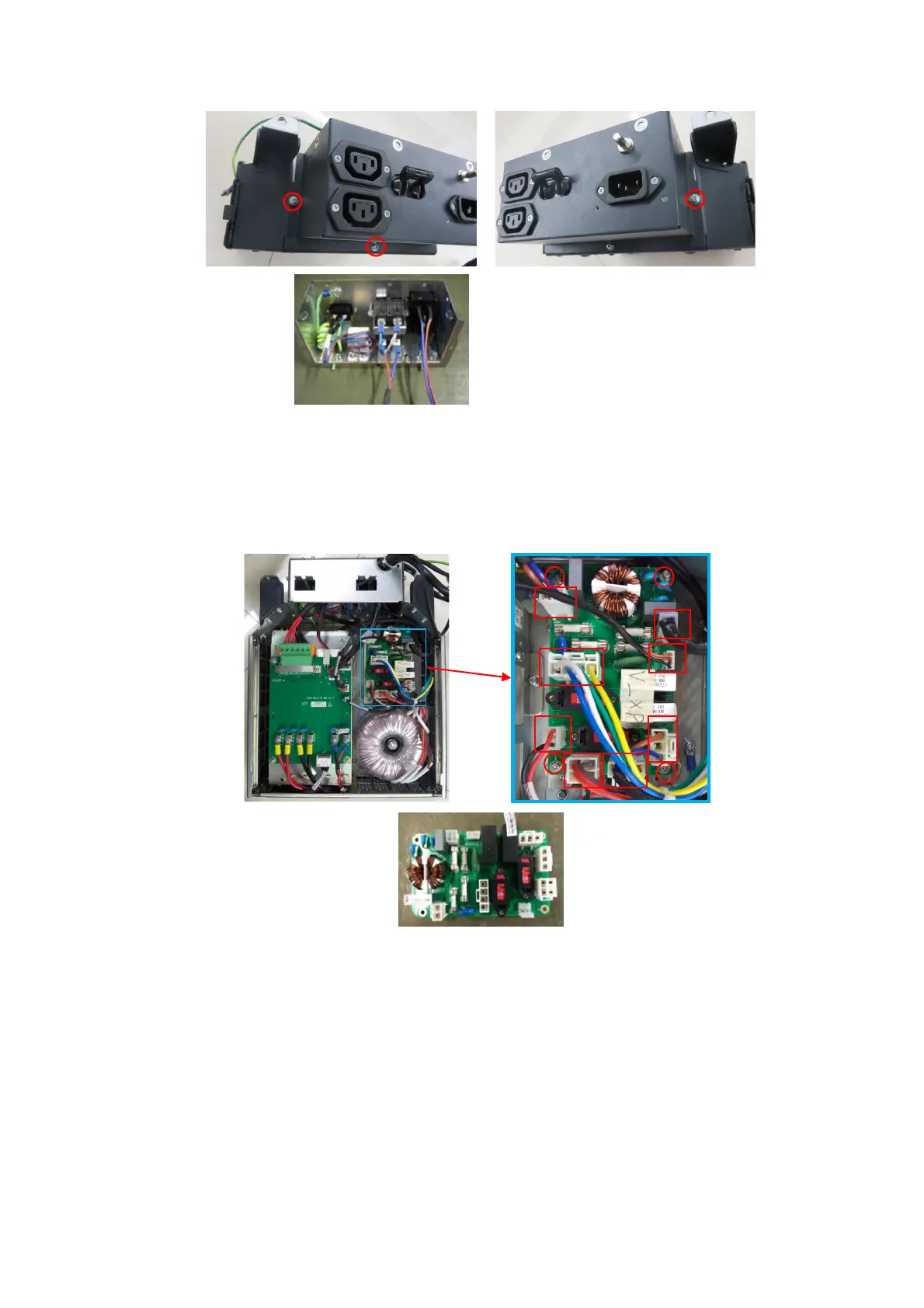

9.3.31.2 AC Connection 220V/AC Connection 110V
1. See Chapter 9.3.31 for details.
2. Unplug 8 plugs shown in the following figure from the AC connection board. Unscrew 4 M3 X8
cross panhead screws from AC connection board with the screwdriver (M3, M4) to remove the
board (FRU).
9.3.31.3 5V Board Assembly
1. See Chapter 9.3.31 for details.
2. Unplug 8 plugs shown in the following figure from the AC connection board and AC power
assembly. Unscrew 4 M3 X8 cross panhead screws from AC connection board with the
screwdriver (M3, M4) to remove the 5V module assembly.
AC connection 220V or 110V (FRU)
The power input assembly (FRU)
