Structure and Assembly/Disassembly 9-67

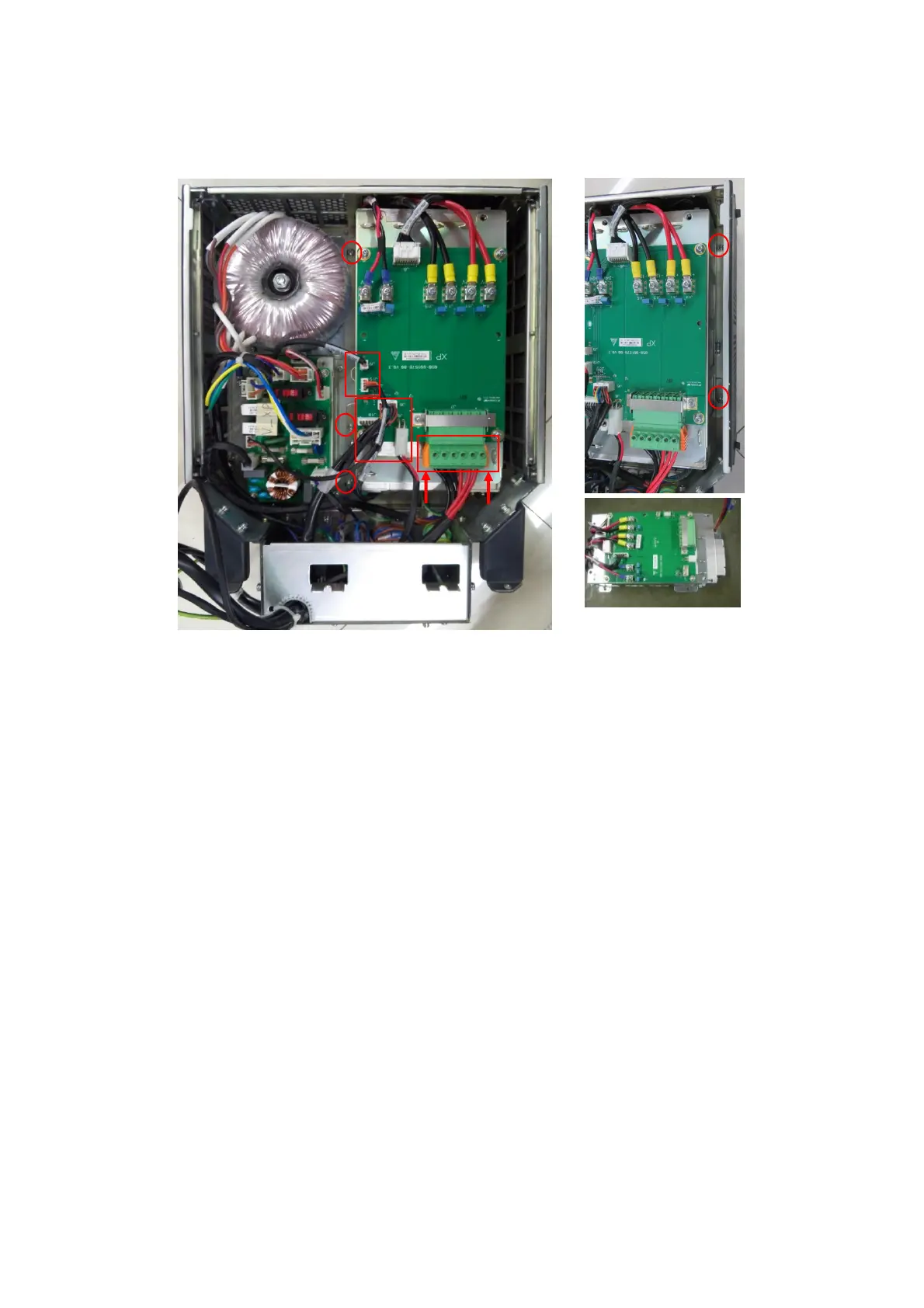

2. Unplug 6 cables from the AC power assembly. Unscrew 4 M4 X8 cross panhead screws and
one M4 X 8 panhead screw from the AC power assembly to remove the AC power assembly
(FRU).
9.3.31.5 Transformer
1. See Chapter 9.3.31 for details.
2. Unscrew one M4 X 8 cross panhead screw and 4 M4 X 8 cross panhead screws from the
grounding terminal of the transformer with the screwdriver (M3, M4) to remove the transformer
(FRU).
AC power assembly
(
FRU)
