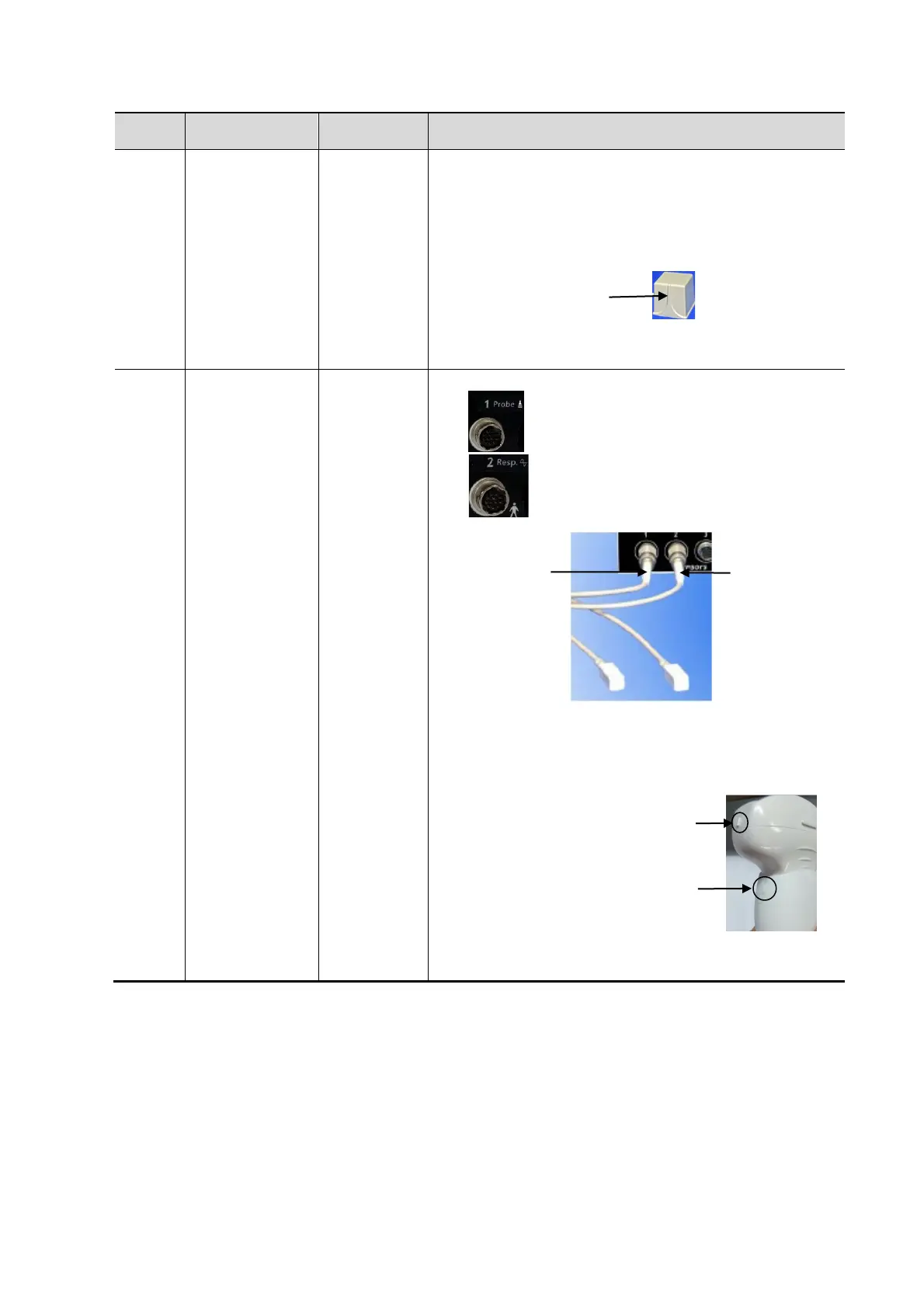

Mindray Nuewa R9 Elite User Manual

Structure and Assembly/Disassembly 9-99
No. Device Name Port Description
<3>
Magnetic
generator
Transmitter
port
Plug the magnetic generator to the Transmitter port.
Place it around the patient’s shoulder or two sides of the
patient’s abdomen. The magnetic generator should be
frontal-faced with the lesion. The frontal face of the
magnetic generator keeps 20-60 cm from the target
within the scope 30 cm up/down and 28 cm left/right.
NOTE: keep the magnetic generator away from the
metal devices or electromagnetic interference.
<4>~<
8>
Sensor (2),
Positioning
(probe)
navigation
support
Motion
(abdomen)
sensor support
Positioning
(probe)
sensor port
Motion
(abdomen)
sensor port
1. Plug two sensors to positioning (probe) sensor port
, and motion (abdomen) sensor port
respectively.
2. Positioning (probe) navigation support: fix the
support to the probe. See the method below:
 The plastic markers on the probe and on the
navigation support must be on the same side.
 The silk prints on the probe and the navigation
support must be on the same side.
Marker on the support
Marker on the probe
Positioning
(probe)
sensor port
Motion
(abdomen)
sensor
port
Front
