Mindray P7-3T User Manual

TransducerControlsandInspection
Operator's Manual 19

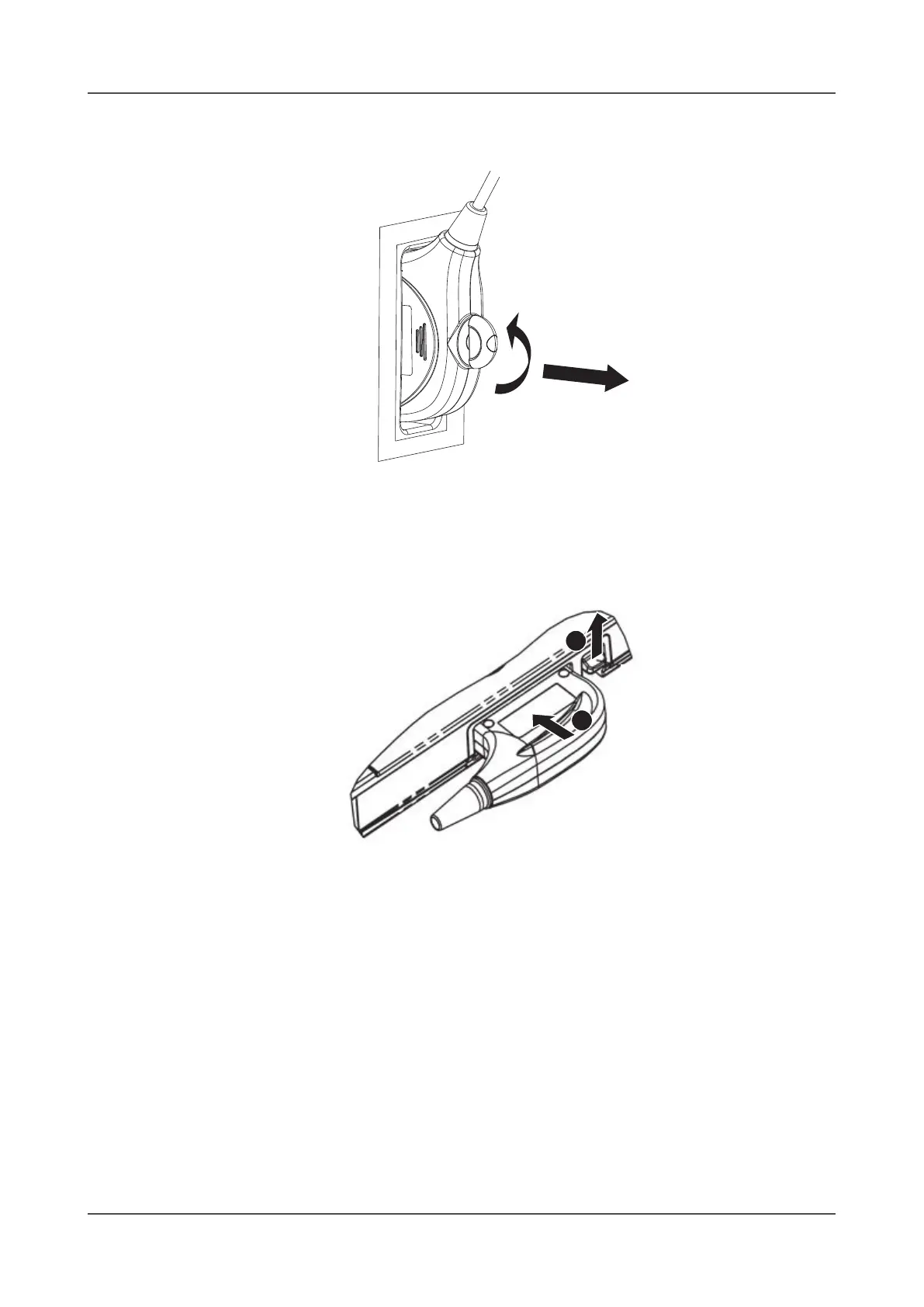

Disconnecting the Transducer
Turnthelockhandle90°anticlockwisetoreleasethetransducer,andpullitoutstraight.
3.2.2 TEE Transducer Connector without Lock Handle
Connecting the Transducer
1. InserttheTEEtransducerconnectorintothesystemport,thenpressinfully.
2. Togglethelockinglevertothelockposition.
1
2
Disconnecting the Transducer
1. Afterfreezingorturningofftheultrasonicdiagnosticsystem,togglethelockingleverto
theunlockpositiontounlocktheconnectoroftheprobe.
2. Pulltheprobeconnectorstraightoutasshowninthegurebelow.
