Mindray PM-60 Service Manual

2-10
2.3.4 SpO
2
Module
The SpO
2
module measures oxygen saturation and pulse rate and offers Pleth wave and
perfusion strength. It also offers motion and poor perfusion proof, detects status and fault,
and communicates with the main control unit.
The SpO
2

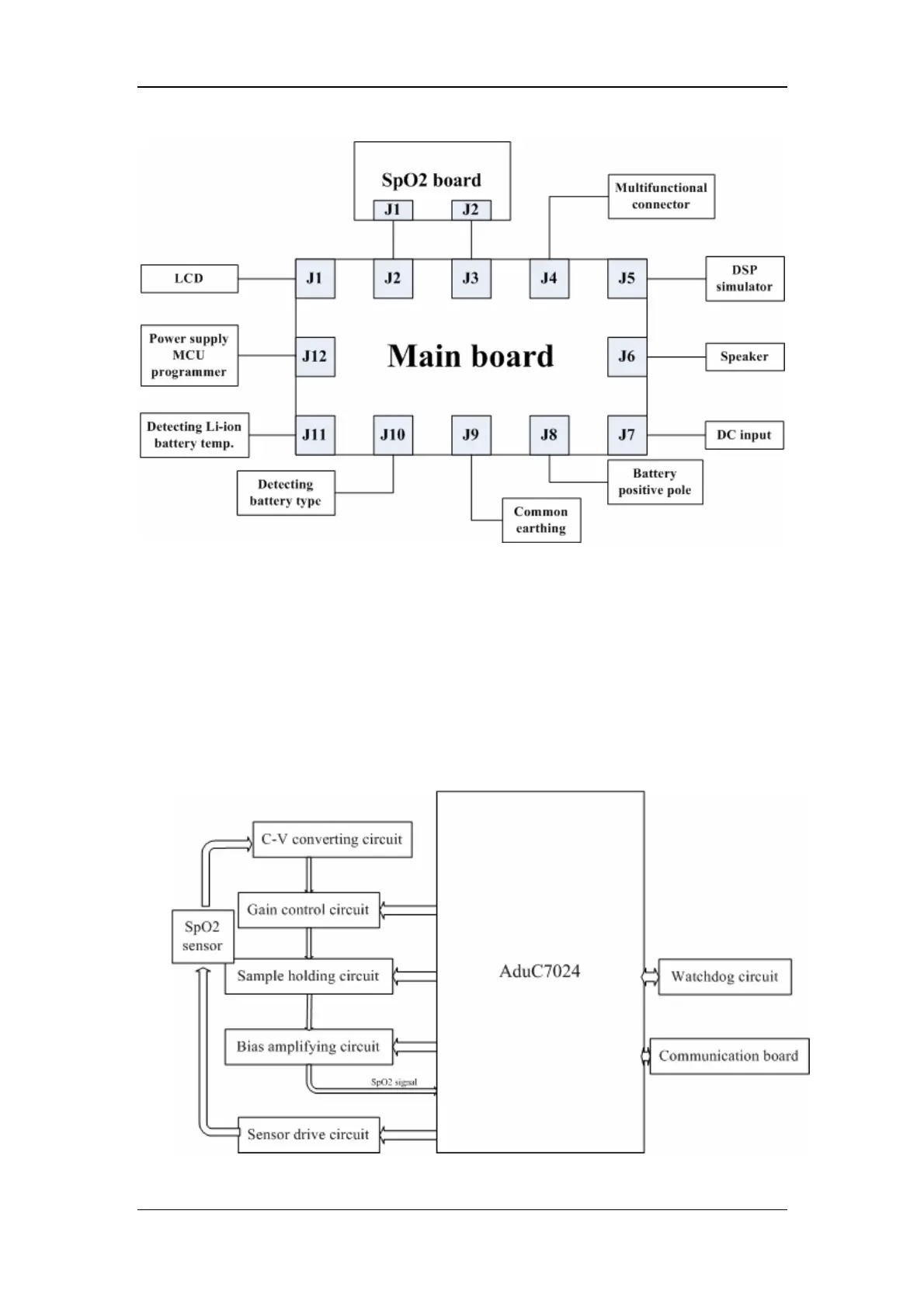

module block diagram is shown below:

Mindray PM-60 Specifications

General

Data Storage	Up to 72 hours of trend data
Device Type	Handheld Pulse Oximeter
Display	TFT LCD
Measurement Range	SpO2: 0-100%
Power Supply	AC Adapter
