Mindray PM-60 Service Manual

6-2
6.2 Main Unit

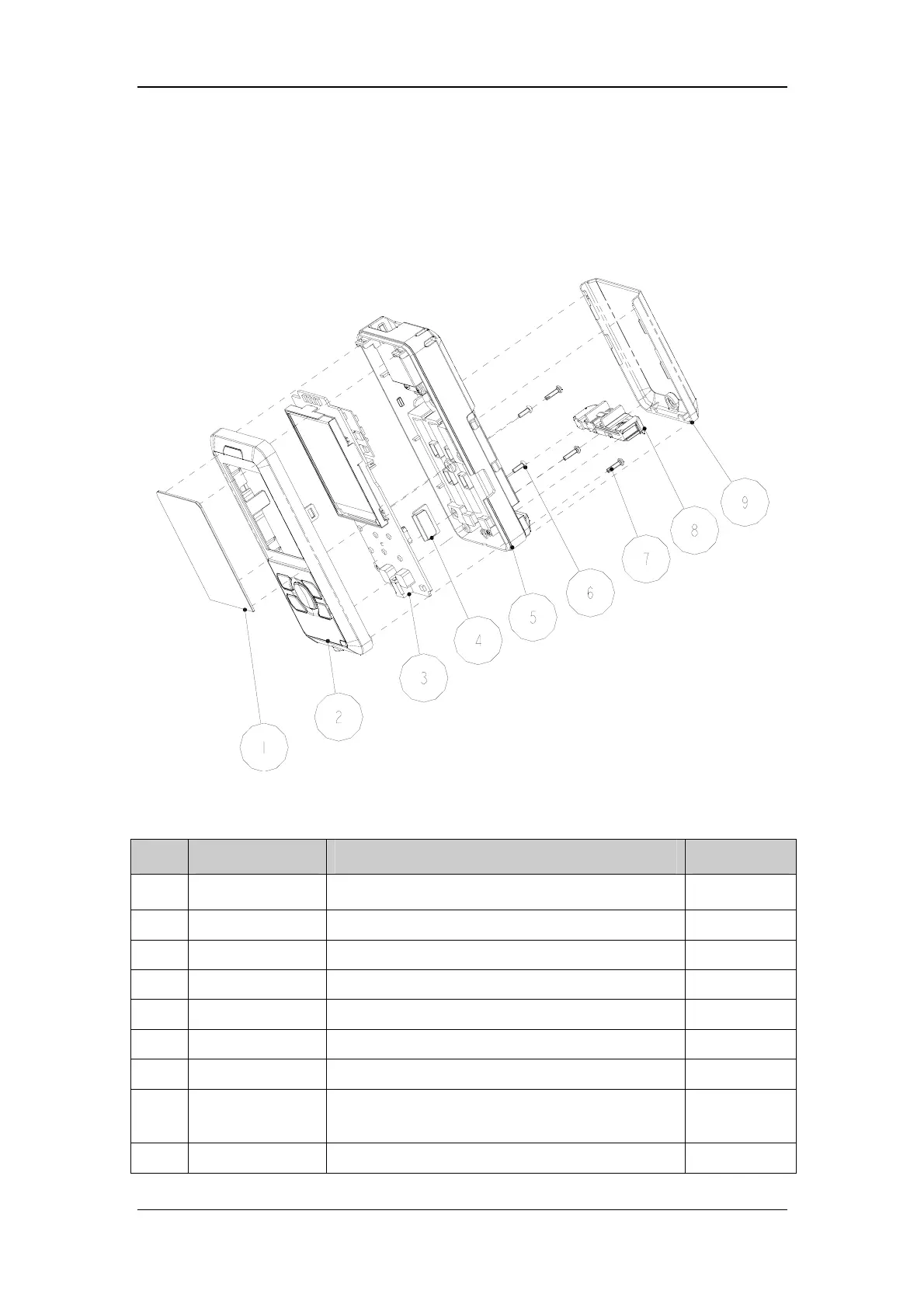

Exploded View
Parts List
SN P/N Description Qty
1 0852-20-77413 Screen lens 1
2 0852-30-77449 Front panel assembly 1
3 0852-30-77450 Main unit assembly 1
4 0852-20-77409 IR lens 1
5 0852-20-77452 Rear Cover assembly 1
6 M04-002405--- Crosshead screw M2X6 2
7 M04-051060--- Tapping screw PT2X8 3
8 0852-30-77451
Battery adjusting bracket assembly (for AA size
batteries)
1
9 0852-20-77411 Battery door 1
