Image Optimization 5-121
No. Device Name Port Description

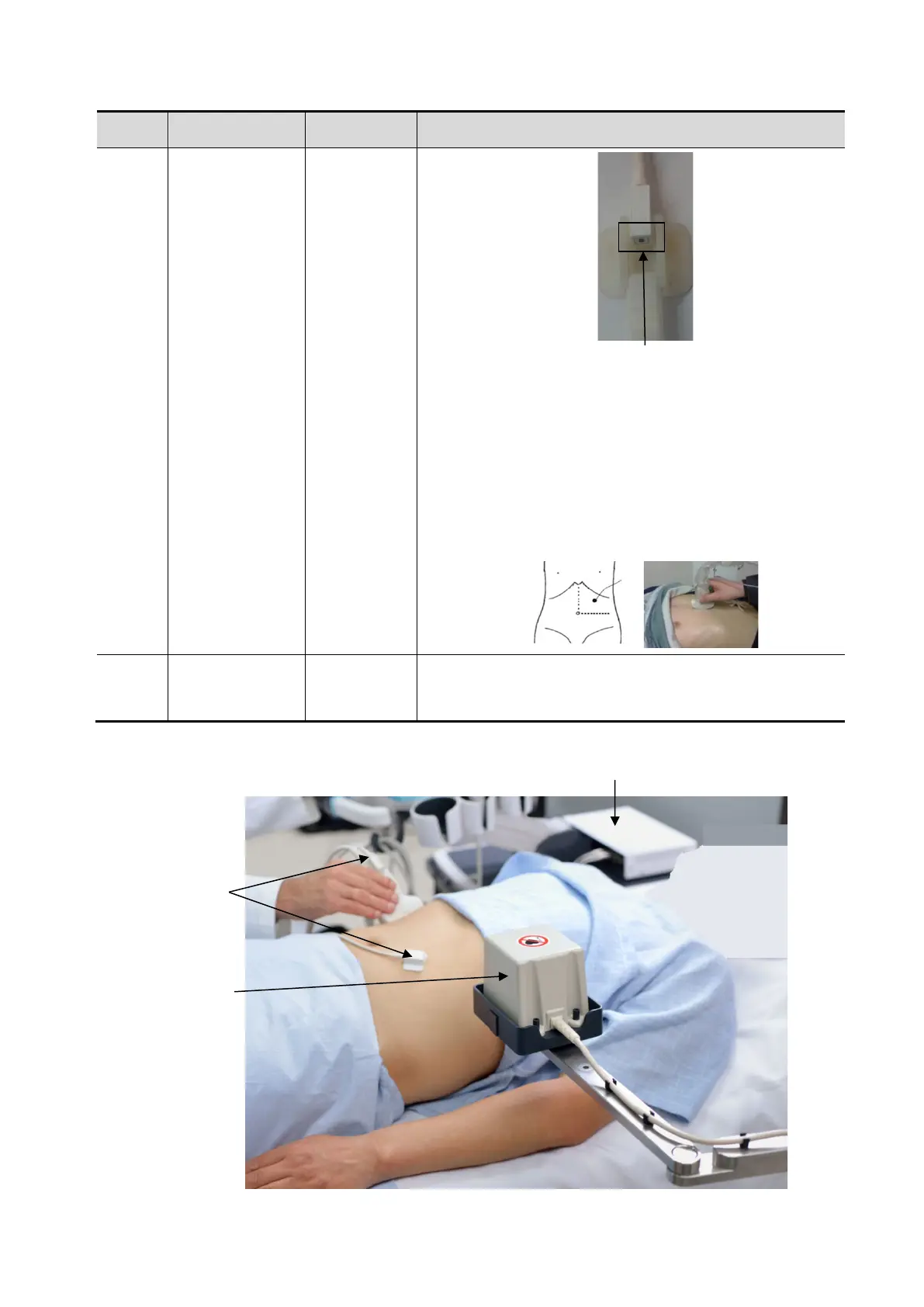

6. Motion (abdomen) sensor sterile sheath: wear the
sterile sheath after abdomen sensor and positioning
(probe) navigation support are installed.
7. Motion (abdomen) sensor support: stick the sensor
support against the top left of the patient’s abdomen
with the medical plasters (below left costal arch,
right above the navel, the area where the skin
moves apparently with the respiration).
<10>
Magnetic
navigator
/
Place the magnetic navigator behind the Ultrasound
System. Power on the navigator to enable the
positioning function.
Magnetic devices positioning:
Face downward
Sensor
Magnetic
Magnetic navigator
