3-6 System Preparation

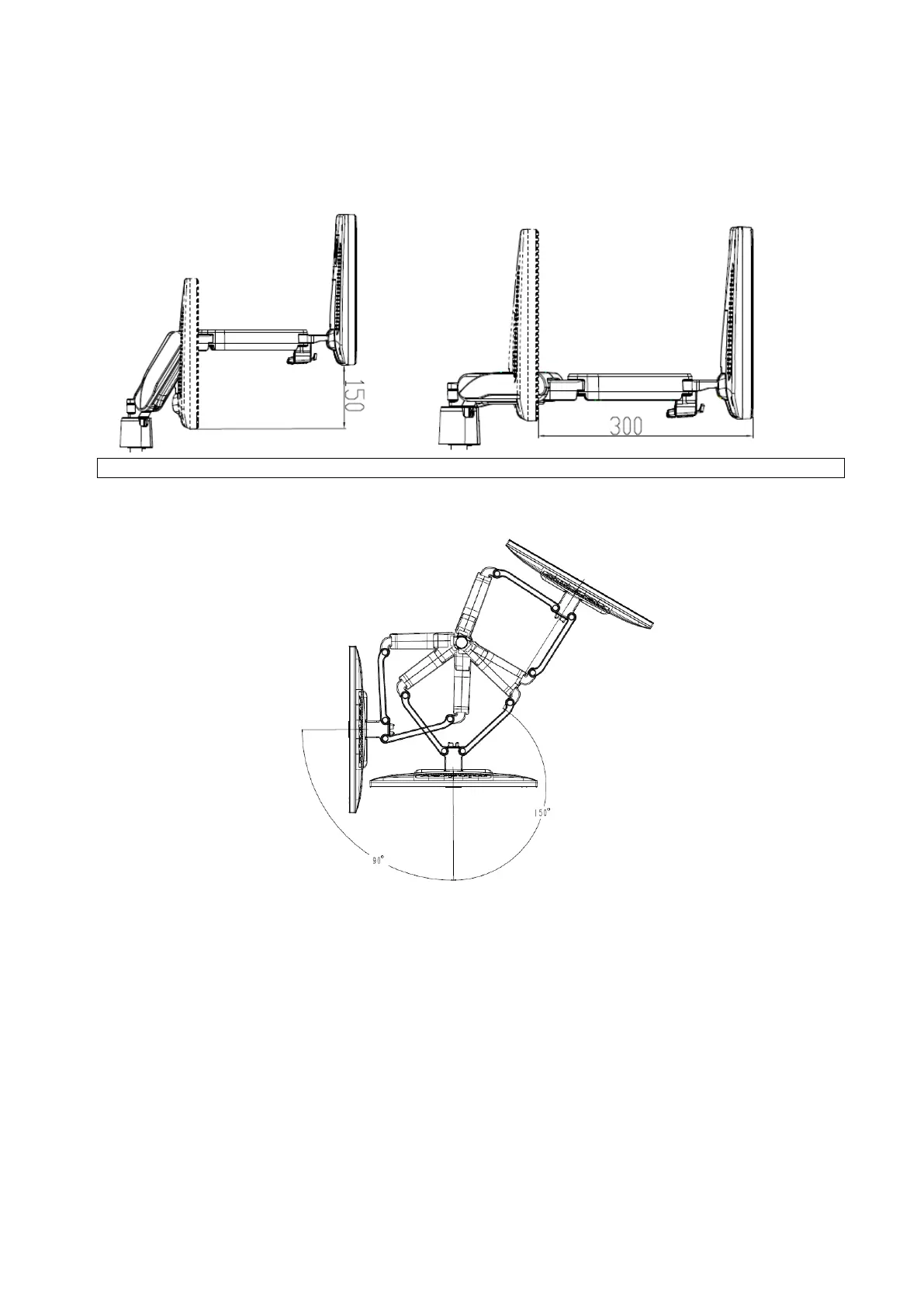

Height and displacement adjustment
Move the monitor support arm up or down to adjust the height, back and forth to adjust the
displacement.
Take care not to trap your hands when adjusting the monitor up and down.
Rotate the monitor
The monitor can be rotated 90° to the left and 150° to the right along with the supporting arm.
Tilt the monitor
When positioned vertically, the monitor can be tilted 20° backward and can be tilted forward to a
horizontal position. When transporting or moving the system, keep the monitor in the horizontal
position, as shown below:
