Mindray Resona I9 User Manual

3-18 System Preparation
Operation area Operations
1
Flick the edge downwards to enter the mapping mode.
2 Sweep to right to open the menus under the mapping mode.
3
The mapping menu, and toolbar are displayed. It is available to
perform the image adjustment, measures, image review, etc. For
details, see Chapter 5.1.2 Image Adjustment.
Under mapping or non-mapping mode, you can do fast operation
using the two-finger gesture according to the gesture hints
on the bottom-left of the screen. See Chapter “12.1.9 Gesture” for
details.
4 Flick the edge upwards to exit.
 Enter the mapping mode

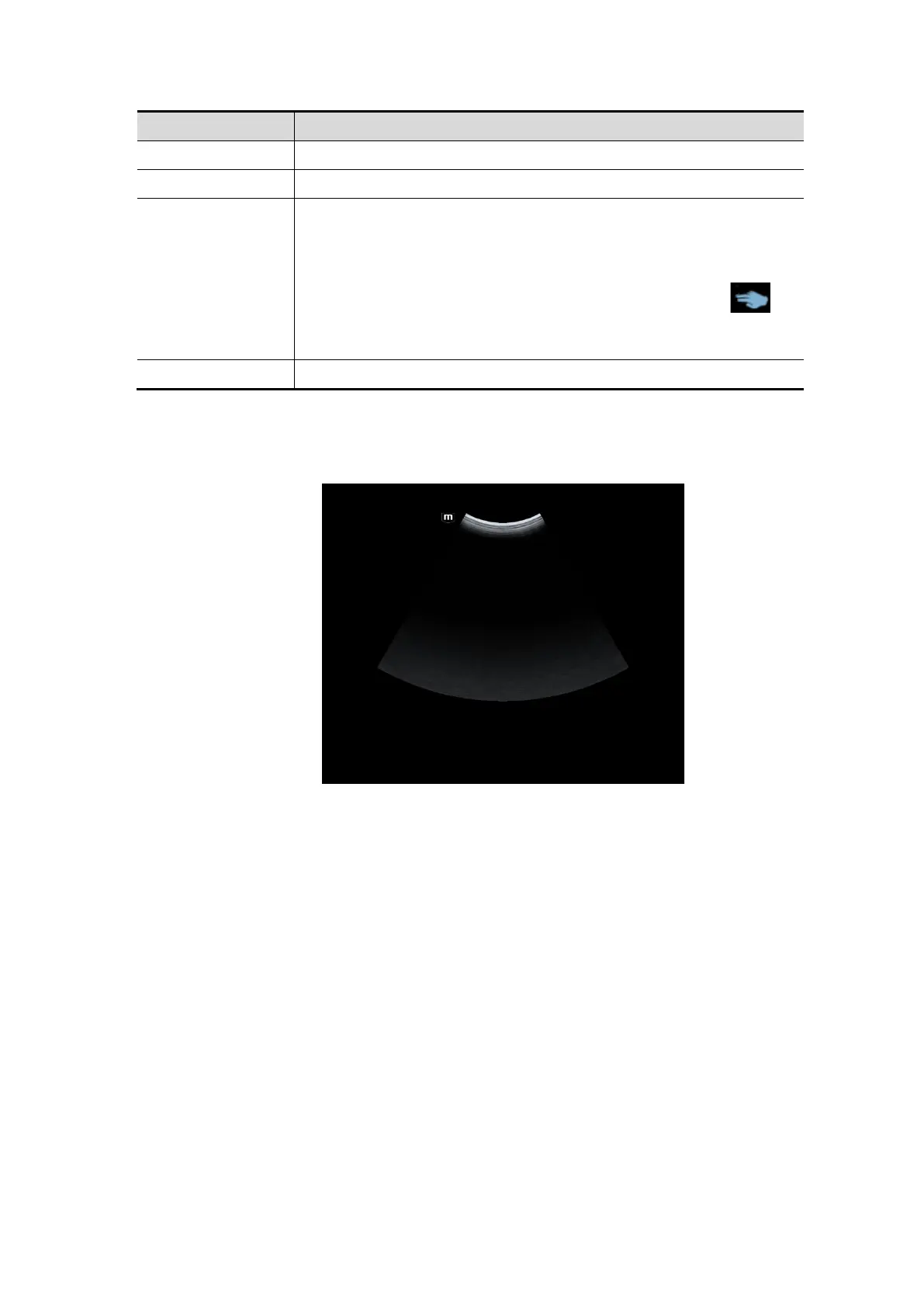

Flip the touch screen from top to bottom (area 1). The image on the control screen maps on
the touch screen. The mapping mode appears. See the figure below.
Tips: if there is a dialog box in the screen, the mapping mode is unavailable.
 Mapping menu operations
Swipe the touch screen from left to right (area 2) under the mapping mode. The mapping
menu appears on the touch screen. See the figure below: Tap or sweep right or left to adjust
the image parameter, measures, etc. See Chapter 5.1.2 Image Adjustment for details.
Tap the blank area on the touch screen. The menu of the mapping mode hides.

Mindray Resona I9 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
System Type	Ultrasound System
Touchscreen	Yes
Imaging Modes	Color Doppler, Power Doppler
Advanced Imaging	V Flow
Connectivity	DICOM, USB, HDMI, Ethernet
Probes	Convex, Linear, Phased Array, Volume
Portability	Cart-based
Storage Temperature	-20°C to 55°C
Humidity Range	30% to 80% (non-condensing)
Display	23.8-inch high-resolution LED monitor
Transducer Ports	4
