Mindray Resona R9 Exp Service Manual

9-16 Structure and Assembly/Disassembly

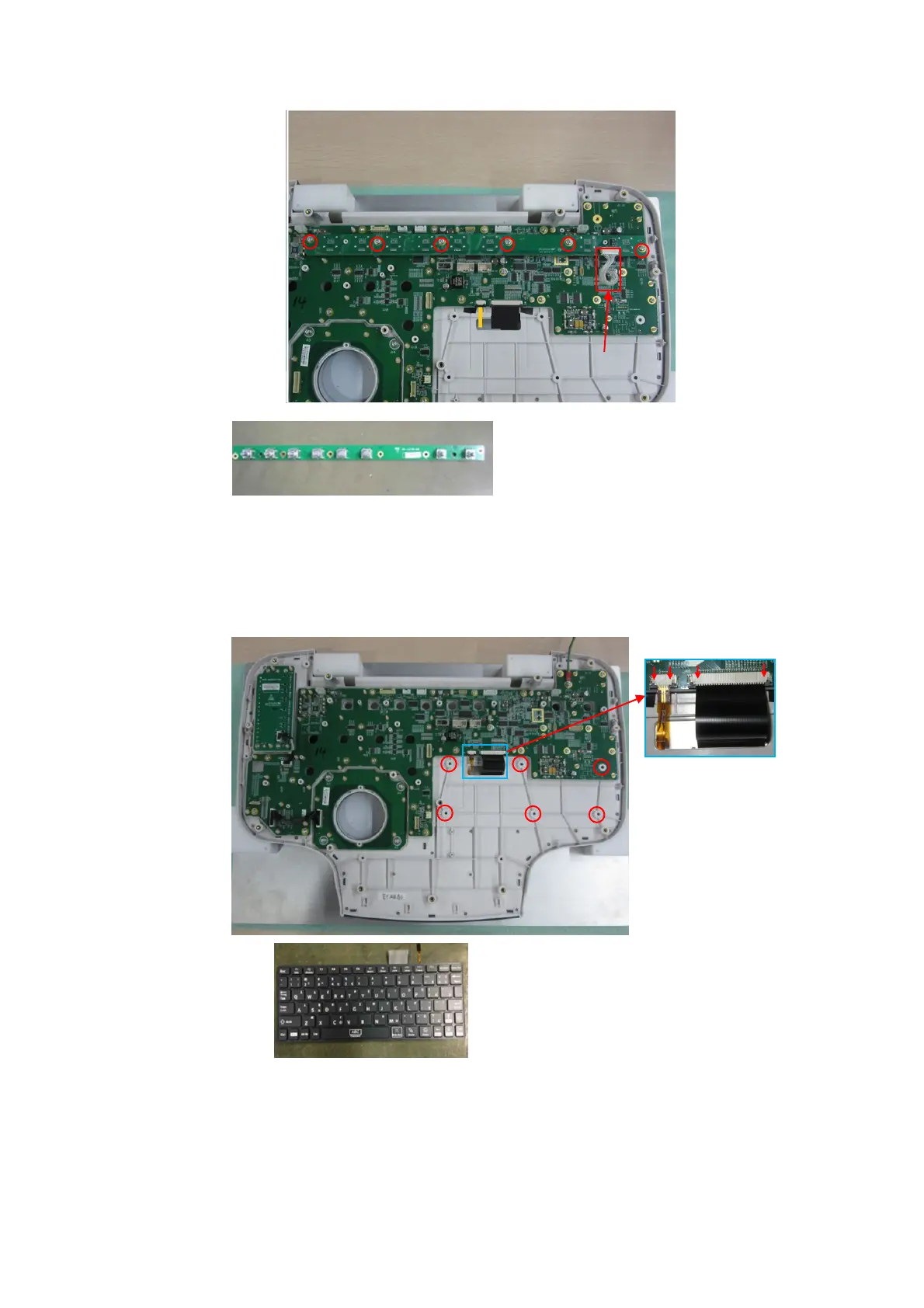

9.3.6.9 Keypad
1. Refer to 9.3.6 Control Panel Assembly for details.
2. Wear the anti-electrostatic glove. Push the clip of the keypad out towards the arrow’s direction,
and pull the wire out. Unscrew 6 M3 X 8 cross panhead screws from the control panel
assembly with screwdriver (M3, M4) to remove the keypad.
9.3.6.10 TGC Board
1. Refer to 9.3.6 Control Panel Assembly for details.
S
mall keyboard (FRU)
Signal control wire of multi-functional encoder board
General encoder board (FRU)
