Mindray Resona R9 Exp Service Manual

Structure and Assembly/Disassembly 9-41
9.3.18 Main Unit Right Cover Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.16 for details.

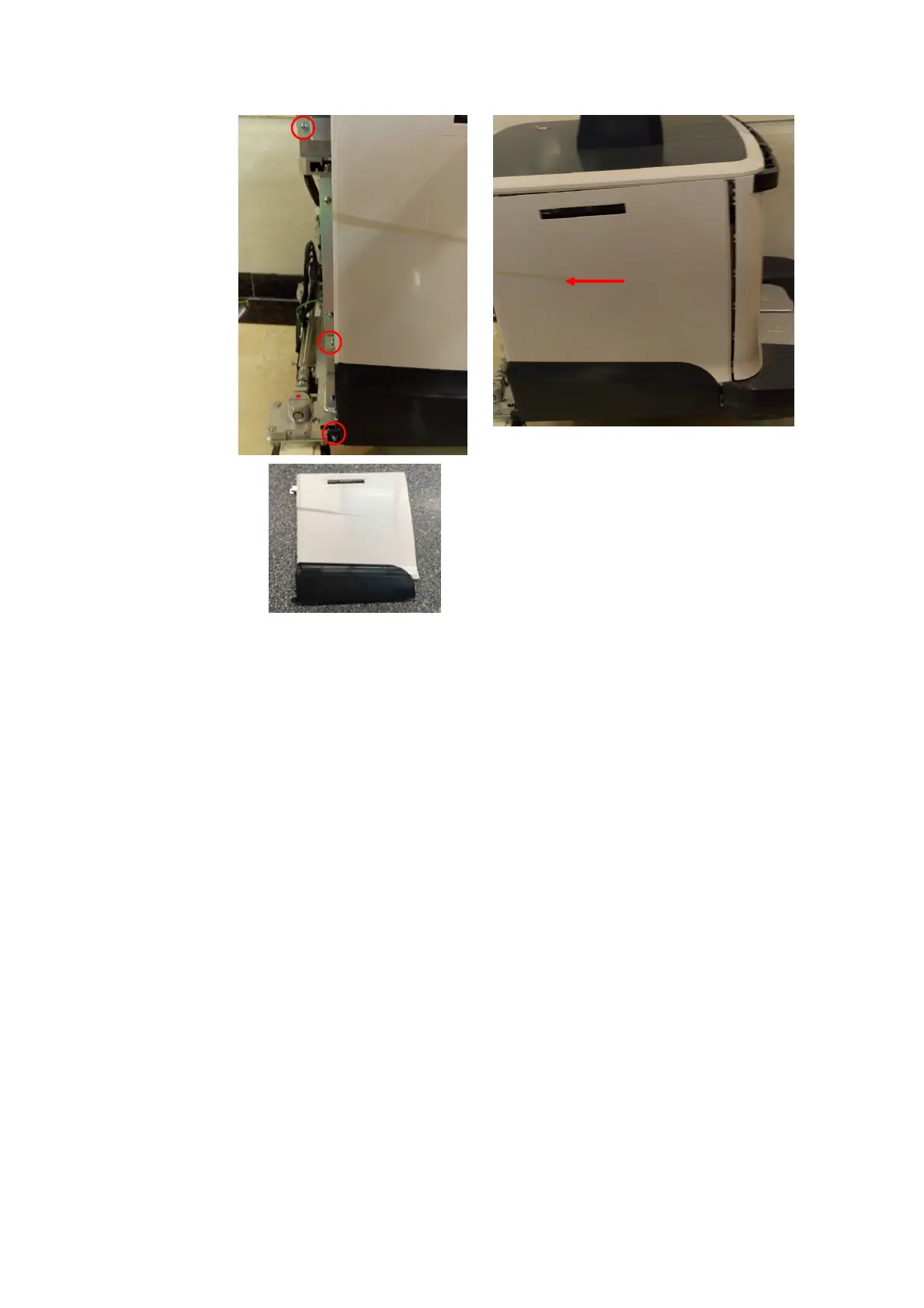

2. Unscrew 3 M4 X 12 cross panhead screws on the right cover with screwdriver (M3, M4) to
remove the right cover of the main unit.
Main unit left cover assembly

Mindray Resona R9 Exp Specifications

General

Type	Ultrasound System
Probes	Convex, Linear, Phased Array
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Advanced Imaging	3D/4D imaging, Contrast Enhanced Ultrasound (CEUS)
Connectivity	DICOM, Ethernet, USB
Portability	Mobile system with wheels
