3-26 System Installation

3.7.3 System Preset

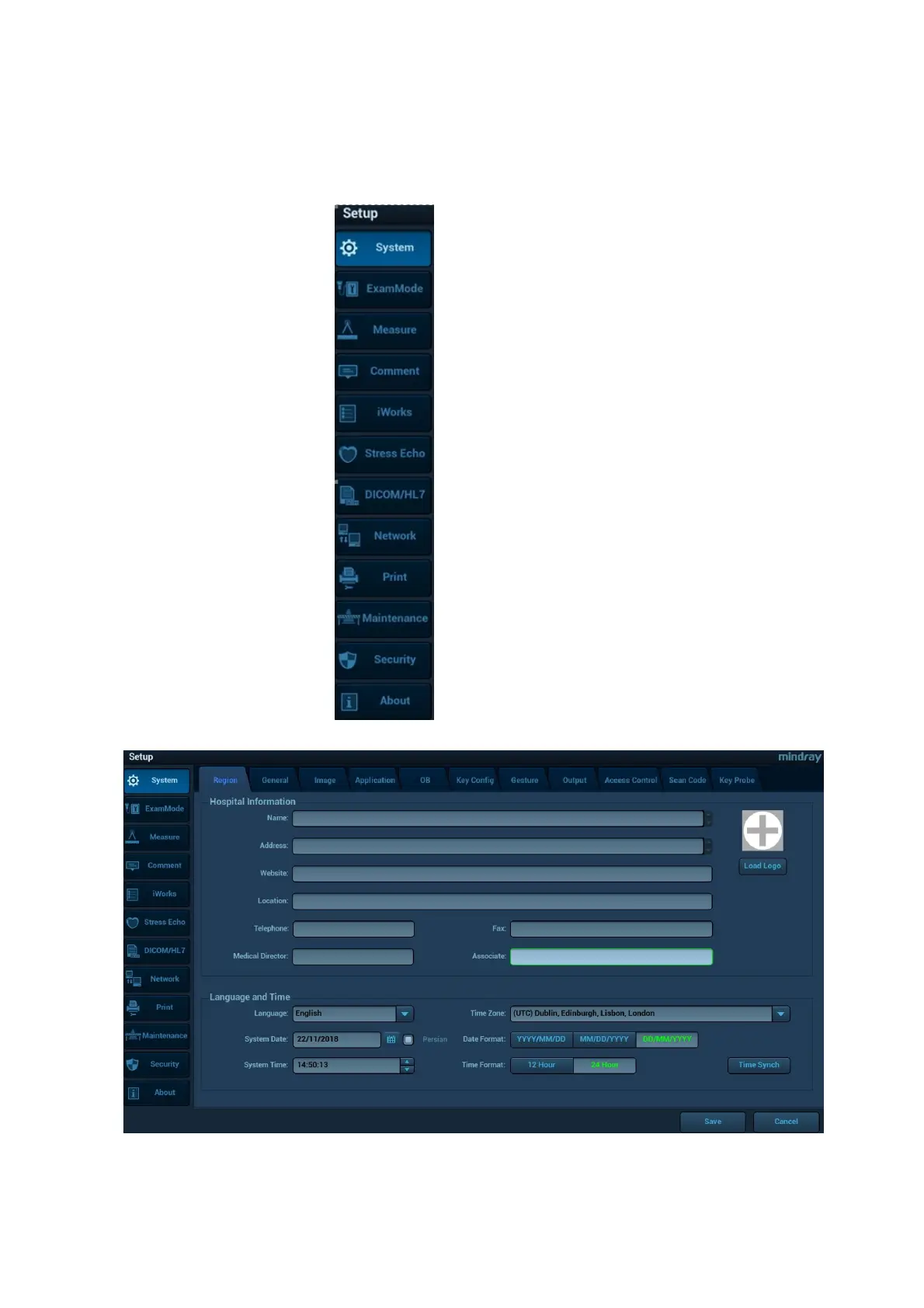

1. Press <F10> on the keyboard to open the Setup menu.

2. The system displays the System Preset screen.

The following settings can be performed on the System Preset screen.
