Mindray Resona R9 Exp Service Manual

Structure and Assembly/Disassembly 9-39

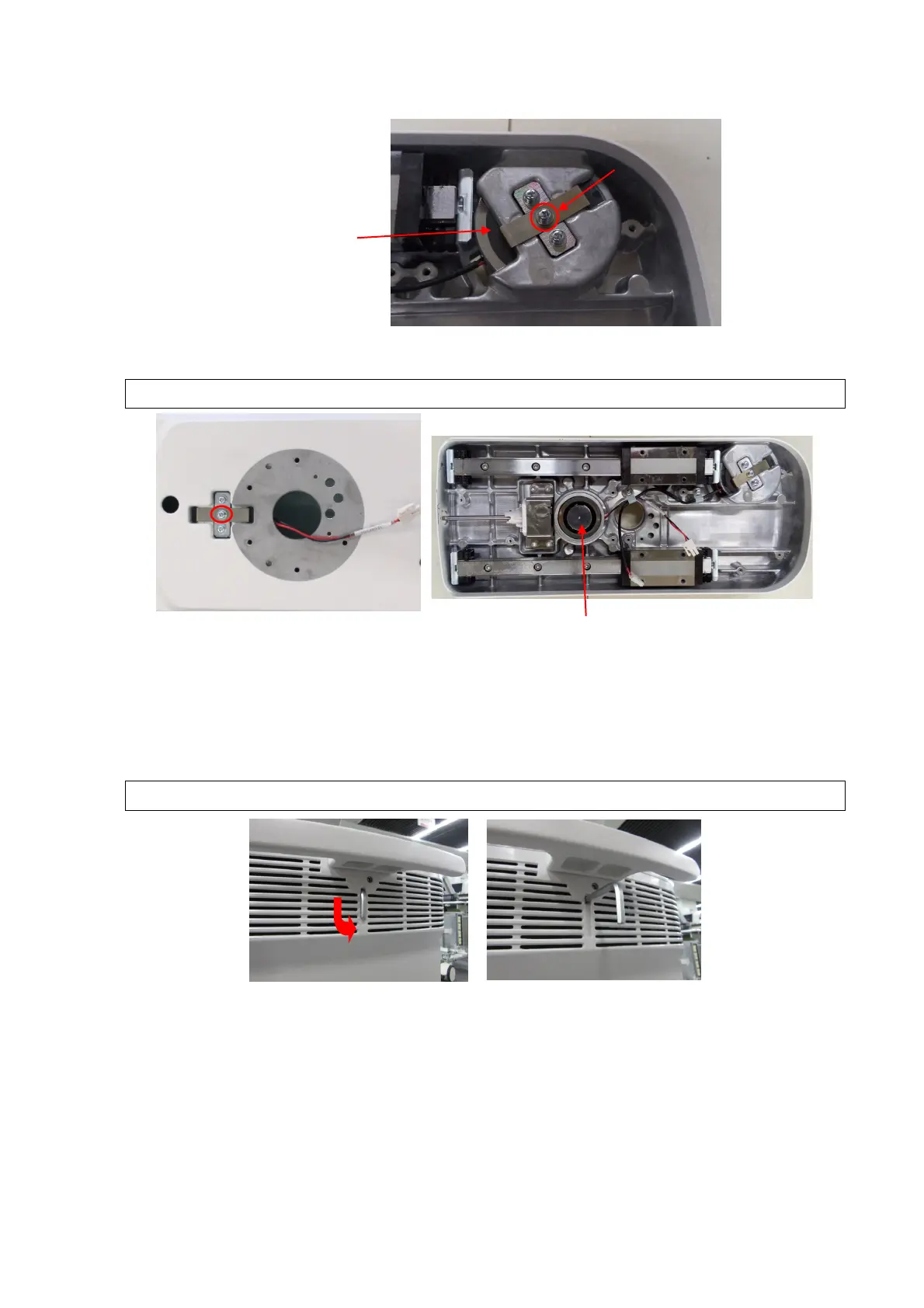

5. Unscrew 1 M4 X 12 cross panhead screw with the screwdriver (M3, M4) to remove the 75 kgf
magnetic navigation plate.
Note:
The plate spring should face the magnet when installing the electrical magnet.
9.3.16 Main Unit Rear Cover Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. Push the inner hexagon spanner towards the arrow’s direction to pull it out.
Note:
Do not pull out the inner hexagon spanner directly because of the strength.
2. Unscrew 2 screw pads B and 2 screw pads C from the main unit back cover. Unscrew 4 M4 X
12 cross panhead screws from the back cover of the main unit with the screwdriver (M3, M4) to
remove the back cover gently (FRU).
Electromagnet 75 kgf
Plate spring
Electromagnet
120kgf
