Mindray Resona R9 Exp - HDD Assembly

To Next Page

To Previous Page

Structure and Assembly/Disassembly 9-69

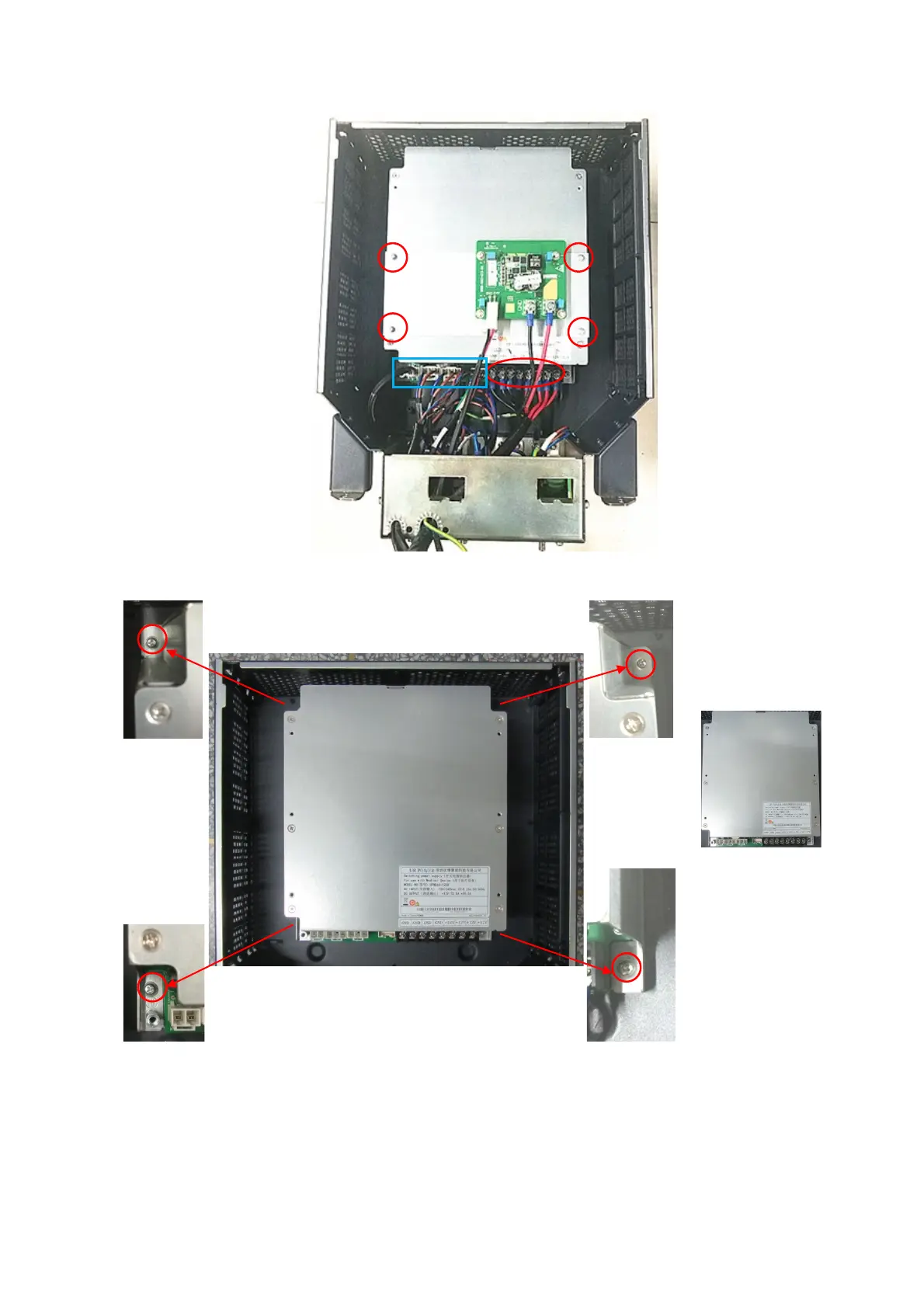

3. Unscrew four M3X8 cross panhead screws from AC Power assembly with the screwdriver (M3,

M4) to remove AC power assembly (FRU).

9.3.32 HDD Assembly

The disassembly tool: cross-headed screwdriver (M3, M4).

AC power

assembly (UR

POWER/FRU)
