Mindray Resona R9 Exp Service Manual

2-4 Specifications

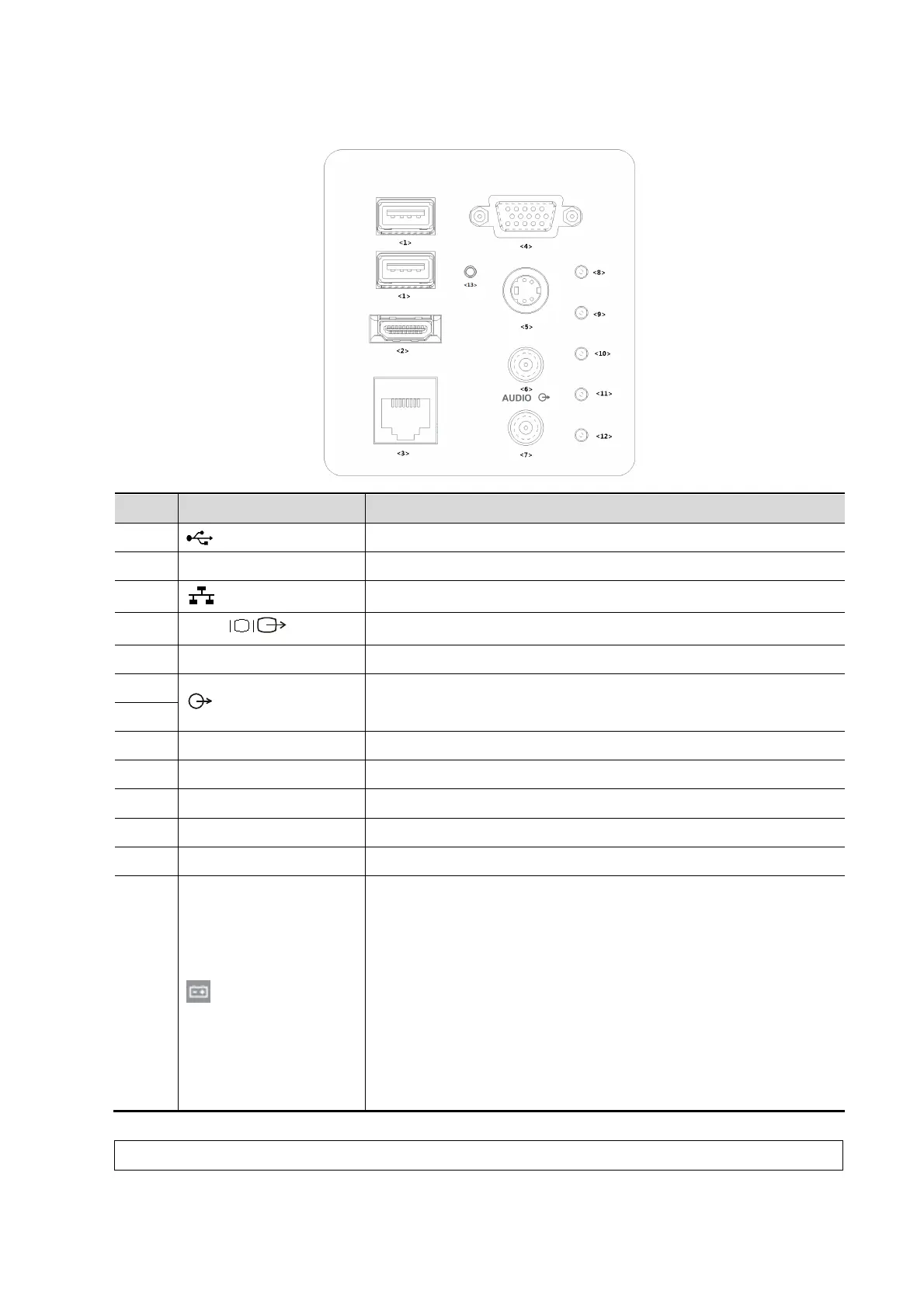

2.1.2.1 I/O panel
No.
Symbol
Function
<1>
USB ports.
<2> HDMI High definition multimedia interface.
<3>
Network port.
<4>
VGA
VGA signal output.
<5> S-Video Used for separate video output.
<6>
Audio signal output port, left channel.
Audio signal output port, right channel.
<7>
<8>
/
12V power indicator
<9> / 5V power indicator
<10>
/
3.3V power indicator
<11> / LVDS_OK indicator
<12>
/
PHV protection indicator (reserved)
<13>
Battery status indicator.
 Charging status:
It illuminates in green when batteries are charged fully.
 Discharging status:
It illuminates in green color when the power of the batteries is
more than 20%;
It blinks in orange color when the power of the batteries is lower
than 20%.
It blinks quickly in orange when the power of the batteries is
lower than 5%.
NOTE:
The S-VIDEO port performs better with analog video printing.
