2-6 Specifications

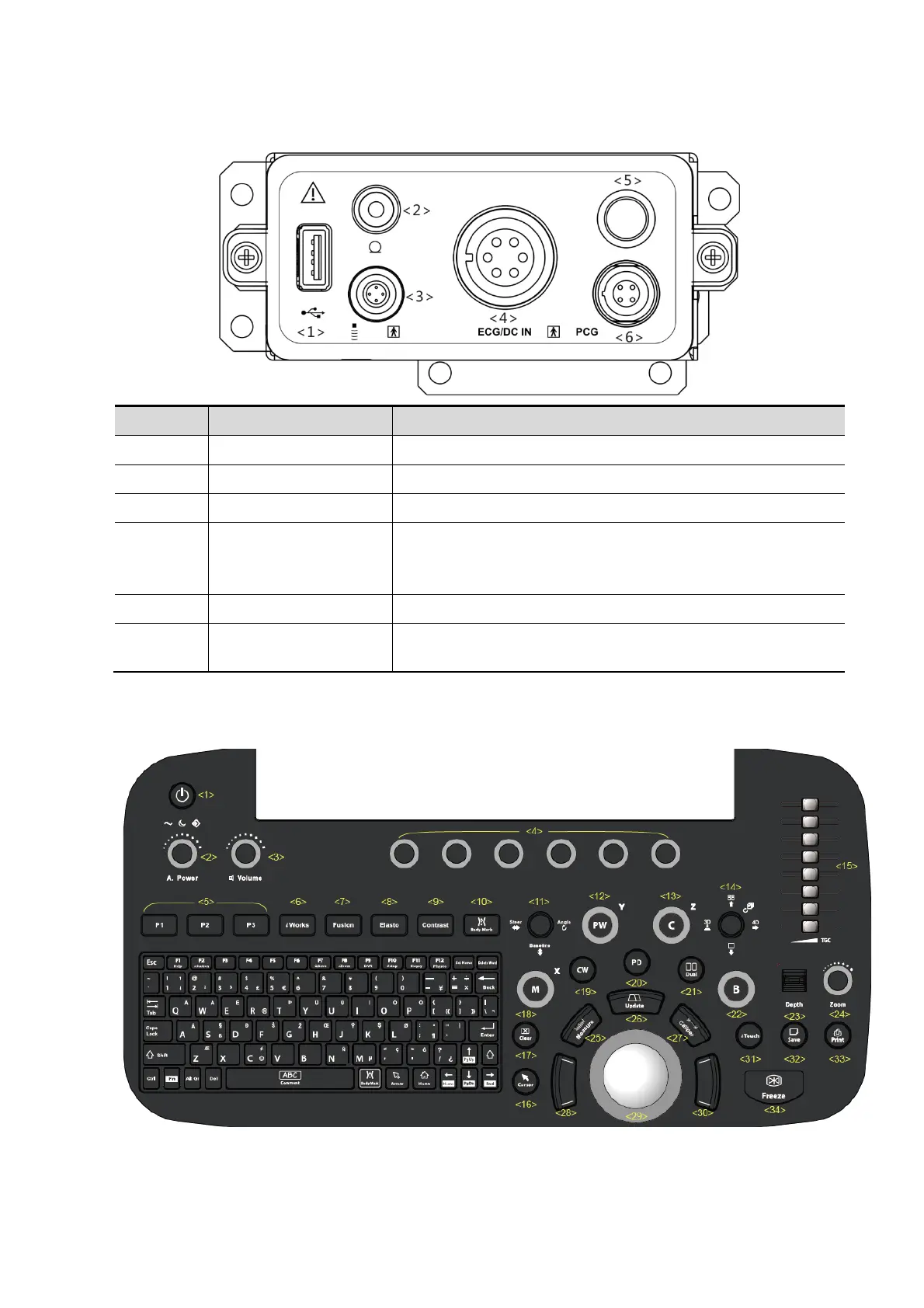

2.1.2.3 Physio Panel
2.1.2.4 Control Panel
No.
Name
Function
<1> USB port Connects USB devices.
<2>
MIC interface
Microphone input
<3> Pencil probe port Used for connecting a pencil probe.
<4>
ECG lead signal input
port / external ECG
signal input port
Connects to ECG leads, to directly obtain the ECG signals of
the patient.
Connects the signal output port of ECG monitoring device.
<5>
Reserved port
Reserved feature.
<6> PCG signal input port
Connects to PCG transducer, to directly obtain the PCG
signals of the patient.
