Mindray Resona R9 Exp Service Manual

Structure and Assembly/Disassembly 9-79
9.3.38.2 Back Rod of the Brake Pedal
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.16 for details.

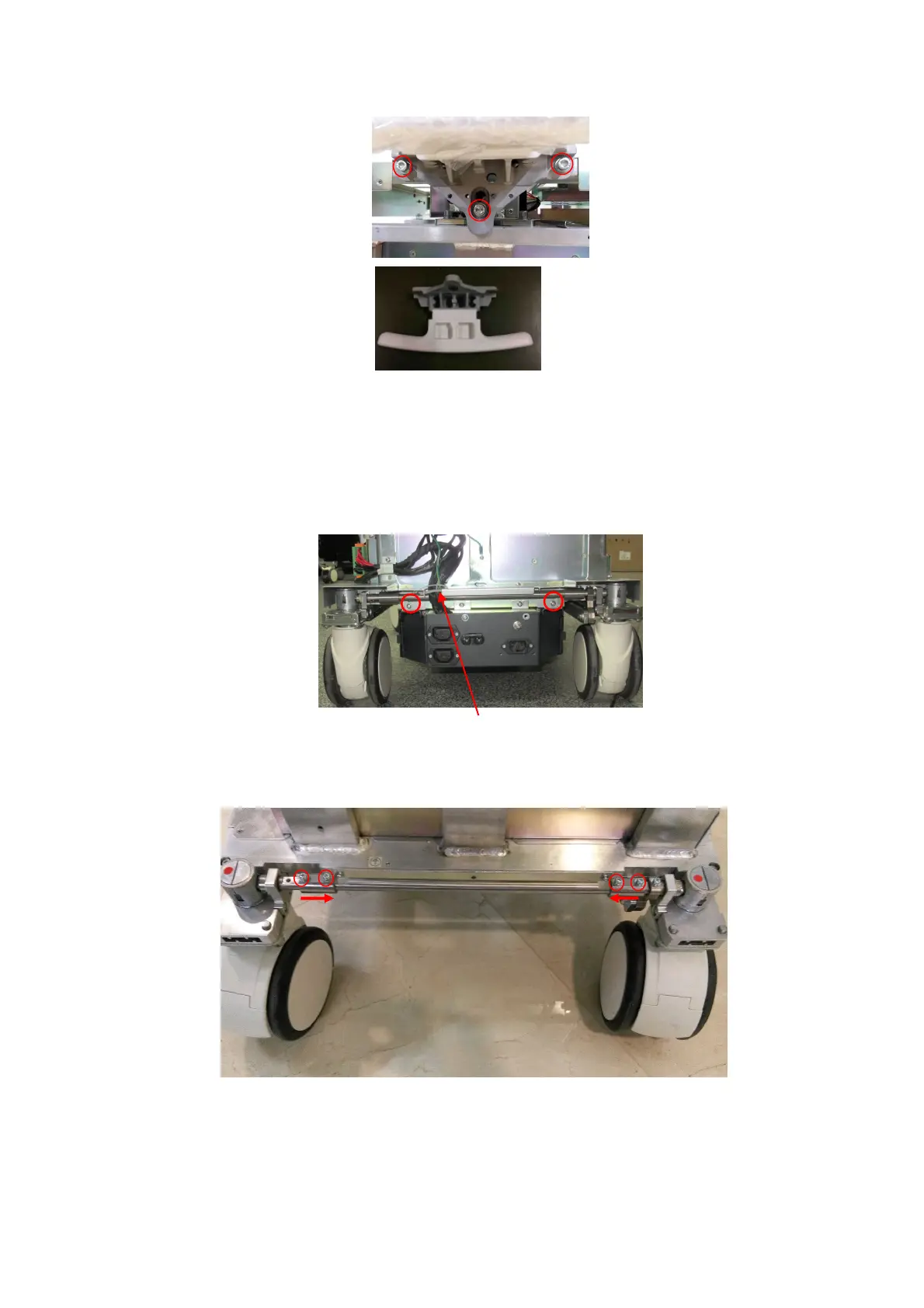

2. Cut off CHS-4X150 cable tie fastening protective shield with diagonal cutting pliers, then
unscrew 2 M4 X10 inner hex head screws (with elastic washers) with inner hexagonal wrench
(M4) to take off protective shield.
3. Unscrew 4 M4 X 12 cross panhead screws with the screwdriver (M3, M4) to push the sleeve
towards the arrow’s direction, and then remove the sleeve and the back rod of the brake pedal.
9.3.38.3 Left/Right Brake Rod Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex spanner (M5).
1. See 9.3.16, 9.3.17, 9.3.18, 9.3.19 and 9.3.23 for details.
CHS
-4X150 cable tie
B
ack handle of the
main unit
