Mindray VS-800 Service Manual

Principles of Operation
2-14
NIBP SIC33209 write software of 630D blood
pressure pump
630D-30-09112
MINDRAY
SpO
2
S1C33209 write software of the SpO
2
board
9006-30-33911
MASIMO
SpO
2
MASIMO M7 SpO
2
software
Nellcor SpO
2
NELLCOR MP506 SpO
2
software
(See Note 1)
TEMP
Predictive TEMP module software
G-M09A-30-62120
Module
software
Recorder 33209 write software of the MCU TR6C-30-16656
Note 1: Those software components are external, namely, they are not developed by
Mindray.
2.3.2 System Software
2.3.2.1 General

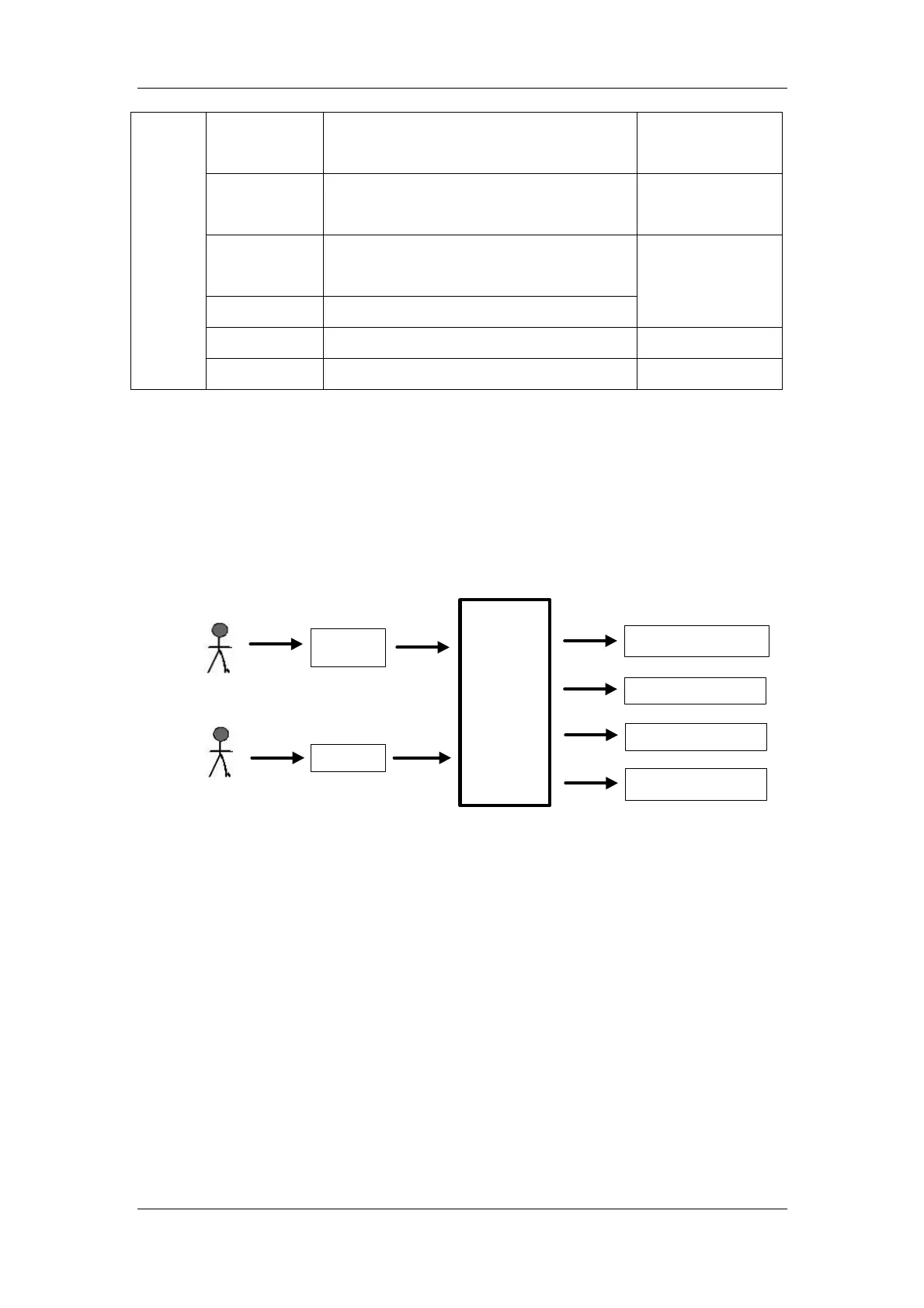

The functions of the system software are shown in Figure 2-9:
Patient
Parameter
module
System software
PC
Keypad
LCD
Thermal recorder
Nurse
LED
Figure 9 Function of system software
The VS-800 software provides the following functions:
1 Transmitting/receiving data to/from modules;
2 Displaying parameters, plethysmograms and trend data;
3 Rising alarms;
4 Controlling the recorder;
5 Reviewing patient history data;
6 Network function;
7 NURSECALL function;
8 Power management;
